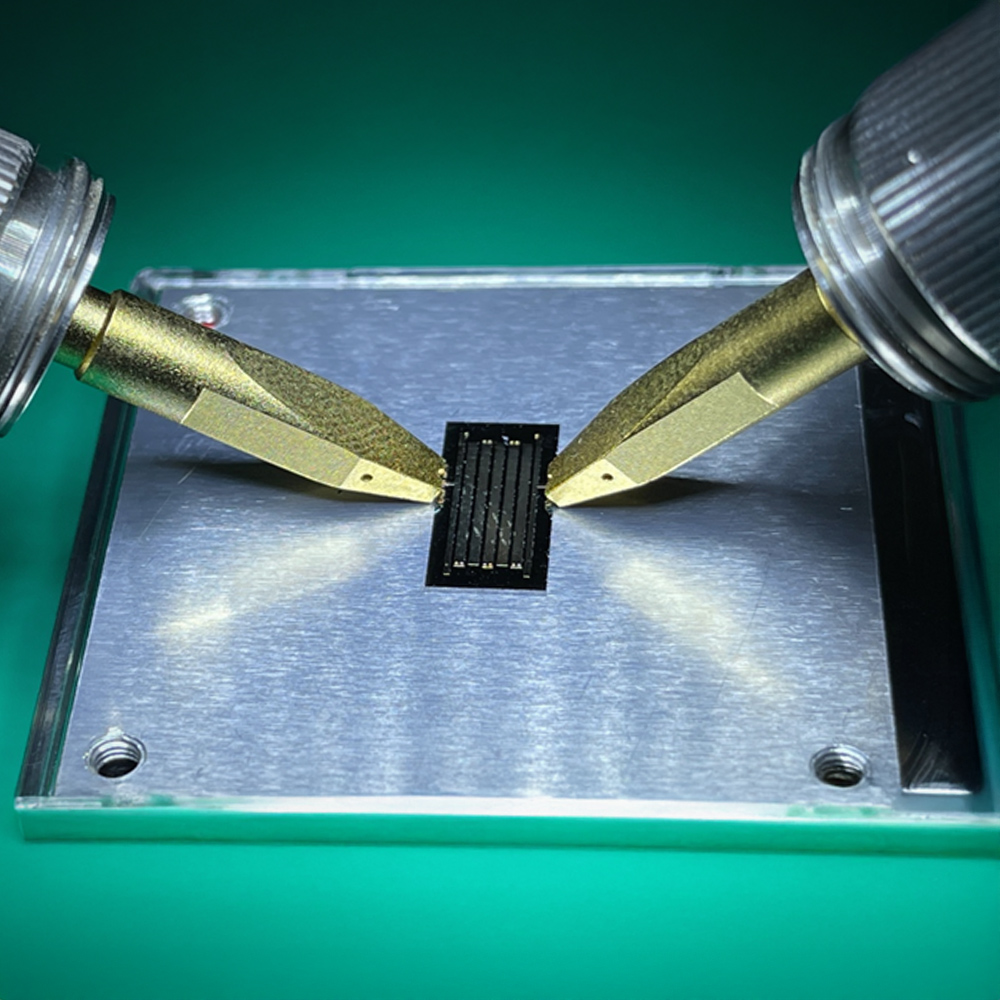

MEMS RF FILTER
Applications
- Avionics
- Military
- Car radar
- Transmitters and receivers
- 5G and next generation
Features
- Precision MEMS process
- High frequency up to 500GHz
- Silicon substrate
- Au Wire bonding, QFN Package
- RoHs Compliant
Typical Performance Characteristics
- Storage Temperature: -55±125Deg.C
- Operating Temperature: -55±85DegC
- Power Range: +30dBm max
| No | Center Feq. | Part No | Type | Impedance | Band Width | Insertion Loss | Return Loss | Attenuation | Dimention | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1725MHz | MMBP-C1725 | BPF | 50Ohm | 450MHz | 2.7dB | 15.0dB | 30dB min @ DC~1GHz 30dB min @ 2.25GHz | 7.5X20.0X0.5mm | ||
| 3250MHz | MMBP-C3250 | BPF | 50Ohm | 1400MHz | 3.0dB | 15.0dB | 30dB min @ DC~2GHz 30dB min @ 4.5GHz | 7.67X11.0X0.5mm | ||
| 4000MHz | MMBP-C4000_2000M-A-R2 | BPF | 50Ohm | 2000MHz | 2.2dB | 12dB | 30dB min @ DC~2GHz 30dB min @ 7.0GHz | 7.5X7.4X0.4mm | ||
| 4000MHz | MMBP-C4000_4000M | BPF | 50Ohm | 4000MHz | 4.5dB | 7.5dB | 30dB min @ DC~5GHz 30dB min @ 11.0GHz | 7.5x20x0.5mm | ||
| 8000MHz | MMBP-C8000 | BPF | 50Ohm | 4000MHz | 2.0dB | 12.5dB | 40dB, DC~@7.5GHz 30dB, @10.5GHz | 13.65X5.0X0.5mm | ||
| 9250MHz | MMBP-C9250 | BPF | 50Ohm | 3400MHz | 3.0dB | 12.0dB | 20.0dB, DC~@9.0GHz 40dB, @15.0GHz | 11.7X4.0X0.5mm | ||
| 12000MHz | MMBP-C12000 | BPF | 50Ohm | 4000MHz | 2.0dB | 14.0dB | 20.0dB, DC~@9.0GHz 40dB, @15.0GHz | 11.7X4.0X0.5mm |
