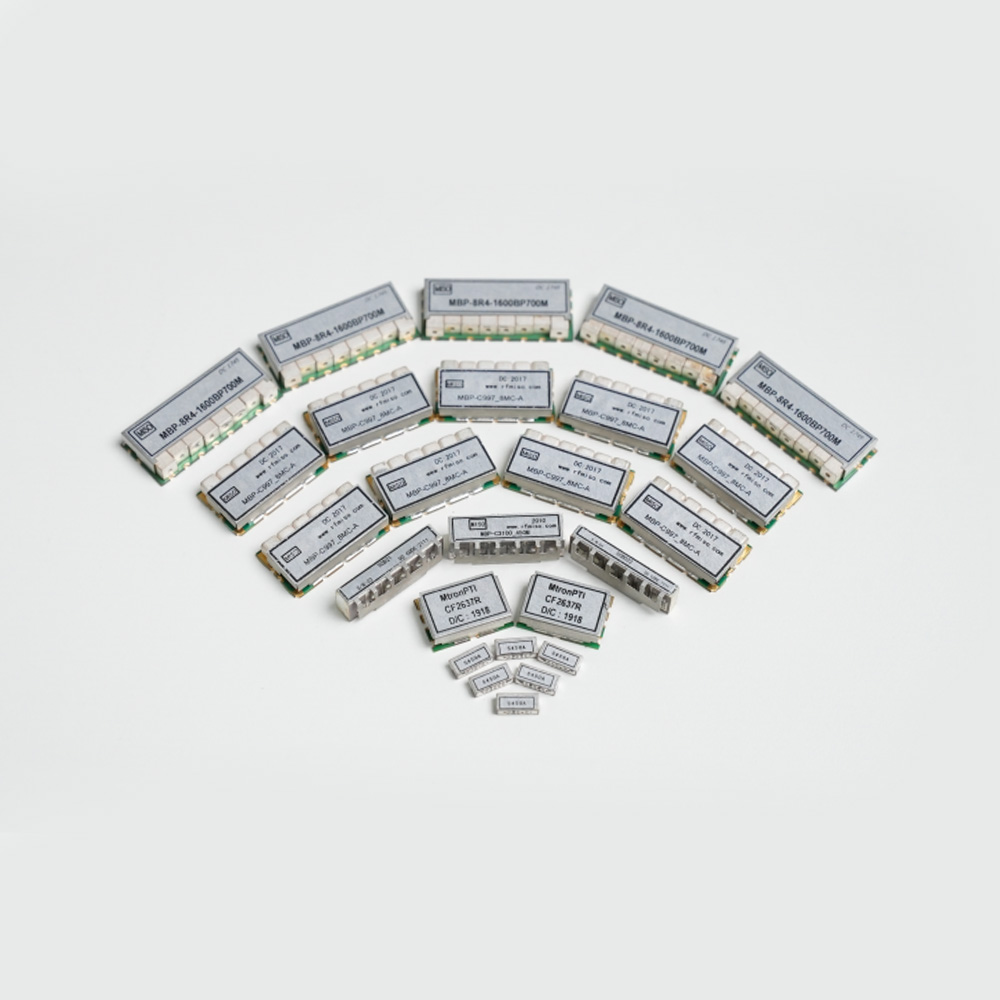

Ceramic Filter

Applications

  • Cellular base station Transceivers
  • Satellite transceivers
  • GPS and car navigation equipment
  • Land mobile radios
  • CATV
  • Modems
  • Wireless LANS
  • Military

Features

  • High Q factor
  • Low insertion loss
  • Wide frequency and mechanical stability
  • Notch filters available
  • Surface mount and thru-hole mount
  • 50 Ohm standard, 75 Ohm impedance available
  • Custom design available
  • Available in tape and reel packing
  • Sealed packages available
  • Compliant to MIL & RoHS Specs

Typical Performance Characteristics

  • Temperature Range: -55 to 85℃
  • Temperature Stability: ±PPM/℃
No Center Feq.Part NoFilter TypeTypeImpedanceBand WidthInsertion LossReturn LossAttenuationDimentionpdf
25352535/2657MHzMDP-C2535-C2657_70MM-A-R0DuplexerSMD/DPX50Ohm70MHz2.5dB15dB61dB min @ Other Port63.0 X 10.0 X 10.2mmpdf
25752575/2677MHzMDP-C2575_C2677-30MM-A-R0DiplexerSMD/DPX50Ohm30/25MHz1.5dB15dB60dB min @ Others Port42.0 X 17.0 X 9.5mmpdf
718718/773MHzMDP-C718-C773_30MC-A-R0DuplexerSMD/DPX50Ohm30MHz2.0dB17dB50dB min @ Others Port42.0 X 17.0 X 9.0mmpdf
725725.5/780.5MHzMDP-C725.5-C780.5_45MM-A-R0DuplexerSMD/DPX50Ohm45MHz1.5dB15dB40dB min @ Others Port43.5 X 19.5 X 9.5mmpdf
750750/915MHzMDP-C750-C915_100MM-A-R1DuplexerSMD/DPX50Ohm100/50MHz2.0dB15dB50dB min @ Others Port64.0 X 25.0 X 14.5mmpdf
806806/847MHzMDP-C806-C847_30MC-A-R0DuplexerSMD/DPX50Ohm30MHz3.4dB15dB50dB min @ Others Port43.5 X 17.0 X 9.0mmpdf
835835/926MHzMDP-C835-C926_40MM-A-R0DuplexerSMD/DPX50Ohm40/12MHz1.8dB15dB45dB min @ Others Port63.0 X 15.0 X 10.2mmpdf
835835/926MHzMDP-C835-C926_40MM-B-R0DuplexerSMD/DPX50Ohm40/12MHz1.8dB15dB45dB min @ Others Port64.0 X 25.0 X 14.5mmpdf
847847/806MHzMDP-C847-C806_30MM-A-R0DuplexerSMD/DPX50Ohm30MHz3.3dB15dB60dB min @ Others Port63.0 X 15.5 X 10.2mmpdf
897897.5/942.5MHzMDP-C897.5-C942.5_35MC-A-R0DuplexerSMD/DPX50Ohm35MHz3.0dB15dB55dB min @ Others Port42.0 X 17.0 X 9.0mmpdf
897897.5/942.5MHzMDP-C897-C942_35MM-A-R0DuplexerSMD/DPX50Ohm35MHz3.0dB14dB55dB min @ Others Port63.0 X 14.5 X 10.2mmpdf
12271227/1575MHzMDPX-4R6-1227/1575BP20BDuplexerSMD/DPX50Ohm20MHz1.0dB15dB40dB min @ Others Port26.0 X 16.25 X 7.5mmpdf
12071207/1565MHzMDPX-6R11-1207/1565BP85/81MDiplexerSMD/DPX50Ohm85/81MHz2.5dB15dB40dB min @ Others Port70.0 X 15.0 X 7.5mmpdf
12071207/1565MHzMDPX-8R11-1207/1565BP85/81MDiplexerSMD/DPX50Ohm85/81MHz1.2dB15dB40dB min @ Others Port95.0 X 25.0 X 10.2mmpdf
15751575/1278MHzMMDP-1575-1278BP40-45MDuplexerSMD/DPX50Ohm404/45MHz2.2dB14dB50dB min @ Others Port34x13x7mmpdf
17471747.5MHzMMP4D1747.5BP75MBand Pass FilterSMD50Ohm75MHz2.4dB15dB20dB@1805-1880MHz
33dB@1535-1610MHz		13.5x12.5x6 mmpdf
22002200MHzMMP4J2200BP440C_R01Band Pass FilterSMD50Ohm440MHz1.0dB15dB40dB@1800MHz
40dB@2600MHz		18.6x7.1x4.9mmpdf
25352535MHzMMP6D2535BP70MBand Pass FilterSMD50Ohm70MHz2.5dB15dB35dB@DC-1956MHz
30dB@2400MHz
30dB@2620-4000MHz		13x12x6.0mmpdf
25752575/2680MHzMMPX-2575-2680BP30-20MDuplexerSMD/DPX50Ohm30/20MHz1.3dB15dB45dB min @ Others Port42x14x9.5mmpdf
915915.5MHzMBP-C915.5_39MM-A-R0Band Pass FilterSMD50Ohm39MHz2.0dB15dB50dB min @ 870MHz
40dB min @ 1300MHz		20.0 X 10.0 X 9.2mmpdf
947947.5MHzMBP-C947.5_25MM-A-R0Band Pass FilterSMD50Ohm25MHz3.0dB18dB45dB min @ 870MHz
15dB min @ 915MHz
12dB min @ 980MHz
28dB min @ 1025MHz		8.3 X 8.2 X 3.0mmpdf
94759475MHzMBP-C9475_1.05GM-ABand Pass FilterSMD50Ohm1050MHz4.0dB15dB40dBc min @ DC~8500MHz
35dBc min @ 10450~16000MHz		18x4.8x4.2mmpdf
975975MHzMBP-C975_150MC-A-R0Band Pass FilterSMD50Ohm150MHz2.0dB15dB110dBc min @ 600MHz
56dBc min @ 700MHz
51dBc min @ 1200MHz
70dBc min @ 1400MHz		42.0 X 14.5 X 6.5mmpdf
12301230/1575MHzMDP-1230-1575M_70MC-ADuplexerSMD/DPX50Ohm140/100MHz0.7dB15dB10dB min @ Others Port17.5 X 10.2 X 6.05mmpdf
15751575/1227MHzMDP-3R3-1575/1227BP24MDiplexerSMD/DPX50Ohm24MHz1.0dB15dB40dB min @ Others Port20.0 X 10.0 X 3.6mmpdf
15751575/1227MHzMDP-3R3-1575/1227BP75MDiplexerSMD/DPX50Ohm75MHz1.0dB15dB20dB min @ Others Port20.0 X 10.0 X 3.6mmpdf
15751575/1227MHzMDP-3R4-1575/1227BP75MDiplexerSMD/DPX50Ohm75MHz1.0dB15dB20dB min @ Others Port14.0 X 11.0 X 4.0mmpdf
15751575/1227MHzMDP-6R3-1575/1227BP24MDiplexerSMD/DPX50Ohm24MHz1.0dB15dB40dB min @ Others Port20.0 X 11.0 X 4.0mmpdf
10301030/1090MHzMDP-C1030/C1090_20MM-L-R0DuplexerSMD/DPX50Ohm20MHz3.0dB16dB50dBc min @ Others Port32.0 X 26.8 X 7.4mmpdf
12201220.5/1594MHzMDP-C1220.5-C1594_69MM-B-R0-ADuplexerSMD/DPX50Ohm69/122MHz2.5dB15dB50dB min @ Others Port19.8 X 10.2 X 4.5mmpdf
12201220.5/1594MHzMDP-C1220.5-C1594_69MM-B-R0-BDuplexerSMD/DPX50Ohm69/122MHz3.0dB15dB50dB min @ Others Port20.0 X 17.0 X 5.5mmpdf
12201220.5/1594MHzMDP-C1220.5-C1594_69MM-C-R0DuplexerSMD/DPX50Ohm69/122MHz3.0dB15dB30dB min @ Others Port15.0 X 14.0 X 5.5mmpdf
12281228/1584.5MHzMDP-C1228-C1584.5_104M_51MC-A-R0DuplexerSMD/DPX50Ohm104/51MHz1.0dB15dB30dB Min. @ Others Port24.0 X 10.3 X 6.0mmpdf
17471747/1842MHzMDP-C1747-C1842_75MM-A-R0-ADuplexerSMD/DPX50Ohm75MHz4.5dB15dB50dB min @ Others Port43.5 X 13.0 X 9.5mmpdf
17471747/1842MHzMDP-C1747-C1842_75MM-A-R0-BDuplexerSMD/DPX50Ohm75MHz3.0dB14dB50dB min @ Others Port63.0 X 10.5 X 10.2mmpdf
19501950/2140MHzMDP-C1950-C2140_60MC-A-R0DuplexerSMD/DPX50Ohm60MHz1.8dB14dB72dB min @ Others Port64.8 X 8.7 X 10.9mmpdf
19501950/2140MHzMDP-C1950-C2140_60MM-A-R0DuplexerSMD/DPX50Ohm60MHz1.5dB15dB67dB min @ Others Port63.0 X 8.0 X 10.2mmpdf
24412441.75/5787.5MHzMDP-C2441.75-C5787.5_83.5M_125MC-A-R0DuplexerSMD/DPX50Ohm83.5/125MHz1.2dB15dB30dB Min. @ Others Port20.0 X 15.0 X 4.5mmpdf
25352535/2657MHzMDP-C2535-C2655_70MC-A-R0DuplexerSMD/DPX50Ohm70MHz2.5dB15dB55dB min @ Other Port40.5 X 8.0 X 8.2mmpdf
55005500MHzMBP-C5500_50MM-A-R1Band Pass FilterSMD50Ohm50MHz2.0dB14dB30dB min @ 4500 ~ 5000MHz
45dB min @ 6000 ~ 8500MHz		10.8 X 5.5 X 5.5mmpdf
55505550MHzMBP-C5550_800MM0B-R0Band Pass FilterSMD50Ohm800MHz2.0dB14dB50dB min @ 4500MHz
50dB min @ 6500MHz		16.3 X 6.5 X 4.8mmpdf
57505750MHzMBP-C5750_500MM-A-R1Band Pass FilterSMD50Ohm500MHz2.0dB15dB60dB min @ 750~1250MHz
60dB min @ 2875~3000MHz		12.5x4.4x3mmpdf
58005800MHzMBP-C5800_200MM-A-R0Band Pass FilterSMD50Ohm200MHz1.5dB15dB60dB min @ 4300MHz
40dB min @ 5000MHz
15dB min @ 5415MHz
15dB min @ 6195MHz
30dB min @ 6600MHz		10.0 X 10.0 X 5.5mmpdf
58755875MHzMBP-C5875_250MM-A-R3Band Pass FilterSMD50Ohm250MHz2.0dB15dB60dB min @ 750~1250MHz
60dB min @ 2875~3000MHz		15.8x5x4mmpdf
59005900MHzMBP-C5900_50MM-A-R2Band Pass FilterSMD50Ohm50MHz1.5dB15dB35dBc min @ DC ~ 3000MHz
30dBc min @ 5300MHz
35dBc min @ 6500MHz
35dBc min @ 6.5 ~ 8800MHz		9.6 X 5.1 X 3.9mmpdf
60006000MHzMBP-C6000_50MM-A-R1Band Pass FilterSMD50Ohm50MHz2.5dB15dB50dB min @ DC ~ 5500MHz
30dB min @ 6500 ~ 7000MHz		10.8 X 5.5 X 5.5mmpdf
62796279MHzMBP-C6279_300MD-A-R0Band Pass FilterSMD50Ohm300MHz1.75dB15dB40dBc min @ DC ~ 5129MHz
40dBc min @ 9000 ~ 10000MHz		25.4 X 12.7 X 6.35mmpdf
68346834MHzMBP-C6834_200MB-A-R0Band Pass FilterBEAD50Ohm200MHz3.0dB14dB45dB Min. @ Fo±250MHz
50dB Min. @ Fo±300MHz		42.0 X 14.0 X 7.0mmpdf
700700MHzMBP-C700_100MC-A-R0Band Pass FilterSMD50Ohm100MHz4.0dB14dB30dB min @ 250~350MHz26x17x5mmpdf
750750MHzMBP-C750_10MM-A-R0Band Pass FilterSMD50Ohm10MHz4.0dB15dB50dB min @ DC ~ 500MHz
50dB min @ 1000MHz		10.5 X 13.3 X 5.1mmpdf
805805MHzMBP-C805_190MC-A-R0Band Pass FilterSMD50Ohm190MHz2.0dB15dB11dBc min @ 477MHz
40dBc min @ 600MHz
37dBc min @ 955MHz
70dBc min @ 1200MHz		42.0 X 14.5 X 6.5mmpdf
811811.5MHzMBP-C811.5_165MC-ABand Pass FilterSMD50Ohm165MHz2.0dB15dB30dB min @ 925MHz42.0 X 14.5 X 6.3mmpdf
81508150MHzMBP-C8150_700MB-A-R3Band Pass FilterBEAD50Ohm700MHz3.0dB15dB30dBc min @ DC ~ 5200MHz
60dBc min @ 5300 ~ 7050MHz
30dBc min @ 8800 ~ 11000MHz		25.0 X 6.0 X 10.0mmpdf
830830MHzMBP-C830_50MM-A-R0Band Pass FilterSMD50Ohm50MHz2.5dB15dB55dB min @ 760MHz
50dB min @ 900MHz		38.0 X 17.0 X 7.5mmpdf
865865MHzMBP-C865_15MC-A-R0Band Pass FilterSMD50Ohm15MHz3.93dB15dB20dB min @ 810MHz
30dB min @ 920MHz		15.5x17.69x5.08mmpdf
87688768MHzMBP-C8768_200MW-A-R1Band Pass FilterSMD50Ohm200MHz3.0dB15dB30dBc min @ DC~8000MHz
50dBc min @ 9388~10000MHz		26x6x4.5mmpdf
890890MHzMBP-C890_100MM-A-R0Band Pass FilterSMD50Ohm100MHz2.0dB14dB50dB min @ 740MHz
50dB min @ 1040MHz		15.5 X 10.0 X 5.8mmpdf
895895MHzMBP-C895_70MM-A-R0Band Pass FilterSMD50Ohm70MHz11dB15dB20dB min @ 780MHz
15dB min @ 817MHz
15dB min @ 975MHz
50dB min @ 1500MHz		10.0 X 11.3 X 5.5mmpdf
900900MHzMBP-C900_10MC-A-R0Band Pass FilterSMD50Ohm10MHz2.6dB15dB70dBc min @ 700MHz
60dBc min @ 1020 ~ 1100MHz		17.53 X 13.97 X 4.32mmpdf
409409MHzMBP-C409_4MC-A-R0Band Pass FilterSMD50Ohm4MHz5.0dB15dB40dB min @ DC ~ 380MHz
40dB min @ 440MHz
60dB min @ 800MHz		26.0 X 24.0 X 7.1mmpdf
41254125MHzMBP-C4125_125MM-A-R0Band Pass FilterSMD50Ohm125MHz1.0dB15dB40dB Min.@ DC~3900MHz
40dB Min.@ 4325MHz		13.25 X 8.0 X 4.5mmpdf
42804280MHzMBP-C4280_640MC-A-R1Band Pass FilterSMD50Ohm640MHz6.0dB12dB37dBc min @ DC ~3830MHz
40dBc min @ 3840MHz
45dBc min @ 4800MHz ~ 10GHz		32.77 X 12.7 X 7.62mmpdf
45504550MHzMBP-C4550_300MM-A-R1Band Pass FilterSMD50Ohm300MHz2.0dB15dB20dB Min. @ 4880MHz
30dB Min. @ 5000~6000MHz
20dB Min. @ 4200MHz
30dB Min. @ DC~4200MHz		10.0 X 6.0 X 3.95mmpdf
456456MHzMBP-C456_11MC-A-R0Band Pass FilterSMD50Ohm11MHz5.0dB16dB25dB min @ 467MHz24.0 X 18.0 X 8.0mmpdf
45904590MHzMBP-C4590_600MM-A-R1Band Pass FilterSMD50Ohm600MHz1.5dB15dB45dB Min @ 3500MHz
40dB Min @ 6000MHz
45dB Min @ 7000MHz		13.0 X 12.0 X 6.0mmpdf
46754675MHzMBP-C4675_950MM-B-R0Band Pass FilterSMD50Ohm950MHz2.0dB14dB50dB min @ 3500MHz
32dB min @ 5400MHz
50dB min @ 5500MHz		16.3 X 6.5 X 4.8mmpdf
47004700MHzMBP-C4700_600MM-ABand Pass FilterSMD50Ohm600MHz1.2dB14dB55dB Min @ 1~3800MHz
43dB Min @ 3801~4100MHz
43dB Min @ 5400~6000MHz		25.9 X 6.0 X 8.0mmpdf
47374737.5MHzMBP-C4737.5_525MM-ABand Pass FilterSMD50Ohm525MHz4.0dB15dB40dBc min @ DC~4200MHz
40dBc min @ 5250~7500MHz		18x6x4.2mmpdf
47504750MHzMBP-C4750_300MM-A-R1Band Pass FilterSMD50Ohm300MHz1.5dB15dB65dB Min. @ 10 ~ 3400MHz
50dB Min @ 3400 ~ 4200MHz
25dB Min @ 4340MHz
25dB Min @ 4960MHz
50dB Min @ 5150 ~ 5925MHz		27.6 X 5.3 X 6.0mmpdf
48504850MHzMBP-C4850_300MM-A-R1Band Pass FilterSMD50Ohm300MHz2.0dB15dB20dB Min. @ 4520MHz
30dB Min. @ 5250~6000MHz
20dB Min. @ 5200MHz
30dB Min. @ DC~4520MHz		10.0 X 5.7 X 3.95mmpdf
500500MHzMBP-C500_10MM-A-R0Band Pass FilterSMD50Ohm10MHz1.9dB15dB50dB min @ DC ~ 250MHz
50dB min @ 750MHz		17.8 X 15.5 X 7.1mmpdf
500500MHzMBP-C500_20MC-A-R0Band Pass FilterSMD50Ohm20MHz1.86dB15dB60dB min @ 400MHz
60dB min @ 600MHz		29.8x19.36x7.11mmpdf
50005000MHzMBP-C5000_1500MC-A-R2Band Pass FilterSMD50Ohm1500MHz2.0dB15dB60dB min @ 3750MHz
35dB min @ 6250~6500MHZ		42x14.5x5.2mmpdf
52005200MHzMBP-C5200_24MM-A-R0Band Pass FilterSMD50Ohm24MHz3.0dB15dB35dB min @ 5100MHz
35dB min @ 5300MHz		30.0 X 14.0 X 5.5mmpdf
52505250MHzMBP-C5250_100MC-A-R0Band Pass FilterSMD50Ohm100MHz1.5dB16dB60dB Min @ 2000 ~ 4000MHz
30dB Min @ 4900MHz
20dB Min @ 5500MHz
50dB Min @ 8500MHz		14.0 X 11.0 X 5.0mmpdf
52505250MHzMBP-C5250_1500MM-A-R0Band Pass FilterSMD50Ohm1500MHz1.2dB13dB25dB Min.@ 4100MHz
30dB Min.@ 7000MHz		21.0 X 4.30 X 3.7mmpdf
52505250MHzMBP-C5250_1580MM-A-R0Band Pass FilterSMD50Ohm1580MHz1.5dB18dB40dBc min @ 20 ~ 3030MHz
25dBc min @ 7500 ~ 8000MHz
28dBc min @ 8000 ~ 8900MHz		10.0 X 7.0 X 3.9mmpdf
53505350MHzMBP-C5350_900MD-A-R0Band Pass FilterBEAD50Ohm900MHz1.5dB15dB40dB min @ DC ~ 1030MHz
20dB min @ 1030 ~ 1266MHz
15dB min @ 3980 ~ 4539MHz
40dB min @ 9800 ~ 11600MHz		19.0 X 12.7 X 6.4mmpdf
54005400MHzMBP-C5400_60MM-A-R0Band Pass FilterSMD50Ohm60MHz2.0dB10dB10dB Min.@ 6030~7000MHz
40dB Min.@ 4700~4800MHz		4.0 X 4.5 X 1.6mmpdf
33123312.5MHzMBP-C3312.5_100MM-A-R1Band Pass FilterSMD50Ohm100MHz2.0dB15dB60dB min @ 2500MHz
60dB min @ 4100MHz		15.8x8.5x4.0mmpdf
33603360MHzMBP-C3360_70MM-A-R0Band Pass FilterSMD50Ohm70MHz2.31dB15dB20dB min @ 3165.5 & 3555.5MHz12.7 X 10.5 X 5.1mmpdf
33603360MHzMBP-C3360_80MM-A-R0Band Pass FilterSMD50Ohm80MHz1.56dB15dB60dB min @ 1681 & 5040MHz12.7 X 15.5 X 5.1mmpdf
33753375MHzMBP-C3375_800MC-ABand Pass FilterSMD50Ohm800MHz3.0dB15dB60dB min @ 1900MHz
45dB min @ 4500MHz		25.4x12x5mmpdf
34803480MHzMBP-C3480_5MC-A-R0Band Pass FilterSMD50Ohm5MHz4.5dB15dB20dB min @ 3420 & 3540MHz21.0 X 14.0 X 5.5mmpdf
35003500MHzMBP-C3500_200MM-A-R1Band Pass FilterSMD50Ohm200MHz1.0dB14dB10dB min @ 3300MHz
10dB min @ 3700MHz		19.6x6.6x6.2mmpdf
35003500MHzMBP-C3500_500MD-A-R1Band Pass FilterConnectorized50Ohm500MHz1.5dB15dB60dB min @ DC ~ 2000MHz
60dB min @ 4250 ~ 7000MHz		38.0 X 18.0 X 8.0mmpdf
35253525MHzMBP-C3525_2.45GL-A-R8Band Pass FilterBEAD50Ohm2450MHz2.5dB10dB20dB Min @ 2000MHz
50dB Min @ 6000MHz		30.0 X 8.0 X 8.0mmpdf
35503550MHzMBP-C3550_500MM-A-R0Band Pass FilterSMD50Ohm500MHz2.0dB16dB43dB min @ 2700 ~ 3000MHz
43dB min @ 4200 ~ 6000MHz
55dB min @ DC ~ 2700MHz		22.5 X 9.0 X 5.9mmpdf
36003600MHzMBP-C3600_60MM-A-R0Band Pass FilterSMD50Ohm60MHz2.5dB15dB40dB min @ DC ~ 3450MHz
40dB min @ 3750 ~ 6000MHz		10.0 X 7.3 X 3.95mmpdf
36253625MHzMBP-C3625_150MM-A-R0Band Pass FilterSMD50Ohm150MHz3.0dB12dB65dB min @ DC ~ 2690MHz
40dB min @ 2690 ~ 3300MHz
15dB min @ 3300 ~ 3530MHz
15dB min @ 3720 ~ 4200MHz
52dB min @ 4200 ~ 4900MHz
50dB min @ 4900 ~ 5850MHz		40.0 X 8.5 X 7.5mmpdf
36253625MHzMBP-C3625_2.25GL-A-R6Band Pass FilterBEAD50Ohm2250MHz2.5dB10dB20dB Min @ 2000MHz
50dB Min @ 6000MHz		30.0 X 8.0 X 8.0mmpdf
38003800MHzMBP-C3800_600MM-A-R2Band Pass FilterSMD50Ohm600MHz3.0dB14dB30dBc Min.@ 4600~6000MHz
50dBc Min.@ DC to 3240MHz		13.0 X 6.5 X 5.0mmpdf
39403940MHzMBP-C3940_80MM-A-R0Band Pass FilterSMD50Ohm80MHz3.7dB14dB30dB min @ 3840MHz
30dB min @ 4040MHz		25.9 X 7.0 X 8.0mmpdf
39003900MHzMBP-C3950_300MM-ABand Pass FilterSMD50Ohm300MHz2.0dB12dB60dBc min @ 3350MHz
60dBc min @ 4750MHz		19.5x7.1x4.42mmpdf
39503950MHzMBP-C3950_500MM-A-R0Band Pass FilterSMD50Ohm500MHz1.2dB14dB55dB min @ 1 ~ 2700MHz
43dB min @ 2701 ~ 3400MHz
43dB min @ 4600 ~ 6000MHz		25.9 X 7.0 X 8.0mmpdf
40004000MHzMBP-C4000_500MC-A-R0Band Pass FilterSMD50Ohm500MHz2.0dB15dB40dB min @ 750~1250MHz
40dB min @ 1875~2125MHz		21.6x11x5mmpdf
40004000MHzMBP-C4000_64MM-A-R1Band Pass FilterSMD50Ohm64MHz1.9dB14dB60dB Min. @ DC~2000MHz
37dB Min. @ 2000~3700MHz
35dB Min. @ 4300~6000MHz		14.35 X 10.0 X 6.25mmpdf
40754075MHzMBP-C4075_50MC-A-R0Band Pass FilterSMD50Ohm50MHz4.0dB12dB20dB Min. @ 4000MHz
7dB Min. @ 4120MHz
20dB Min. @ 4150MHz
35dB Min. @ DC~3000MHz
35dB Min. @ 4200~6000MHz		13.0 X 12.0 X 5.0mmpdf
409409MHzMBP-C409_10MC-A-R0Band Pass FilterSMD50Ohm10MHz5.0dB15dB40dB min @ DC ~ 380MHz
40dB min @ 440MHz
60dB min @ 800MHz		26.0 X 24.0 X 7.1mmpdf
28622862.5MHzMBP-C2862.5_85MM-ABand Pass FilterSMD50Ohm85MHz3.0dB14dB65dB Min @2750 MHz
65dB Min @2975 MHz		32.0 X 8.9 X 5.35mmpdf
29372937.5MHzMBP-C2937.5_85MM-ABand Pass FilterSMD50Ohm85MHz3.0dB14dB65dB Min @2825 MHz
65dB Min @3050 MHz		32.0 X 8.7 X 5.35mmpdf
29502950MHzMBP-C2950_100MM-A-R1Band Pass FilterSMD50Ohm100MHz2.0dB15dB20dB min @ 2600 & 3200MHz
40dB min @ 2500 & 3300MHz		9.6 X 9.0 X 4.0mmpdf
30003000MHzMBP-C3000_500MM-A-R2Band Pass FilterSMD50Ohm500MHz2.0dB15dB55dB min @ 750~2550MHz
55dB min @ 5000MHz		32x7.8x5.35mmpdf
30123012.5MHzMBP-C3012.5_85MM-ABand Pass FilterSMD50Ohm85MHz3.0dB14dB65dB Min @ 2900MHz
65dB Min @ 3125 MHz		32.0 X 8.5 X 5.35mmpdf
30253025MHzMBP-C3025_250MM-ABand Pass FilterSMD50Ohm250MHz3.0dB14dB65dB Min @2700 MHz
65dB Min @3350 MHz		32.0 X 8.5 X 5.35mmpdf
30503050MHzMBP-C3050_100MM-A-R1Band Pass FilterSMD50Ohm100MHz2.0dB15dB20dB min @ 2700 & 3300MHz
40dB min @ 2600 & 3400MHz		9.6 X 9.0 X 4.0mmpdf
30853085MHzMBP-C3085_80MM-ABand Pass FilterSMD50Ohm80MHz3.0dB14dB65dB Min @2970 MHz
65dB Min @3200 MHz		32.0 X 8.4 X 5.35mmpdf
31003100MHzMBP-C3100_30MM-A-R0Band Pass FilterSMD50Ohm30MHz1.5dB15dB45dB min @ 4470~4530MHz19.6x8x6.2mmpdf
31003100MHzMBP-C3100_400MC-A-R1Band Pass FilterSMD50Ohm400MHz1.5dB15dB60dB min @ 2000MHz
60dB min @ 4000MHz		32.0 X 13.0 X 6.1mmpdf
31003100MHzMBP-C3100_450MC-B-R0Band Pass FilterSMD50Ohm450MHz2.0dB15dB30dB min @ 2200MHz
20dB min @ 2690MHz		22.0 x 16.3 x 5.5mmpdf
31503150MHzMBP-C3150_100MM-A-R0Band Pass FilterSMD50Ohm100MHz4.5dB15dB20dB min @ 2800 & 3400MHz
40dB min @ 2700 & 3500MHz		9.6 X 8.5 X 4.0mmpdf
32003200MHzMBP-C3200_200MC-A-R2Band Pass FilterSMD50Ohm200MHz3.0dB15dB40dB min @ 2900MHz
40dB min @ 3500MHz		11.9 x 7.5 x 3.8mmpdf
32103210MHzMBP-C3210_180MM-ABand Pass FilterSMD50Ohm180MHz4.0dB14dB65dB Min @2700MHz
60dB Min @3020MHz
60dB Min @3400 MHz		32.0 X 8.4 X 5.35mmpdf
32503250MHzMBP-C3250_100MM-A-R1Band Pass FilterSMD50Ohm100MHz2.0dB15dB20dB min @ 2900 & 3500MHz
40dB min @ 2800 & 3600MHz		9.6 X 8.5 X 4.0mmpdf
32503250MHzMBP-C3250_10MM-B-R0Band Pass FilterSMD50Ohm10MHz6.5dB15dB60dBc min @ 3080MHz
25dBc min @ 3215MHz
25dBc min @ 3285MHz
60dBc min @ 3420MHz		20.5 X 8.4 X 5.4mmpdf
32503250MHzMBP-C3250_200MM-B-R0Band Pass FilterSMD50Ohm200MHz3.0dB15dB30dBc min @ 3050MHz
30dBc min @ 3450MHz		20.5 X 8.4 X 5.4mmpdf
32503250MHzMBP-C3250_20MM-B-R0Band Pass FilterSMD50Ohm20MHz6.5dB15dB60dBc min @ 3080MHz
20dBc min @ 3215MHz
20dBc min @ 3285MHz
60dBc min @ 3420MHz		20.5 X 8.4 X 5.4mmpdf
32503250MHzMBP-C3250_40MM-B-R0Band Pass FilterSMD50Ohm40MHz6.5dB15dB60dBc min @ 3080MHz
15dBc min @ 3215MHz
15dBc min @ 3285MHz
60dBc min @ 3420MHz		20.5 X 8.4 X 5.4mmpdf
32503250MHzMBP-C3250_5MM-B-R0Band Pass FilterSMD50Ohm5MHz6.5dB15dB60dBc min @ 3080MHz
30dBc min @ 3215MHz
30dBc min @ 3285MHz
60dBc min @ 3420MHz		20.5 X 8.2 X 5.4mmpdf
17501750MHzMBP-C1750_500MS-A-R1Band Pass FilterSMD50Ohm500MHz2.0dB10dB30dB min @ DC~1300MHz
13dB min @ 2100~3000MHz		40x20x11.5mmpdf
18001800MHzMBP-C1800_100MM-A-R0Band Pass FilterSMD50Ohm100MHz3.0dB20dB50dB Min @ 750 ~ 1650MHz
50dB Min @ 2150 ~ 2500 MHz		9.6 X 8.0 X 4.0mmpdf
18001800MHzMBP-C1800_200MM-A-R0Band Pass FilterSMD50Ohm200MHz3.0dB20dB50dB Min @ 750 ~ 1600MHz
50dB Min @ 2100MHz		16.0 X 6.5 X 4.0mmpdf
18001800MHzMBP-C1800_250MM-A-R0Band Pass FilterSMD50Ohm250MHz3.0dB15dB50dB Min @ 750 ~ 1600MHz
50dB Min @ 2100 ~ 2200 MHz		16.0 X 6.5 X 4.0mmpdf
18001800MHzMBP-C1800_50MM-A-R0Band Pass FilterSMD50Ohm50MHz3.0dB20dB50dB Min @ 750 ~ 1675MHz
50dB Min @ 2175 ~ 2500 MHz		9.6 X 8.0 X 4.0mmpdf
19051905MHzMBP-C1905_250MC-A-R0Band Pass FilterSMD50Ohm250MHz0.97dB15dB20dB min @ 1680 & 2130MHz12.7 X 29.8 X 5.1mmpdf
19951995MHzMBP-C1995_30MM-A-R0Band Pass FilterSMD50Ohm30MHz1.0dB15dB60dB min @ 2170 ~ 2290MHz19.6 X 7.6 X 8.2mmpdf
20002000MHzMBP-C2000_500MC-A-R0Band Pass FilterSMD50Ohm500MHz2.0dB15dB40dB min @ 750~1250MHz21.6x11x5mmpdf
20892089MHzMBP-C2089_2MM-A-R0Band Pass FilterSMD50Ohm2MHz1.5dB15dB30dB min @ 2240.5MHz13.4x7.75x8mmpdf
21002100MHzMBP-C2100_60MD-A-R0Band Pass FilterBEAD50Ohm60MHz2.9dB10dB80dBc min @ 10 ~ 1800MHz
80dBc min @ 2400 ~ 3000MHz		38.1 X 19.05 X 6.3mmpdf
22502250MHzMBP-C2250_100MC-A-R2Band Pass FilterSMD50Ohm100MHz1.7dB15dB35dB min @ 2100MHz26.15x14.2x6.2mmpdf
22772277MHzMBP-C2277_10MM-A-R0Band Pass FilterSMD50Ohm10MHz1.5dB15dB30dB min @ 2223MHz13.4x8x8mmpdf
22892289MHzMBP-C2289_2MM-A-R0Band Pass FilterSMD50Ohm2MHz1.5dB15dB30dB min @ 2240.5MHz13.4x7.1x8mmpdf
23502350MHzMBP-C2350_100MC-A-R2Band Pass FilterSMD50Ohm100MHz1.7dB15dB10dB min @ 2200MHz
55dB min @ 2150MHz		26.15x14.2x6.2mmpdf
24502450MHzMBP-C2450_100MC-A-R2Band Pass FilterSMD50Ohm100MHz1.8dB15dB40dB min @ 2300MHz
53dB min @ 2250MHz		26.15x14.2x6.2mmpdf
25932593MHzMBP-C2593_194MM-E-R0Band Pass FilterSMD50Ohm194MHz1.0dB15dB30dB min @ 2425 ~ 2765MHz25.9 X 7.0 X 8.0mmpdf
27402740MHzMBP-C2740_40MM-B-R0Band Pass FilterSMD50Ohm40MHz3.0dB15dB48dB min @ 2805~2845MHz33.4x14x9.2mmpdf
27502750MHzMBP-C2750_550MC-ABand Pass FilterSMD50Ohm550MHz3.0dB15dB60dB min @ 1500MHz
50dB min @ 3750MHz		25.4x11x5mmpdf
28102810MHzMBP-C2810_240MM-A-R3Band Pass FilterSMD50Ohm240MHz2.0dB15dB40dB min @ DC ~ 1700MHz
25dB min @ 1700 ~ 2550MHz
25dB min @ 3050 ~ 4500MHz
20dB min @ 4500 ~ 5400MHz		10.8 X 6.3 X 4.5mmpdf
28252825MHzMBP-C2825_40MM-A-R0Band Pass FilterSMD50Ohm40MHz2.5dB15dB54dB min @ 2720~2760MHz33.4x14x9.2mmpdf
11351135MHzMBP-C1135_15MC-A-R0Band Pass FilterSMD50Ohm15MHz4.44dB15dB20dB min @ 1090MHz
30dB min @ 1180MHz		15.5x17.69x5.08mmpdf
11931193MHzMBP-C1193_467MM-A-R0Band Pass FilterSMD50Ohm467MHz2.0dB14dB50dB min @ 700MHz
50dB min @ 1700MHz		26.0 X 14.0 X 4.2mmpdf
12021202MHzMBP-C1202_76MM-A-R2Band Pass FilterBEAD50Ohm76MHz1.0dB15dB45dB min @ 1000MHz
40dB min @ 1100MHz
10dB min @ 1134MHz
10dB min @ 1270MHz
35dB min @ 1400 ~ 1520MHz
35dB min @ 1626 ~ 1660MHz
40dB min @ 1700 ~ 2000MHz
35dB min @ 2200 ~ 2400MHz		14.5 X 11.6 X 6.3mmpdf
12101210MHzMBP-C1210_25MD-A-R0Band Pass FilterBEAD50Ohm25MHz4.1dB16dB60dB min @ DC ~ 1020MHz
70dB min @ 1020 ~ 1040MHz
60dB min @ 1040 ~ 1151MHz
58dB min @ 1151 ~ 1154MHz
53dB min @ 1266.6 ~ 1278.6MHz
60dB min @ 1278.6 ~ 3000MHz
50dB min @ 3000 ~ 6000MHz		43.69 X 22.86 X 7.37mmpdf
12101210MHzMBP-C1210_65MD-A-R0Band Pass FilterBEAD50Ohm65MHz3.5dB14dB70dB min @ DC ~ 1030MHz
45dB min @ 1322.82MHz
70dB min @ 1500 ~ 3000MHz
50dB min @ 3001 ~ 6000MHz		25.4 X 12.7 X 10.16mmpdf
12571257.1MHzMBP-C1257.1_26MC-A-R1Band Pass FilterSMD50Ohm26MHz5.0dB14dB70dB Min. @ 10~1117.1MHz
22dB Min. @ 1117.1~1229.1MHz
21dB Min. @ 1285.1~1397.1MHz
70dB Min. @ 1397.1~3000MHz		34.0 X 15.0 X 5.3mmpdf
12661266MHzMBP-C1266_60MD-A-R0Band Pass FilterBEAD50Ohm65MHz3.5dB14dB80dB min @ DC ~ 633MHz
67dB min @ 1030MHz
12dB min @ 1210.32MHz
12dB min @ 1322.82MHz
80dB min @ 1899 ~ 2532MHz
40dB min @ 3900 ~ 5800MHz		25.4 X 12.7 X 10.16mmpdf
12801280MHzMBP-C1280_15MM-A-R0Band Pass FilterSMD50Ohm15MHz2.0dB15dB47dBc min @ 1200MHz
51dBc min @ 1400MHz		15.5 X 10.0 X 7.5mmpdf
13001300MHzMBP-C1300_170MM-A-R2Band Pass FilterSMD50Ohm170MHz2.5dB15dB70dB min @ DC ~ 500MHz
65dB min @ 600 ~ 700MHz
55dB min @ 800 ~ 900MHz
45dB min @ 1000 ~ 1100MHz
45dB min @ 1500 ~ 1600MHz
55dB min @ 1700 ~ 1800MHz
60dB min @ 1900 ~ 2000MHz
55dB min @ 2100 ~ 2500MHz
30dB min @ 2500 ~ 3000MHz		12.8 X 11.8 X 4.8mmpdf
13001300MHzMBP-C1300_200MM-A-R0Band Pass FilterSMD50Ohm200MHz1.5dB15dB40dB min @ 1000 ~ 1100MHz
40dB min @ 1500 ~ 1600MHz		12.8 X 6.5 X 5.0mmpdf
13001300MHzMBP-C1300_425MC-A-R1Band Pass FilterSMD50Ohm425MHz2.5dB15dB70dB min @ DC ~ 400MHz
55dB min @ 500 ~ 600MHz
40dB min @ 700 ~ 800MHz
40dB min @ 1800 ~ 2000MHz		13.0 X 13.0 X 4.5mmpdf
13001300MHzMBP-C1300_500MC-A-R0Band Pass FilterSMD50Ohm500MHz1.5dB15dB35dB min @ 500 ~ 800MHz
35dB min @ 1800 ~ 2000MHz		22.0 x 17.5 x 5.5 mmpdf
13851385MHzMBP-C1385_450MM-A-R0Band Pass FilterSMD50Ohm450MHz4.0dB15dB50dB min @ 800MHz
20dB min @ 1100MHz
20dB min @ 1690MHz
50dB min @ 2000MHz		23.0 x 13.0 x 4.5mmpdf
13851385MHzMBP-C1385_450MM-B-R0Band Pass FilterSMD50Ohm450MHz4dB15dB55dB min @ 800MHz
25dB min @ 1100MHz
25dB min @ 1690MHz
40dB min @ 1740MHz		42.0 X 14.5 X 6.5mmpdf
13961396.8MHzMBP-C1396.8_26MC-A-R1Band Pass FilterSMD50Ohm26MHz5dB14dB70dB Min.@ 10~1256.8MHz
22dB Min.@ 1256.8~1368.8MHz
21dB Min.@ 1424.8~1536.8MHz
70dB Min.@ 1536.8~3000MHz		34.0 X 14.0 X 5.3mmpdf
14001400MHzMBP-C1400_20MD-A-R0Band Pass FilterBEAD50Ohm20MHz4.5dB15dB45dBc min @ DC ~ 1300MHz
65dBc min @ 1500MHz
80dBc min @ 1600MHz
45dBc min @ 1700 ~ 3000MHz		19.05 X 16.51 X 8.89mmpdf
15361536MHzMBP-C1536.51_26MC-A-R1Band Pass FilterSMD50Ohm26MHz5.0dB14dB70dB Min.@ 10~1396.5MHz
22dB Min.@ 1396.5~1508.5MHz
21dB Min.@ 1564.5~1676.5MHz
70dB Min.@ 1676.5~3000MHz		34.0 X 15.0 X 5.3mmpdf
15751575MHzMBP-C1575.5-33MM-A-R0Band Pass FilterSMD50Ohm33MHz2.2dB15dB45dB Min @ 1000 ~ 1100MHz
45dB Min @ 1250 ~ 1315MHz
33dB Min @ 1400 ~ 1520MHz
25dB Min @ 1535MHz
25dB Min @ 1616MHz
35dB Min @ 1626 ~ 1660MHz
40dB Min @ 1700 ~ 2000MHz
35dB Min @ 2200 ~ 2400MHz		15.0 X 10.7 X 6.3mmpdf
16001600MHzMBP-C1600_20MD-A-R0Band Pass FilterBEAD50Ohm20MHz4.5dB15dB50dBc min @ DC ~ 1300MHz
70dBc min @ 1400MHz
50dBc min @ 1500MHz
50dBc min @ 1700 ~ 3000MHz		19.05 X 16.51 X 8.89mmpdf
17501750MHzMBP-C1750_500MM-A-R2Band Pass FilterSMD50Ohm500MHz2.0dB10dB30dB min @ DC~1300MHz
13dB min @ 2100~3000MHz		22.86x10.66x9.0mmpdf
26002600MHzMBP-8R4-2600BP1100MBand Pass FilterSMD50Ohm1100MHz3.0dB15dB60dB@1750MHz
60dB@3500-5000MHz		34x14x5mmpdf
26002600MHzMBP-8R4-2600BP400MBand Pass FilterSMD50Ohm400MHz3.0dB15dB60dB min @ DC~2100MHz34x14x5.3mmpdf
27002700MHzMBP-8R4-2700BP450MBand Pass FilterSMD50Ohm450MHz2.0dB15dB50dB@2200MHz
35dB@3100MHz		34x14x5mmpdf
27002700MHzMBP-8R4-2700BP600MBand Pass FilterSMD50Ohm600MHz3.0dB15dB60dB min @ DC~2100MHz
40dB min @ 3300MHz ~ 8000MHz		25x34x5mmpdf
33003300MHzMBP-8R4-3300BP400MBand Pass FilterSMD50Ohm400MHz2.0dB15dB50dB min @ 2900MHz
50dB min @ 3800MHz		34x14x5mmpdf
47754775MHzMBP-8R4-4475BP150MBand Pass FilterSMD50Ohm150MHz4.0dB15dB5dB min @ ±90MHz from C.F.34x14x5mmpdf
44754475MHzMBP-8R4-4475BP180MBand Pass FilterSMD50Ohm180MHz4.0dB15dB55dB min @ 4000-4250MHz
45dB min @ 4700-5500MHz		34x14x5mmpdf
44754475MHzMBP-8R4-4475BP250MBand Pass FilterSMD50Ohm250MHz4.0dB15dB15dB min @ 4270MHz
15dB min @ 4680MHz		34x14x5mmpdf
44754475MHzMBP-8R4-4476BP650MBand Pass FilterSMD50Ohm650MHz3.0dB15dB60dB min @ DC ~ 3600MHz
40dB min @ 5187 ~ 8500MHz		34x14x5mmpdf
46254625MHzMBP-8R4-4625BP180MBand Pass FilterSMD50Ohm180MHz4.0dB15dB55dB min @ 4000-4400MHz
45dB min @ 4850-5500MHz		34x14x5mmpdf
47754775MHzMBP-8R4-4775BP180MBand Pass FilterSMD50Ohm180MHz4.0dB15dB55dB min @ 4000-4550MHz
45dB min @ 5000-5500MHz		34x14x5mmpdf
49254925MHzMBP-8R4-4925BP150MBand Pass FilterSMD50Ohm150MHz4.0dB15dB5dB min @ ±90MHz from C.F.34x14x5mmpdf
49254925MHzMBP-8R4-4925BP180MBand Pass FilterSMD50Ohm180MHz4.0dB15dB55dB@4400-4700MHz
45dB@5150-5500MHz		34x14x5mmpdf
55005500MHzMBP-8R4-5500BP1200MBand Pass FilterSMD50Ohm1200MHz1.5dB10dB60dB Min. @ 10 ~ 3050MHz.
50dB Min. @ 7000 ~ 8500MHz		34.0 x 14.0 x 5.0 mmpdf
10301030MHzMBP-C1030_10MM-A-R0Band Pass FilterSMD50Ohm10MHz3.0dB15dB50dB min @ 910MHz
50dB min @ 1150MHz		15.6 X 8.0 X 5.3mmpdf
10901090MHzMBP-C1090_26MC-A-R0Band Pass FilterSMD50Ohm26MHz1.5dB15dB16dBc min @ 1036MHz
16dBc min @ 1144MHz
35dBc min @ 916MHz
35dBc min @ 1264MHz
30dBc min @ 1400MHz
35dBc @ 2366±10MHz		20.32 X 19.05 X 5.84mmpdf
10901090MHzMBP-C1090_30MM-A-R0Band Pass FilterSMD50Ohm30MHz3.0dB15dB70dBc min @ 970MHz
70dBc min @ 1210MHz		16.0 X 8.3 X 4.2mmpdf
11171117.5MHzMBP-C1117.5_26MC-A-R1Band Pass FilterSMD50Ohm26MHz5.0dB14dB70dB Min.@ 10~977.5MHz
22dB Min.@ 977.5~1089.5MHz
21dB Min.@ 1145~1257.5MHz
70dB Min.@ 1257.5~3000MHz		34.0 X 14.0 X 5.3mmpdf
11251125MHzMBP-C1125_200MM-ABand Pass FilterSMD50Ohm200MHz3.0dB14dB40dB min @ 985MHz
40dB min @ 1265MHz		42x17x9mmpdf
11251125MHzMBP-C1125_80MM-ABand Pass FilterSMD50Ohm80MHz3.0dB14dB40dB min @ 1069MHz
40dB min @ 1181MHz		42x17x9mmpdf
34003400MHzMBP-5R4-3400BP50MBand Pass FilterSMD50Ohm50MHz3.0dB15dB60dB@2800MHz
60dB@4000MHz		22x14x5.3mmpdf
47004700MHzMBP-5R4-4700BP140MBand Pass FilterSMD50Ohm140MHz2.0dB15dB60dB min @ 2800-3900MHz
50dB min @ 850-950MHz
40dB min @ 6500-8700MHz		22x11x5.3mmpdf
57885788MHzMBP-5R4-5788BP125MBand Pass FilterSMD50Ohm125MHz2.5dB15dB50dB min @ 4500MHz
50dB min @ 6500MHz		22x11x5.3mmpdf
13001300MHzMBP-5R5-1300BP125MBand Pass FilterSMD50Ohm125MHz2.5dB15dB50dB min @ DC-1000MHz
50dB min @ 1500-6000MHz		14.6x38.2x5.5mmpdf
15701570MHzMBP-5R5-1570BP125MBand Pass FilterSMD50Ohm125MHz1.8dB15dB50dB min @ 1800MHz
50dB min @ 6000MHz		14.6x38.2x5.5mmpdf
11301130MHzMBP-5R8-1130BP340LPABand Pass FilterSMD50Ohm340MHz0.8dB15dB30dB min @ 810MHz
22dB min @ 1450MHz
40dB min @ 6000MHz		47x23x9.5mmpdf
14901490MHzMBP-6R4-1490BP50MBand Pass FilterSMD50Ohm50MHz2.5dB15dB50dB min @ 1290-1330MHz
40dB min @ 1400MHz		26.4x14x5mmpdf
670670MHzMBP-6R4-670BP50MBand Pass FilterSMD50Ohm50MHz3.0dB15dB35dB min @ 613MHz
30dB min @ 728-1500MHz		26.6x22.2x5mmpdf
12001200MHzMBP-6R6-1200BP10MBand Pass FilterSMD50Ohm10MHz8.0dB12dB44dB min @ 1180 & 1220MHz38x16x7.5mmpdf
12001200MHzMBP-6R6-1200BP20MBand Pass FilterSMD50Ohm20MHz6.5dB9.5dB45dB min @ 1170MHz
60dB min @ 1500MHz		14x39X6.8mmpdf
24142414MHzMBP-6R6-2414BP17MBand Pass FilterSMD50Ohm17MHz6.5dB15dB35dB min @ 2384 & 2444MHz38x13x7.5mmpdf
24142414MHzMBP-6R6-2414BP26MBand Pass FilterSMD50Ohm26MHz6.5dB15dB80dB@2260-2290MHz38x13x7.5mmpdf
11001100MHzMBP-8R4-1100BP300MBand Pass FilterSMD50Ohm300MHz1.0dB15dB35dB min @ 1360MHz
40dB min @ 820MHz		22x35x5.5mmpdf
11871187.5MHzMBP-8R4-1187.5BP100MBand Pass FilterSMD50Ohm100MHz3.0dB15dB60dB min @ 1000MHz
60dB min @ 1350-2700MHz		34x14x5mmpdf
16001600MHzMBP-8R4-1600BP700M_R01Band Pass FilterSMD50Ohm700MHz3.0dB10dB55dB@1000MHz
45dB@2130-3000MHz		34x14x5mmpdf
18121812.5MHzMBP-8R4-1812.5BP100MBand Pass FilterSMD50Ohm100MHz3.0dB15dB60dB min @ 1650MHz
60dB min @ 2000-4000MHz		34x14x5mmpdf
20432043MHzMBP-8R4-2043BP40MABand Pass FilterSMD50Ohm40MHz5.5dB15dB20dB@1990MHz
50dB@2115MHz
85dB@2175-2200MHz
40dB@2800-4000MHz		58x16.5x5.4mmpdf
20832083MHzMBP-8R4-2083BP40MABand Pass FilterSMD50Ohm40MHz5.5dB15dB20dB@2000MHz
50dB@2160MHz
85dB@2215-2260MHz
40dB@2800-4000MHz		58x16.5x5.4mmpdf
21872187.5MHzMBP-8R4-2187.5BP100MBand Pass FilterSMD50Ohm100MHz3.0dB15dB60dB@2000MHz
55dB@2350-5000MHz		34x14x5mmpdf
23752375MHzMBP-8R4-2375BP450MBand Pass FilterSMD50Ohm450MHz3.0dB15dB60dB@1870MHz
60dB@3000-5000MHz		34x14x5mmpdf
20002000MHzMBP-3R3-2000BP01MBand Pass FilterSMD50Ohm1MHz3.0dB15dB60dB@1000MHz
50dB@4000MHz		10x13.5x4.0mmpdf
30003000MHzMBP-3R3-3000BP01MBand Pass FilterSMD50Ohm1MHz3.0dB15dB60dB@1000MHz
20dB@2000MHz
20dB@4000MHz		10x13.5x4.0mmpdf
21772177.5MHzMBP-3R4-2177.5BP15MBand Pass FilterSMD50Ohm15MHz2.0dB15dB30dB@1966MHz
45dB@2789MHz		13x12x5.2mmpdf
35003500MHzMBP-4R4-3500BP10MBand Pass FilterSMD50Ohm10MHz3.5dB15dB45dB min @ 3300MHz
45dB min @ 3700MHz		18x12x5.3mmpdf
750750MHzMBP-4R4-750BP100MBand Pass FilterSMD50Ohm100MHz1.0dB15dB14dB min @ 650MHz
10dB min @ 850MHz		18.2x14x5.3mmpdf
10201020MHzMBP-4R6-1020BP50MBand Pass FilterSMD50Ohm50MHz2.5dB15dB45dB Min @ 770MHz
50dB Min @ 1210MHz		31.75x12.78x8.13mmpdf
16021602MHzMBP-4R6-1602BP17MBand Pass FilterSMD50Ohm17MHz3.5dB15dB35dB@1560MHz
35dB@1645-2500MHz		26x14x7mmpdf
54505450MHzMBP-5100-5800M-700MMBand Pass FilterSMD50Ohm700MHz2.0dB10dB55dB Min. @ 2400MHz
7dB Min. @ 4950MHz
5dB Min. @ 5950MHz		8.6 x 3.7 x 2.7 mmpdf
52405240MHzMBP-5150-5330M-180MM-CBand Pass FilterSMD50Ohm180MHz3.2dB10dB38dB Min.@ 30~2700MHz
16dB Min.@ 3453~3547MHz
33dB Min.@ 3667~3883MHz
50dB Min.@ 5490~5850MHz
20dB Min.@ 7200-7500MHz		8.6 x 3.7 x 2.7 mmpdf
56705670MHzMBP-5490-5850M-360MM-CBand Pass FilterSMD50Ohm180MHz2.8dB10dB38dB Min. @ 30~2700MHz
16dB Min. @ 3453~3547MHz
33dB Min. @ 3667~3883MHz
50dB Min. @ 5150~5330MHz
20dB Min. @ 7200-7500MHz		8.6 x 3.7 x 2.7 mmpdf
10201020MHzMBP-5R4-1020BP50MBand Pass FilterSMD50Ohm50MHz2.5dB15dB45dB Min @ 770MHz
50dB Min @ 1210MHz		22.0 x 14.0 x 5.5 mmpdf
17801780MHzMBP-5R4-1487BP115MBand Pass FilterSMD50Ohm115MHz2.0dB15dB25dB min @ DC-773MHz
50dB min @ 3250MHz		30x10x5mmpdf
17501750MHzMBP-5R4-1750BP100MBand Pass FilterSMD50Ohm100MHz2.0dB15dB35dB@1620MHz
30dB@1880MHz		22x14x5.3mmpdf
17801780MHzMBP-5R4-1780BP140MBand Pass FilterSMD50Ohm140MHz2.0dB15dB25dB min @ DC-925MHz
10dB min @ 1625MHz
10dB min @ 2783MHz
50dB min @ 3250MHz		30.5x10.2x5.1mmpdf
23322332.5MHzMBP-5R4-2332.5BP305MBand Pass FilterSMD50Ohm305MHz2.0dB15dB30dB@DC-1243MHz
10dB@1625MHz
10dB@2995MHz
50dB@3250MHz		30x10x5mmpdf
25002500MHzMBP-5R4-2500BP120MBand Pass FilterSMD50Ohm120MHz2.0dB15dB60dB@DC-1800MHz
60dB@3000-5500MHz		22x14x5.3mmpdf
25752575MHzMBP-5R4-2575BP30MBand Pass FilterSMD50Ohm30MHz4.5dB15dB40dB@2670MHz22x14x5.3mmpdf
31873187.5MHzMBP-5R4-3187.5BP100MBand Pass FilterSMD50Ohm100MHz3.0dB15dB60dB@2900MHz
60dB@3600-7500MHz		22 x 14 x 5.3mmpdf
32503250MHzMBP-5R4-3250BP40MBand Pass FilterSMD50Ohm40MHz7.0dB15dB60dB@3080MHz
10dB@3215MHz
10dB@3285MHz
60dB@3420MHz		30x10x5mmpdf
34003400MHzMBP-5R4-3400BP100MBand Pass FilterSMD50Ohm100MHz3.0dB15dB60dB min @ 2800MHz
60dB min @ 4000MHz		22x14x5.3mmpdf
