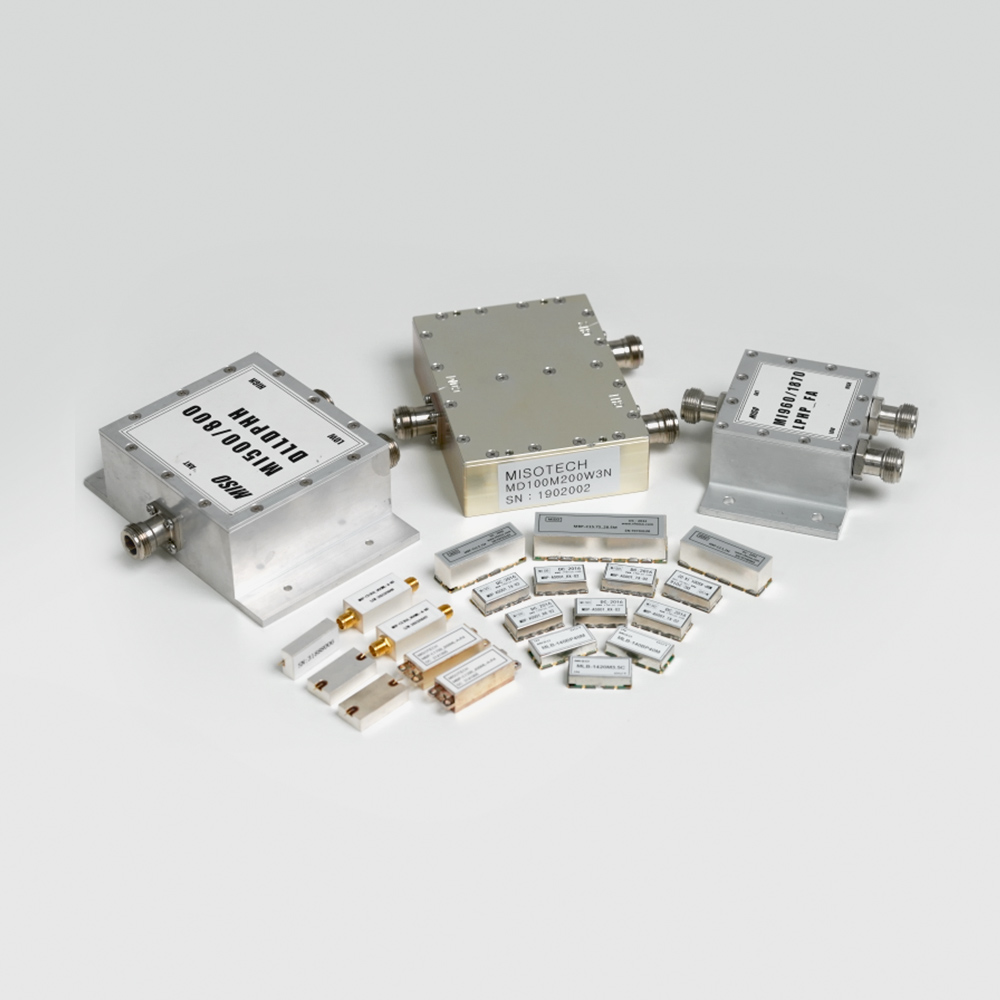

LC Filter
Applications
- Cellular base station transceivers
- Satellite transceivers
- GPS and car navigation equipment
- Land mobile radios
- CATV
- Modems
- Wireless LANs
- Military
Features
- Small size, low profile
- Leaded, surface mount, PC mount and connectorized
- Hermetically sealed package available
- Wide range of transfer functions
- 30 kHz t0 20GHz
- Compliant to MIL % RoHs Specs
Typical Performance Characteristics
- Temperature Range: -55 to 85℃
- Temperature Stability: (±5 ppm /℃)
| No | Center Feq. | Part No | Filter Type | Type | Impedance | Band Width | Insertion Loss | Return Loss | Attenuation | Dimention | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 460 | 460MHz / 1700MHz | MDI-C460-C1700_120M-2000MN-A-R0 | Diplexer | Connectorized | 50Ohm | 120MHz / 2000MHz | 0.8dB | 15dB | 50dB min @ Other Ports | 163.5 X 239.5 X 35.5mm | ||
| 750 | 750MHz / 4150MHz | MDI-C750-C4150_500M-3700MN-A-R0 | Diplexer | Connectorized | 50Ohm | 500MHz / 3700MHz | 0.5dB | 15dB | 50dB min @ Other Ports | 180.0 X 69.0 X 27.5mm | ||
| 898 | 898.5MHz / 932.5MHz | MDI-C898.5-C932.5_7M-5MS-A-R0 | Diplexer | Connectorized | 50Ohm | 7MHz / 5MHz | 2.0dB | 15.6dB | 70dB min @ 10 ~ 700MHz 40dB min @ 883MHz / 85dB min @ 10 ~ 902MHz 80dB min @ 1000 ~ 2600MHz | 140.0 X 90.0 X 45.0mm | ||
| 902 | 902.5MHz / 947.5MHz | MDI-C902.5-C947.5_25M-25MS-A-R0 | Diplexer | Connectorized | 50Ohm | 25MHz / 25MHz | 0.7dB | 18.0dB | 70dB min @ 935 ~ 960MHz / 70dB min @ 890 ~ 915MHz | 140.0 X 100.0 X 60.0mm | ||
| 1030 | 1030MHz / 1090MHz | MDI-C1030-C1090_15MS-A-R2 | Diplexer | Connectorized | 50Ohm | 15MHz / 15MHz | 1.2dB | 15dB | 60dBc min @ 1090MHz / 63dB min @ 1030MHz | 114.3 X 82.55 X 64.8mm | ||
| 1325 | 1325MHz / 2400MHz | MDI-C1325-C2400_1250M-600MN-A-R0 | Diplexer | Connectorized | 50Ohm | 1250MHz / 600MHz | 1.0dB | 15dB | 50dB min @ Other Ports | 163.5 X 239.5 X 35.5mm | ||
| 1560 | 1560MHz / 4650MHz | MDI-C1560-C4650_2280M-2500MN-A-R0 | Diplexer | Connectorized | 50Ohm | 2280MHz / 2500MHz | 0.7dB | 14dB | 50dB min @ Other Ports | 160.0 X 70.0 X 28.0mm | ||
| 2595 | 2595MHz / 2720MHz | MDI-C2595-C2720_50M-60M-A-R0 | Diplexer | Connectorized | 50Ohm | 50MHz / 60MHz | 1.0dB | 15dB | 25dB min @ 2690 ~ 2750MHz / 25dB min @ 2570 ~ 2620MHz | 34.5 X 20.0 X 8.0mm | ||
| 3550 | 3550MHz / 1345MHz | MDI-C3550-C1345_500M-2690MS-A | Diplexer | Connectorized | 50Ohm | 500MHz / 2690MHz | 0.6dB | 18dB | 55dB min @ 3100MHz 55dB min @ 4100MHz / 55dB min @ 3300 ~ 4100MHz | 91.0 X 87.0 X 19.0mm | ||
| 3600 | 3600MHz / 5400MHz | MDI-C3600-C5400_400M-1000MS-A-R0 | Diplexer | Connectorized | 50Ohm | 400MHz / 1000MHz | 0.7dB | 15dB | 50dB min @ Other Ports | 180.0 X 80.0 X 34.0mm | ||
| 222 | 222.5MHz / 1775MHz | MDP-20-425-550-3000BP415-2450M_R01 | Diplexer | Connectorized | 50Ohm | 405MHz / 2450MHz | 5.0dB | 10.0dB | 35dB min @ 20 ~ 425MHz / 35dB min @ 550 ~ 3000MHz | 80.0 X 60.0 X 24.0mm | ||
| 222 | 222.5MHz / 1775MHz | MDP204255503000BP4152450_R03 | Diplexer | Connectorized | 50Ohm | 405MHz / 2450MHz | 6.0dB | 10.0dB | 35dB min @ 20 ~ 425MHz / 20dB min @ 550 ~ 3000MHz | 80.0 X 60.0 X 24.0mm | ||
| 74 | 74MHz / 175MHz | MDP-C137_74M-C312.5_175MN-A | Duplexer | Connectorized | 50Ohm | 74MHz / 175MHz | 1.1dB | 15dB | 25dB min @ 80MHz 30dB min @ 200MHz 25dB min @ 225 ~ 400MHz / 25dB min @ 100 ~ 174MHz 25dB min @ 200MHz 30dB min @ 425 ~ 2000MHz | 110.0 X 120.0 X 29.0mm | ||
| 655 | 655.5MHz / 671MHz | MDP-C655.5-C674_3M_14MS-A | Duplexer | Connectorized | 50Ohm | 3MHz / 14MHz | 1.3dB | 15dB | 70dB min @ 664 ~ 700MHz 50dB min @ 700 ~ 3000MHz / 50dB min @ 10 ~ 630MHz 70dB min @ 630 ~ 657MHz | 276.0 X 185.0 X 58.0mm | ||
| 2900 | 2900MHz / 5100MHz | MDP-C2900-C5100_1800ML-A-R0 | Diplexer | Connectorized | 50Ohm | 1800MHz / 1800MHz | 1.5dB | 15dB | 40dB min @ 4200 ~ 6000MHz / 40dB min @ 2000 ~ 3800MHz | 35.0 X 40.0 X 15.0mm | ||
| 225 | 225MHz / 1775MHz | MDPX-450-3000-2.0T_V01 | Diplexer | Connectorized | 50Ohm | 450MHz / 2450MHz | 2.0dB | 10dB | 50dB min @ DC ~ 450MHz / 50dB min @ 550 ~ 3000MHz | 80.0 X 50.0 X 20.0mm | ||
| 9000 | 9000MHz | MBP-C9000_1000MH-A-R0 | Band Pass Filter | BEAD | 50Ohm | 1000MHz | 3.0dB | 15dB | 40dBc min @ DC ~ 8100MHz 40dBc min @ 10500MHz | 39.0 X 10.0 X 6.0mm | ||
| 9000 | 9000MHz | MBP-C9000_2000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2000MHz | 2.0dB | 15dB | 60dB min @ DC ~ 7000MHz 60dB min @ 11000 ~ 20000MHz | 35.0 X 10.0 X 5.0mm | ||
| 11000 | 11000MHz | MBP-C11000_2000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2000MHz | 2.0dB | 15dB | 60dB min @ DC ~ 9000MHz 60dB min @ 13200 ~ 24000MHz | 35.0 X 10.0 X 5.0mm | ||
| 11725 | 11725MHz | MBP-C11725_2100MH-B-R0 | Band Pass Filter | Connectorized | 50Ohm | 2100MHz | 1.0dB | 11.7dB | 63dBc min @ 9000MHz 49dBc min @ 14000MHz | 40.0 X 12.0 X 7.0mm | ||
| 13000 | 13000MHz | MBP-C13000_550ML-A | Band Pass Filter | BEAD | 50Ohm | 550MHz | 3.0dB | 17dB | 60dBc min @ DC ~ 11750MHz 60dBc min @ 14200 ~ 26500MHz | 36.0 X 12.0 X 6.0mm | ||
| 13000 | 13000MHz | MBP-C13000_2000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2000MHz | 2.0dB | 15dB | 60dB min @ DC ~ 10800MHz 60dB min @ 15400 ~ 28000MHz | 35.0 X 10.0 X 5.0mm | ||
| 13895 | 13895MHz | MBP-C13895_2100MH-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2100MHz | 1.0dB | 11.7dB | 84dBc min @ DC ~ 10000MHz 45dBc min @ 16000MHz | 30.0 X 12.0 X 6.0mm | ||
| 14000 | 14000MHz | MBP-C14000_1000MX-A-R0 | Band Pass Filter | SMD | 50Ohm | 1000MHz | 1.0dB | 13dB | 50dB min @ 9 ~ 10MHz 30dB min @ 8000 ~ 12000MHz 30dB min @ 10000 ~ 12000MHz | 4.5 X 4.5 X 1.5mm | ||
| 14000 | 14000MHz | MBP-C14000_1000MX-B-R0 | Band Pass Filter | SMD | 50Ohm | 1000MHz | 1.2dB | 13dB | 50dB min @ 9 ~ 10MHz 30dB min @ 8000 ~ 12000MHz 30dB min @ 10000 ~ 12000MHz 30dB min @ 15500 ~ 18000MHz | 4.5 X 4.5 X 1.5mm | ||
| 15000 | 15000MHz | MBP-C15000_2000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2000MHz | 2.0dB | 15dB | 60dB min @ DC ~ 12600MHz 60dB min @ 17600 ~ 32000MHz | 35.0 X 10.0 X 5.0mm | ||
| 17000 | 17000MHz | MBP-C17000_2000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2000MHz | 2.0dB | 15dB | 60dB min @ DC ~ 11100MHz 60dB min @ 19800 ~ 36000MHz | 35.0 X 10.0 X 5.0mm | ||
| 50000 | 50000MHz | MBP-W5000BP10000V | Band Pass Filter | Connectorized | 50Ohm | 10000MHz | 3.0dB | 10dB | 50dB min @ 10000 ~ 40000MHz 50dB min @ 60000 ~ 80000MHz | 32.0 X 16.0 X 10.0mm | ||
| 60000 | 60000MHz | MBP-W60000BP6000V | Band Pass Filter | Connectorized | 50Ohm | 6000MHz | 2.0dB | 10dB | 40dB min @ 37000 ~ 53000MHz 40dB min @ 67000 ~ 83000MHz | 22.0 X 16.0 X 8.85mm | ||
| 5 | 5MHz / 1100MHz | MDI_5-1100MHS | Diplexer | Connectorized | 50Ohm | 10MHz / 2100MHz | 2.0dB | 12dB | 30dB min @ DC ~ 10MHz 30dB min @ 50 ~ 2250MHz | 46.0 X 40.0 X 20.0mm | ||
| 250 | 250MHz / 450MHz | MDI-250-450M_100ML | Diplexer | SMD | 50Ohm | 100MHz / 100MHz | 1.0dB | 15dB | 40dB min @ 300MHz 20dB min @ 600MHz | 35.0 X 145.0 X 12.0mm | ||
| 30 | 30MHz / 1100MHz | MDI-300-1100M_280MN | Diplexer | Connectorized | 50Ohm | 400MHz / 280MHz | 1.0dB | 18dB | 40dB min @ DC ~ 60MHz 40dB min @ 650 ~ 960MHz 60dB min @ 960 ~ 3000MHz / 60dB min @ DC ~ 700MHz 40dB min @ 800MHz 40dB min @ 1700 ~ 3000MHz | 160.0 X 120.0 X 24.0mm | ||
| 306 | 306MHz / 1100MHz | MDI-306-1100M_300MN | Diplexer | Connectorized | 50Ohm | 412MHz / 300MHz | 1.0dB | 15dB | 60dB min @ 100 ~ 512MHz 60dB min @ 950 ~ 1250MHz | 150.0 X 80.0 X 29.0mm | ||
| 15 | 15.75MHz / 306MHz | MDI-C15.75-C306_28.5M_412MN-A | Diplexer | Connectorized | 50Ohm | 28.5MHz / 412MHz | 0.5dB | 15dB | 20dB min @ Other Ports | 115.0 X 85.0 X 32.0mm | ||
| 126 | 126MHz / 312.5MHz | MDI-C126-C312.5_20M_175MN-A-R2 | Diplexer | Connectorized | 50Ohm | 20MHz / 175MHz | 2.0dB | 15dB | 33dBc min @ 116 ~ 136MHz 33dBc min @ 225 ~ 400MHz | 215.0 X 57.0 X 25.0mm | ||
| 137 | 137MHz / 368.5MHz | MDI-C137-C368.5_74M-287M-A-R0 | Diplexer | Connectorized | 50Ohm | 74MHz / 287MHz | 0.5dB | 15dB | 30dB min @ 100 ~ 174MHz 30dB min @ 225 ~ 512MHz | 150.0 X 80.0 X 29.0mm | ||
| 5191 | 5191MHz | MBP-C5191_220ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 220MHz | 3.0dB | 15dB | 68dB min @ 5 ~ 4650MHz 61dB min @ 4650 ~ 4750MHz 54dB min @ 4750 ~ 4850MHz 44dB min @ 4850 ~ 4950MHz 30dB min @ 4950 ~ 5050MHz 7dB min @ 5050 ~ 5150MHz 4dB min @ 5430 ~ 5550MHz 34dB min @ 5550 ~ 5650MHz 48dB min @ 5650 ~ 5750MHz 58dB min @ 5750 ~ 5850MHz 66dB min @ 5850 ~ 5950MHz 45dB min @ 5950 ~ 8500MHz | 12.0 X 30.0 X 8.0mm | ||
| 5250 | 5250MHz | MBP-C5250_1580ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 1580MHz | 3.0dB | 15dB | 40dBc min @ 20 ~ 3030MHz 40dBc min @ 6500 ~ 7500MHz 40dBc min @ 8000 ~ 8900MHz TBD min @ 6710 ~ 7800MHz | 15.0 X 10.0 X 5.5mm | ||
| 5291 | 5291MHz | MBP-C5291_220ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 220MHz | 3.0dB | 15dB | 68dB min @ 5 ~ 4650MHz 61dB min @ 4650 ~ 4750MHz 54dB min @ 4750 ~ 4850MHz 44dB min @ 4850 ~ 4950MHz 30dB min @ 4950 ~ 5050MHz 7dB min @ 5050 ~ 5150MHz 4dB min @ 5430 ~ 5550MHz 34dB min @ 5550 ~ 5650MHz 48dB min @ 5650 ~ 5750MHz 58dB min @ 5750 ~ 5850MHz 66dB min @ 5850 ~ 5950MHz 60dB min @ 5950 ~ 7500MHz 45dB min @ 7500 ~ 8500MHz | 12.0 X 30.0 X 8.0mm | ||
| 5350 | 5350MHz | MBP-C5350_900ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 900MHz | 1.0dB | 13.97dB | 40dB min @ DC ~ 1266MHz 15dB min @ 3980 ~ 4539MHz 40dB min @ 9800 ~ 11600MHz | 1.0 X 0.5 X 0.4inch | ||
| 5350 | 5350MHz | MBP-C5350_1300ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 1300MHz | 1.7dB | 14dB | 50dB min @ 50 ~ 3500MHz 50dB min @ 7200 ~ 8000MHz | 35.0 X 12.0 X 9.0mm | ||
| 5375 | 5375MHz | MBP-C5375_2.25GL-A-R6 | Band Pass Filter | BEAD | 50Ohm | 2250MHz | 2.5dB | 10dB | 20dB min @ 3000MHz 50dB min @ 8000MHz | 30.0 X 10.0 X 8.0mm | ||
| 5475 | 5475MHz | MBP-C5475_220ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 220MHz | 3.0dB | 15dB | 68dB min @ 5 ~ 4800MHz 64dB min @ 4900 ~ 4800MHz 56dB min @ 4900 ~ 5000MHz 47dB min @ 5000 ~ 5100MHz 35dB min @ 5100 ~ 5200MHz 14dB min @ 5200 ~ 5300MHz 17dB min @ 5650 ~ 5750MHz 37dB min @ 5750 ~ 5850MHz 50dB min @ 5850 ~ 5950MHz 60dB min @ 5950 ~ 6050MHz 58dB min @ 6050 ~ 6150MHz 74dB min @ 6150 ~ 6250MHz 60dB min @ 6250 ~ 7650MHz 45dB min @ 7650 ~ 8500MHz | 12.0 X 30.0 X 8.0mm | ||
| 5500 | 5500MHz | MBP-C5500_3GL-A | Band Pass Filter | BEAD | 50Ohm | 3000MHz | 2.0dB | 15dB | 40dBc min @ DC ~ 1100MHz 30dBc min @ 2700MHz 30dBc min @ 7600MHz 40dBc min @ 11000MHz | 50.0 X 16.0 X 9.0mm | ||
| 5500 | 5500MHz | MBP-C5500_700ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 700MHz | 1.5dB | 15dB | 40dB min @ DC ~ 2779.36MHz 40dB min @ 2779.36 ~ 3329.36MHz 36dB min @ 7000 ~ 13000MHz | 25.4 X 12.7 X 6.4mm | ||
| 5500 | 5500MHz | MBP-C5500_1200ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 1200MHz | 0.8dB | 15dB | 12dB min @ 3500 ~ 3990MHz 12dB min @ 3990 ~ 4539MHz 12dB min @ 6339 ~ 7000MHz 38dB min @ 7000 ~ 12000MHz | 27.9 X 20.1 X 12.7mm | ||
| 5650 | 5650MHz | MBP-C5650_600MS-A | Band Pass Filter | Connectorized | 50Ohm | 600MHz | 0.6dB | 20dB | 50dB min @ DC ~ 4650MHz 50dB min @ 6650 ~ 15000MHz | 111.0 X 34.0 X 18.0mm | ||
| 5650 | 5650MHz | MBP-C5650_1500MH-A-R1 | Band Pass Filter | BEAD | 50Ohm | 1500MHz | 2.0dB | 12dB | 60dB min @ 3300MHz 50dB min @ 7400MHz | 33.0 X 12.0 X 6.0mm | ||
| 5683 | 5683MHz | MBP-C5683_270ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 270MHz | 3.0dB | 15dB | 71dB min @ 5 ~ 4950MHz 62dB min @ 4950 ~ 5100MHz 55dB min @ 5100 ~ 5200MHz 45dB min @ 5200 ~ 5300MHz 32dB min @ 5300 ~ 5400MHz 12dB min @ 5400 ~ 5500MHz 27dB min @ 5900 ~ 6000MHz 46dB min @ 6000 ~ 6100MHz 56dB min @ 6100 ~ 6200MHz 65dB min @ 6200 ~ 6300MHz 60dB min @ 6300 ~ 7800MHz 45dB min @ 7800 ~ 8500MHz | 12.0 X 30.0 X 8.0mm | ||
| 6279 | 6279MHz | MBP-C6279_300MD-A-R0 | Band Pass Filter | BEAD | 50Ohm | 300MHz | 1.75dB | 15dB | 40dBc min @ DC ~ 5129MHz 40dBc min @ 9000 ~ 10000MHz | 25.4 X 12.7 X 6.35mm | ||
| 6500 | 6500MHz | MBP-C6500_3000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 3000MHz | 2.0dB | 15dB | 45dB min @ DC ~ 4000MHz 45dB min @ 9000 ~ 16000MHz | 28.0 X 12.0 X 6.0mm | ||
| 6834 | 6834MHz | MBP-C6834_200MB-A-R0 | Band Pass Filter | BEAD | 50Ohm | 200MHz | 3.0dB | 14dB | 30dB min @ F0 ±250MHz 50dB min @ F0 ±300MHz | 42.0 X 14.0 X 7.0mm | ||
| 6925 | 6925MHz | MBP-C6925_1350MH-A-R1 | Band Pass Filter | BEAD | 50Ohm | 1350MHz | 2.0dB | 12dB | 60dB min @ 4000MHz 55dB min @ 9200MHz | 33.0 X 12.0 X 6.0mm | ||
| 7000 | 7000MHz | MBP-C7000_1000MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 1000MHz | 1.0dB | 15dB | 30dB min @ 5000MHz 30dB min @ 9000MHz | 25.0 X 12.0 X 7.0mm | ||
| 7500 | 7500MHz | MBP-C7500_500MM-A-R0 | Band Pass Filter | SMD | 50Ohm | 500MHz | 1.8dB | 15dB | 85dB min @ 7900 ~ 8400MHz | 31.0 X 19.0 X 5.0mm | ||
| 8150 | 8150MHz | MBP-C8150_700MB-A-R3 | Band Pass Filter | BEAD | 50Ohm | 700MHz | 3.0dB | 15dB | 30dBc min @ DC ~ 5200MHz 60dBc min @ 5300 ~ 7050MHz 30dBc min @ 8800 ~ 11000MHz | 25.0 X 6.0 X 10.0mm | ||
| 3500 | 3500MHz | MBP-C3500_200ML-A-R0-A | Band Pass Filter | SMD | 50Ohm | 200MHz | 1.0dB | 15dB | 20dB min @ 100 ~ 3340MHz 20dB min @ 3660 ~ 5000MHz | 32.0 X 20.0 X 7.2mm | ||
| 3500 | 3500MHz | MBP-C3500_200ML-A-R0-B | Band Pass Filter | SMD | 50Ohm | 200MHz | 1.0dB | 14dB | 10dB min @ DC ~ 3360MHz 10dB min @ 3640 ~ 5500MHz | 31.0 X 20.0 X 7.3mm | ||
| 3525 | 3525MHz | MBP-C3525_2.45GL-A-R8 | Band Pass Filter | BEAD | 50Ohm | 2450MHz | 2.5dB | 10dB | 20dB min @ 2000MHz 50dB min @ 6000MHz | 30.0 X 10.0 X 8.0mm | ||
| 3625 | 3625MHz | MBP-C3625_2.25GL-A-R6 | Band Pass Filter | BEAD | 50Ohm | 2250MHz | 2.5dB | 10dB | 20dB min @ 2000MHz 50dB min @ 6000MHz | 30.0 X 10.0 X 8.0mm | ||
| 3750 | 3750MHz | MBP-C3750_100ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 100MHz | 4.0dB | 15dB | 60dB min @ DC ~ 3330MHz 60dB min @ 4185 ~ 7500MHz | 25.0 X 10.0 X 6.0mm | ||
| 3750 | 3750MHz | MBP-C3750_500ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 500MHz | 3.0dB | 15dB | 60dB min @ DC ~ 3150MHz 60dB min @ 4675 ~ 8000MHz | 25.0 X 10.0 X 6.0mm | ||
| 3750 | 3750MHz | MBP-C3750_1000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 1000MHz | 2.0dB | 15dB | 60dB min @ DC ~ 2925MHz 60dB min @ 4675 ~ 8000MHz | 20.0 X 10.0 X 6.0mm | ||
| 3750 | 3750MHz | MBP-C3750_1500ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 1500MHz | 2.5dB | 15dB | 70dB min @ 1500 ~ 2500MHz 55dB min @ 5500MHz 55dB min @ 7500MHz | 20.0 X 10.0 X 6.0mm | ||
| 3750 | 3750MHz | MBP-C3750_1700ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 1700MHz | 2.0dB | 15dB | 40dB min @ 2500MHz 40dB min @ 5010MHz | 20.0 X 10.0 X 6.0mm | ||
| 3750 | 3750MHz | MBP-C3750_2000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2000MHz | 2.0dB | 15dB | 60dB min @ DC ~ 2475MHz 60dB min @ 5225 ~ 8000MHz | 20.0 X 10.0 X 6.0mm | ||
| 3755 | 3755MHz | MBP-C3755_1590ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 1590MHz | 2.0dB | 15dB | 40dBc min @ 20 ~ 2275MHz 40dBc min @ 4900 ~ 5900MHz 40dBc min @ 6300 ~ 6700MHz 40dBc min @ 6710 ~ 7800MHz | 15.0 X 10.0 X 5.5mm | ||
| 3755 | 3755MHz | MBP-C3755_1590ML-B-R1 | Band Pass Filter | SMD | 50Ohm | 1590MHz | 2.0dB | 15dB | 40dBc min @ 20 ~ 2275MHz 30dBc min @ 4900 ~ 5900MHz 30dBc min @ 6300 ~ 6700MHz 30dBc min @ 6710 ~ 7800MHz | 15.0 X 10.0 X 5.0mm | ||
| 4000 | 4000MHz | MBP-C4000_500ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 500MHz | 3.0dB | 15dB | 60dB min @ 750 ~ 1250MHz 55dB min @ 1875 ~ 2125MHz 45dB min @ 5000MHz 60dB min @ 5750 ~ 6250MHz | 26.6 X 10.0 X 6.0mm | ||
| 4000 | 4000MHz | MBP-C4000_2000ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2000MHz | 2.0dB | 15dB | 45dB min @ DC ~ 2500MHz 45dB min @ 5500 ~ 10000MHz | 44.0 X 14.0 X 9.0mm | ||
| 4100 | 4100MHz | MBP-C4100_1200ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 1200MHz | 1.7dB | 14dB | 50dB min @ 50 ~ 2500MHz 50dB min @ 5700 ~ 7000MHz | 35.0 X 12.0 X 9.0mm | ||
| 4250 | 4250MHz | MBP-C4250_3700MH-A-R0 | Band Pass Filter | BEAD | 50Ohm | 3700MHz | 2.5dB | 15dB | 40dBc min @ DC ~ 2000MHz 30dBc min @ 6500 ~ 6800MHz 40dBc min @ 6800 ~ 10000MHz | 25.0 X 10.0 X 6.0mm | ||
| 4264 | 4264.5MHz | MBP-C4264.5_650ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 650MHz | 1.5dB | 15dB | 60dB min @ DC ~ 1267MHz 25dB min @ 5200 ~ 5750MHz 40dB min @ 5750 ~ 12000MHz | 25.4 X 12.7 X 6.4mm | ||
| 4500 | 4500MHz | MBP-C4500_4GL-A | Band Pass Filter | BEAD | 50Ohm | 4000MHz | 2.5dB | 10dB | 20dB min @ 2000MHz 50dB min @ 8000MHz | 30.0 X 10.0 X 8.0mm | ||
| 4650 | 4650MHz | MBP-C4650_700ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 700MHz | 1.5dB | 15dB | 40dB min @ DC ~ 4100MHz 40dB min @ 5200 ~ 5300MHz 45dB min @ 6000MHz | 14.0 X 7.0 X 4.9mm | ||
| 4900 | 4900MHz | MBP-C4900_2.2GS-A | Band Pass Filter | Connectorized | 50Ohm | 2200MHz | 1.5dB | 12dB | 30dB min @ DC ~ 3400MHz 35dB min @ 7600 ~ 11800MHz | 48.0 X 15.0 X 8.0mm | ||
| 2400 | 2400MHz | MBP-C2400_1600ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 1600MHz | 2.0dB | 15dB | 35dB min @ 800MHz 35dB min @ 4000MHz | 23.0 X 10.0 X 5.5mm | ||
| 2450 | 2450MHz | MBP-C2450-200ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 200MHz | 1.5dB | 15dB | 30dB min @ 2200MHz 40dB min @ 5000MHz | 29.97 X 30.48 X 11.68mm | ||
| 2450 | 2450MHz | MBP-C2450-200MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 200MHz | 1.0dB | 16dB | 30dB min @ 2200MHz 50dB min @ 5000MHz | 46.0 X 126.0 X 39.0mm | ||
| 2496 | 2496MHz | MBP-C2496_110ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 110MHz | 2.0dB | 12dB | 70dBc min @ 10 ~ 2060MHz 60dBc min @ 2060 ~ 2200MHz 50dBc min @ 2200 ~ 2300MHz 50dBc min @ 2690 ~ 2900MHz 60dBc min @ 2900 ~ 4000MHz | 50.8 X 19.05 X 6.1mm | ||
| 2500 | 2500MHz | MBP-C2500_1GL-A | Band Pass Filter | SMD | 50Ohm | 1000MHz | 2.0dB | 15dB | 40dBc min @ DC ~ 20MHz 30dBc min @ 1100MHz 30dBc min @ 4000MHz 40dBc min @ 6000MHz | 25.0 X 9.0 X 8.0 mm | ||
| 2500 | 2500MHz | MBP-C2500_1000ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 1000MHz | 2.0dB | 15dB | 40dB min @ DC ~ 1700MHz 40dB min @ 3300 ~ 6000MHz | 20.0 X 10.0 X 6.0mm | ||
| 2596 | 2596MHz | MBP-C2596_110ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 110MHz | 2.0dB | 12dB | 70dBc min @ DC ~ 2060MHz 60dBc min @ 2060 ~ 2300MHz 50dBc min @ 2790 ~ 3000MHz 60dBc min @ 3000 ~ 4000MHz | 50.8 X 19.05 X 6.1mm | ||
| 2600 | 2600MHz | MBP-C2600_200MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 200MHz | 1.5dB | 15dB | 30dB min @ 2200MHz 50dB min @ 5000MHz | 50.0 X 35.0 X 10.0mm | ||
| 2600 | 2600MHz | MBP-C2600_300ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 300MHz | 2.0dB | 15dB | 35dBc min @ DC ~ 1950MHz 20dBc min @ 1950 ~ 2100MHz 30dBc min @ 3100 ~ 3250MHz 350dBc min @ 3250 ~ 5200MHz 45dBc min | 25.4 X 10.0 X 6.8mm | ||
| 2800 | 2800MHz | MBP-C2800_200ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 200MHz | 3.0dB | 15dB | 30dBc min @ F0 ±400MHz 50dBc min @ F0 ±700MHz | 15.0 X 10.0 X 4.0mm | ||
| 2935 | 2935MHz | MBP-C2935_70ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 70MHz | 4.0dB | 15dB | 60dBc min @ DC ~ 2400MHz 40dBc min @ 2060 ~ 2700MHz 30dBc min @ 3200 ~ 3400MHz 60dBc min @ 3400 ~ 8000MHz | 31.8 X 10.0 X 6.8mm | ||
| 3000 | 3000MHz | MBP-C3000_50ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 50MHz | 3.0dB | 15dB | 50dBc min @ DC ~ 900MHz 70dBc min @ 1000MHz 60dBc min @ 2000MHz 60dBc min @ 4000MHz 40dBc min @ 5000 ~ 6000MHz | 0.75 X 0.5 X 0.4inch | ||
| 3000 | 3000MHz | MBP-C3000_600ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 600MHz | 3.0dB | 15dB | 30dBc min @ F0 ±600MHz 50dBc min @ F0 ±900MHz | 15.0 X 10.0 X 4.0mm | ||
| 3000 | 3000MHz | MBP-C3000_1000ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 1000MHz | 1.7dB | 14dB | 50dB min @ 50 ~ 1700MHz 50dB min @ 4400 ~ 6000MHz | 35.0 X 12.0 X 9.0mm | ||
| 3000 | 3000MHz | MBP-C3000_1500ML-A-R5 | Band Pass Filter | SMD | 50Ohm | 1500MHz | 2.0dB | 15dB | 25dB min @ 1750MHz 50dB min @ 4250 ~ 6000MHz | 26.6 X 10.0 X 6.0mm | ||
| 3000 | 3000MHz | MBP-C3000_2000ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 2000MHz | 1.6dB | 15dB | 25dB min @ DC ~ 1500MHz 25dB min @ 4500 ~ 7000MHz | 36.0 X 20.0 X 7.5mm | ||
| 3060 | 3060MHz | MBP-C3060_2ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2MHz | 0.6dB | 15dB | 48dB min @ 4200 ~ 9000MHz 48dB min @ 9000 ~ 18000MHz | 50.85 X 12.7 X 10.16mm | ||
| 3100 | 3100MHz | MBP-C3100_400ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 400MHz | 3.0dB | 15dB | 30dBc min @ F0 ±500MHz 50dBc min @ F0 ±800MHz | 15.0 X 10.0 X 4.0mm | ||
| 3100 | 3100MHz | MBP-C3100_400ML-B-R0 | Band Pass Filter | BEAD | 50Ohm | 400MHz | 4.0dB | 16dB | 50dBc min @ DC ~ 2600MHz 10dBc min @ 2600 ~ 2780MHz 30dBc min @ 3590 ~ 6000MHz | 46.4 X 10.0 X 6.8mm | ||
| 3100 | 3100MHz | MBP-C3100_500MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 500MHz | 1.5dB | 15dB | 40dBc min @ DC ~ 2500MHz 40dBc min @ 3600 ~ 6000MHz | 30.0 X 12.0 X 8.0mm | ||
| 1750 | 1750MHz | MBP-C1750-500ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 500MHz | 3.0dB | 15dB | 30dB min @ DC ~ 1300MHz 30dB min @ 2100 ~ 3000MHz | 18.0 X 10.0 X 6.0mm | ||
| 1750 | 1750MHz | MBP-C1750-500MS-A-R0 | Band Pass Filter | SMD | 50Ohm | 500MHz | 3.0dB | 15dB | 30dB min @ DC ~ 1300MHz 30dB min @ 2100 ~ 3000MHz | 20.0 X 10.0 X 6.0mm | ||
| 1772 | 1772.5MHz | MBP-C1772.5_1605ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 1605MHz | 1.5dB | 15dB | 30dB min @ 850MHz 30dB min @ 2800MHz | 20.0 X 10.0 X 6.0mm | ||
| 1787 | 1787.5MHz | MBP-C1787.5_2605MH-A-R0 | Band Pass Filter | BEAD | 50Ohm | 2605MHz | 1.3dB | 15dB | 50dB min @ 100MHz 30dB min @ 200MHz 30dB min @ 4000MHz | 30.0 X 12.0 X 8.0mm | ||
| 1787 | 1787.5MHz | MBP-C1787.5_2605ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 2605MHz | 1.5dB | 15dB | 50dB min @ 100MHz 30dB min @ 200MHz 30dB min @ 4000MHz | 20.0 X 10.0 X 6.0mm | ||
| 1800 | 1800MHz | MBP-C1800_200MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 200MHz | 1.5dB | 15dB | 30dB min @ 1575MHz 30dB min @ 2400MHz | 50.0 X 35.0 X 10.0mm | ||
| 1800 | 1800MHz | MBP-C1800_250ML-A | Band Pass Filter | SMD | 50Ohm | 250MHz | 5.0dB | 12dB | 40dB min @ 2000MHz | 22.0 X 11.0 X 9.0mm | ||
| 1800 | 1800MHz | MBP-C1800_1000ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 1000MHz | 2.0dB | 14dB | 30dB min @ 1000MHz 30dB min @ 2600 ~ 4000MHz | 20.0 X 10.0 X 6.0mm | ||
| 1800 | 1800MHz | MBP-C1800_2000ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 2000MHz | 2.0dB | 15dB | 30dB min @ 500MHz 30dB min @ 3100MHz | 32.0 X 11.0 X 7.2mm | ||
| 1820 | 1820MHz | MBP-C1820_100MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 100MHz | 1.0dB | 15dB | 35dB min @ DC ~ 1575MHz 40dB min @ 2065 ~ 3400MHz 20dB min @ 3400 ~ 4000MHz TBD min @ 4000 ~ 6000MHz | 25.0 X 18.0 X 8.0mm | ||
| 1920 | 1920MHz | MBP-C1920_430ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 430MHz | 2.0dB | 15dB | 55dB min @ DC ~ 1420MHz 55dB min @ 2402 ~ 3000MHz 40dB min @ 3000 ~ 3500MHz 50dB min @ 3500 ~ 5000MHz | 20.0 X 10.0 X 5.0mm | ||
| 2000 | 2000MHz | MBP-C2000_500ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 500MHz | 1.8dB | 15dB | 45dB min @ 750 ~ 1250MHz 60dB min @ 3000MHz 60dB min @ 3750 ~ 4250MHz | 15.0 X 10.0 X 6.0mm | ||
| 2000 | 2000MHz | MBP-C2000_1000ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 1000MHz | 1.5dB | 15dB | 20dB min @ DC ~ 500MHz 15dB min @ 2700 / 2900MHz 20dB min @ 2900 / 5500MHz 40dB min @ 5500 / 7250MHz 38dB min @ 5750MHz 45dB min @ 7250MHz | 20.0 X 10.0 X 7.0mm | ||
| 2050 | 2050MHz | MBP-C2050-300ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 300MHz | 1.5dB | 15dB | 30dB min @ 1575MHz 30dB min @ 2400MHz | 29.97 X 30.48 X 11.68mm | ||
| 2085 | 2085MHz | MBP-C2085_320ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 320MHz | 2.5dB | 15dB | 85dB min @ DC ~ 500MHz 80dB min @ 1085MHz 60dB min @ 1575MHz 60dB min @ 2595MHz 80dB min @ 3085MHz 85dB min @ 3200MHz | 1.5 X 0.5 X 4inch | ||
| 2100 | 2100MHz | MBP-C2100_60MD-A-R0 | Band Pass Filter | BEAD | 50Ohm | 60MHz | 2.9dB | 10dB | 80dB min @ 10 ~ 1800MHz 80dB min @ 2400 ~ 3000MHz | 38.1 X 19.05 X 6.3mm | ||
| 2175 | 2175MHz | MBP-C2175_750ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 750MHz | 1.5dB | 14d | 50dB min @ 50 ~ 1400MHz 50dB min @ 2900 ~ 3000MHz | 25.0 X 10.0 X 8.0mm | ||
| 2247 | 2247.5MHz | MBP-C2247.5_95MN-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 95MHz | 0.8dB | 15dB | 70dB min @ 2025 ~ 2120MHz 60dB min @ 2305MHz 60dB min @ 2400MHz | 170.0 X 60.0 X 40.0mm | ||
| 2247 | 2247.5MHz | MBP-C2247.5_95MS-A-R1 | Band Pass Filter | Connectorized | 50Ohm | 95MHz | 0.8dB | 15dB | 70dB min @ 2025 ~ 2120MHz 60dB min @ 2305MHz 60dB min @ 2400MHz | 170.0 X 60.0 X 40.0mm | ||
| 2400 | 2400MHz | MBP-C2400_200MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 200MHz | 3.0dB | 15dB | 45dB min @ 2050MHz 45dB min @ 2750MHz | 35.0 X 12.0 X 9.0mm | ||
| 1230 | 1230MHz | MBP-C1230_140MB-D | Band Pass Filter | SMD | 50Ohm | 140MHz | 3.5dB | 15dB | 28dB min @ 900 ~ 1130MHz 28dB min @ 1330 ~ 1850MHz | 1.4 X 1.1 X 0.75mm | ||
| 1266 | 1266MHz | MBP-C1266_60MD-A-R0 | Band Pass Filter | BEAD | 50Ohm | 60MHz | 3.5dB | 14dB | 80dB min @ DC ~ 633MHz 67dB min @ 1030MHz 12dB min @ 1210.32MHz 12dB min @ 1322.82MHz 80dB min @ 1899 ~ 2532MHz 40dB min @ 3900 ~ 5800MHz | 25.4 X 12.7 X 10.16mm | ||
| 1300 | 1300MHz | MBP-C1300_2.5GS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 2500MHz | 2.0dB | 14dB | 10dB min @ 470MHz 20dB min @ 3400MHz 50dB min @ 450&3600MHz | 50.0 X 20.0 X 15.0mm | ||
| 1300 | 1300MHz | MBP-C1300_425ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 425MHz | 2.5dB | 15dB | 70dB min @ DC ~ 400MHz 55dB min @ 500 ~ 600MHz 40dB min @ 700 ~ 800MHz 40dB min @ 1800 ~ 2200MHz 55dB min @ 2300 ~ 2700MHz 70dB min @ 2800 ~ 3650MHz | 30.0 X 13.0 X 4.5mm | ||
| 1300 | 1300MHz | MBP-C1300-600MS-A-R1 | Band Pass Filter | SMD | 50Ohm | 600MHz | 3.0dB | 15dB | 30dB min @ DC ~ 800MHz 30dB min @ 1800 ~ 3000MHz | 18.0 X 10.0 X 6.0mm | ||
| 1350 | 1350MHz | MBP-C1350_500ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 500MHz | 1.8dB | 15dB | 15dBc min @ DC ~ 700MHz 15dBc min @ 2100 ~ 3000MHz | 8.0 X 8.0 X 6.0mm | ||
| 1350 | 1350MHz | MBP-C1350_500MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 500MHz | 2.0dB | 15dB | 45dB min @ 900MHz 45dB min @ 1800MHz | 35.0 X 12.0 X 9.0mm | ||
| 1375 | 1375MHz | MBP-C1375_300ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 300MHz | 3.0dB | 15dB | 50dB min @ 1045MHz 40dB min @ 1660MHz | 22.0 X 12.0 X 8.0mm | ||
| 1400 | 1400MHz | MBP-C1400_20MD-A-R0 | Band Pass Filter | BEAD | 50Ohm | 20MHz | 4.5dB | 15dB | 45dBc min @ DC ~ 1300MHz 65dBc min @ 1500MHz 80dBc min @ 1600MHz 45dBc min @ 1700 ~ 3000MHz | 19.05 X 16.51 X 8.89mm | ||
| 1550 | 1550MHz | MBP-C1550_1200ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 1200MHz | 1.0dB | 15dB | 50dB min @ 860MHz 10dB min @ 2200MHz | 30.0 X 14.0 X 8.0mm | ||
| 1560 | 1560MHz | MBP-C1560_80MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 80MHz | 1.5dB | 15dB | 40dB min @ 1000MHz 40dB min @ 2100MHz | 35.0 X 50.0 X 10.0mm | ||
| 1575 | 1575MHz | MBP-C1575_70MB | Band Pass Filter | SMD | 50Ohm | 70MHz | 3.0dB | 15dB | 30dB min @ 1100 ~ 1500MHz 20dB min @ 1500 ~ 1511MHz 20dB min @ 1650 ~ 1670MHz 30dB min @ 1670 ~ 2500MHz | 3.0 X 3.0 X 0.75mm | ||
| 1575 | 1575MHz | MBP-C1575_70MB-C | Band Pass Filter | SMD | 50Ohm | 70MHz | 3.0dB | 15dB | 30dB min @ 900 ~ 1504MHz 20dB min @ 1504 ~ 1510MHz 20dB min @ 1637 ~ 1640MHz 30dB min @ 1640 ~ 1850MHz | 1.4 X 1.1 X 0.75mm | ||
| 1600 | 1600MHz | MBP-C1600_20MD-A-R0 | Band Pass Filter | BEAD | 50Ohm | 20MHz | 4.5dB | 15dB | 50dBc min @ DC ~ 1300MHz 70dBc min @ 1400MHz 50dBc min @ 1500MHz 50dBc min @ 1700 ~ 3000MHz | 19.05 X 16.51 X 8.89mm | ||
| 1600 | 1600MHz | MBP-C1600_20MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 20MHz | 3.7dB | 18dB | 40dB min @ 1540MHz 45dB min @ 1660MHz | 31.75 X 31.75 X 14.29mm | ||
| 1600 | 1600MHz | MBP-C1600_400ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 400MHz | 1.8dB | 14dB | 50dB min @ 50 ~ 1200MHz 50dB min @ 2000 ~ 3000MHz | 25.0 X 10.0 X 8.0mm | ||
| 1600 | 1600MHz | MBP-C1600_800ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 800MHz | 2.0dB | 15dB | 40dB min @ DC ~ 1000MHz 50dB min @ 2200 ~ 4000MHz | 20.0 X 10.0 X 6.0mm | ||
| 1639 | 1639.5MHz | MBP-C1639.5_421ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 421MHz | 3.0dB | 15dB | 60dBc min @ 200 ~ 1150MHz 60dBc min @ 2180 ~ 2485MHz | 10.0 X 20.0 X 6.0mm | ||
| 1700 | 1700MHz | MBP-C1700_400ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 400MHz | 3.0dB | 15dB | 50dB min @ 1250MHz 40dB min @ 2050MHz | 22.0 X 12.0 X 8.0mm | ||
| 1700 | 1700MHz | MBP-C1700_600ML-A-R4 | Band Pass Filter | BEAD | 50Ohm | 600MHz | 2.0dB | 15dB | 55dBc min @ DC ~ 1100MHz 55dBc min @ 2300 ~ 4000MHz | 30.0 X 12.5 X 10.0mm | ||
| 1000 | 1000MHz | MBP-C1000_500ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 500MHz | 1.5dB | 15dB | 60dB min @ 400MHz 60dB min @ 1600 ~ 2600MHz 50dB min @ 2600 ~ 3000MHz | 15.0 X 10.0 X 6.0mm | ||
| 1000 | 1000MHz | MBP-C1000_500MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 500MHz | 4.0dB | 14dB | 55dB min @ 10 ~ 600MHz 20dB min @ 700MHz 10dB min @ 725MHz 10dB min @ 1275MHz 40dB min @ 1300MHz 55dB min @ 1500 ~ 10000MHz | 25.0 X 67.0 X 17.0mm | ||
| 1021 | 1021MHz | MBP-C1021_266ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 266MHz | 2.0dB | 13dB | 40dB min @ DC ~ 579MHz 35dB min @ 1332MHz 65dB min @ 1776MHz | 27.0 X 10.0 X 8.0mm | ||
| 1024 | 1024MHz | MBP-C1024_1024ML-A-R1 | Band Pass Filter | Connectorized | 50Ohm | 1024MHz | 1.0dB | 14dB | 25dBc min @ 256MHz 40dB min @ 2048MHz | 30.0 X 12.0 X 8.0mm | ||
| 1060 | 1060MHz | MBP-C1060_200ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 200MHz | 3.0dB | 15dB | 35dB min @ DC ~ 800MHz 30dB min @ 1360 ~ 1920MHz 45dB min @ 1920 ~ 2300MHz | 31.0 X 18.0 X 6.7mm | ||
| 1065 | 1065MHz | MBP-C1065_70ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 70MHz | 2.0dB | 14dBr | 70dBc min @ DC ~ 650MHz 55dBc min @ 820 & 1240MHz 65dBc min @ 1410MHz 65dBc min @ 1500 ~ 3000MHz 50dBc min @ 3000 ~ 5000MHz | 24.5 X 47.18 X 10.9mm | ||
| 1071 | 1071MHz | MBP-C1071_410ML-A | Band Pass Filter | SMD | 50Ohm | 410MHz | 3.0dB | 15dB | 60dB min @ DC ~ 700MHz 60dB min @ 1500 ~ 4000MHz | 30.0 X 12.5 X 10.0mm | ||
| 1080 | 1080MHz | MBP-C1080_10MH-A-R0 | Band Pass Filter | SMD | 50Ohm | 10MHz | 3.0dB | 14dB | 80dBc min @ DC ~ 960MHz 80dBc min @ 1200 ~ 2000MHz | 30.0 X 12.0 X 7.0mm | ||
| 1090 | 1090MHz | MBP-C1090_53ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 53MHz | 1.8dB | 14dB | 47dB min @ DC ~ 980MHz 25dB min @ 980 ~ 1030MHz 22dB min @ 1150 ~ 1200MHz 40dB min @ 1200 ~ 3000MHz | 19.68 X 33.32 X 7.62mm | ||
| 1100 | 1100MHz | MBP-C1100_280MH-A | Band Pass Filter | BEAD | 50Ohm | 280MHz | 5.0dB | 12dB | 60dB min @ 512MHz 55dB min @ 1800MHz | 34.9 X 13.0 X 10.1mm | ||
| 1100 | 1100MHz | MBP-C1100_280ML-A | Band Pass Filter | Connectorized | 50Ohm | 280MHz | 1.6dB | 15dB | 30dBc min @ DC ~ 750MHz 30dBc min @ DC ~ 1500MHz 60dBc min @ 3000 ~ 8000MHz | 54.4 X 27.0 X 13.0mm | ||
| 1125 | 1125MHz | MBP-C1125_500ML-A | Band Pass Filter | SMD | 50Ohm | 500MHz | 4.5dB | 13dB | 35dB min @ 775MHz 35dB min @ 1475MHz | 20.0 X 10.0 X 6.0mm | ||
| 1125 | 1125MHz | MBP-C1125_1250ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 1250MHz | 1.5dB | 15dB | 45dB min @ 250MHz 30dB min @ 2000 ~ 3500MHz 10dB min @ 3500 ~ 4000MHz | 15.0 X 10.0 X 6.0mm | ||
| 1150 | 1150MHz | MBP-C1150_500ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 500MHz | 1.5dB | 14dB | 50dB min @ 50 ~ 650MHz 50dB min @ 1650 ~ 3000MHz | 25.0 X 10.0 X 8.0mm | ||
| 1200 | 1200MHz | MBP-C1200_400ML-A-R4 | Band Pass Filter | BEAD | 50Ohm | 400MHz | 2.0dB | 15dB | 55dBc min @ DC ~ 700MHz 55dBc min @ 1700 ~ 3000MHz | 30.0 X 12.5 X 10.0mm | ||
| 1208 | 1208.5MHz | MBP-C1208.5_85MN-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 85MHz | 0.6dB | 12dB | 80dB min @ DC ~ 1144MHz 40dB min @ 1155MHz 3dB min @ 1160MHz 3dB min @ 1255MHz 40dB min @ 1290MHz 80dB min @ 1308 ~ 6000MHz | 254.0 X 416.0 X 70.0mm | ||
| 1210 | 1210MHz | MBP-C1210_25MD-A-R0 | Band Pass Filter | BEAD | 50Ohm | 25MHz | 4.1dB | 16dB | 60dB min @ DC ~ 1020MHz 70dB min @ 1020 ~ 1040MHz 60dB min @ 1040 ~ 1151MHz 58dB min @ 1151 ~ 1154MHz 53dB min @ 1266.6 ~ 1278.6MHz 60dB min @ 1278.6 ~ 3000MHz 50dB min @ 3000 ~ 6000MHz | 43.69 X 22.86 X 7.37mm | ||
| 1210 | 1210MHz | MBP-C1210_65MD-A-R0 | Band Pass Filter | BEAD | 50Ohm | 65MHz | 3.5dB | 14dB | 70dB min @ DC ~ 1030MHz 45dB min @ 1322.82MHz 70dB min @ 1500 ~ 3000MHz 50dB min @ 3001 ~ 6000MHz | 25.4 X 12.7 X 10.16mm | ||
| 1223 | 1223MHz | MBP-C1223_114MN-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 114MHz | 0.6dB | 12dB | 80dB min @ DC ~ 1144MHz 40dB min @ 1100MHz 3dB min @ 1150MHz 3dB min @ 1285MHz 40dB min @ 1290MHz 80dB min @ 1308 ~ 6000MHz | 254.0 X 444.0 X 69.0mm | ||
| 1230 | 1230MHz | MBP-C1230_130MB | Band Pass Filter | SMD | 50Ohm | 130MHz | 3.5dB | 15dB | 23dB min @ 400 ~ 1050MHz 23dB min @ 1400 ~ 2000MHz | 3.0 X 3.0 X 0.75mm | ||
| 670 | 670MHz | MBP-C670_70ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 70MHz | 4.0dB | 15dB | 35dB min @ 332 ~ 338MHz 60dB min @ 524 ~ 536MHz 45dB min @ 1200 ~ 1800MHz | 20.0 X 10.0 X 6.0mm | ||
| 675 | 675MHz | MBP-C675_950ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 950MHz | 3.0dB | 15dB | 60dBc min @ 1429 ~ 1850MHz 60dBc min @ 2180 ~ 2485MHz | 16.0 X 8.0 X 5.0mm | ||
| 700 | 700MHz | MBP-C700_400ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 400MHz | 1.5dB | 14dB | 50dB min @ 50 ~ 300MHz 50dB min @ 1200 ~ 3000MHz | 25.0 X 10.0 X 8.0mm | ||
| 700 | 700MHz | MBP-C700-200ML-A-R1 | Band Pass Filter | Connectorized | 50Ohm | 200MHz | 3.0dB | 15dB | 35dB min @ DC ~ 550MHz 35dB min @ 900 ~ 2000MHz | 40.0 X 20.0 X 12.0mm | ||
| 745 | 745MHz | MBP-C745_110MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 110MHz | 2.5dB | 14dB | 30dB min @ 600MHz 30dB min @ 900MHz | 40.0 X 34.0 X 12.0mm | ||
| 750 | 750MHz | MBP-C750_250ML-A | Band Pass Filter | SMD | 50Ohm | 250MHz | 3.2dB | 15dB | 50dB min @ 500MHz 50dB min @ 1000MHz | 26.6 X 10.0 X 5.8mm | ||
| 750 | 750MHz | MBP-C750-100ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 100MHz | 1.0dB | 15dB | 30dB min @ 100 ~ 500MHz 50dB min @ 1500 ~ 3000MHz | 12.0 X 30.0 X 10.0mm | ||
| 785 | 785MHz | MBP-C785_830ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 830MHz | 1.8dB | 15dB | 10dB min @ 300MHz 10dB min @ 1300MHz 30dB min @ 1300MHz 30dB min @ 1700 ~ 3000MHz | 35.0 X 12.0 X 8.0mm | ||
| 800 | 800MHz | MBP-C800_80ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 80MHz | 1.4dB | 15dB | 22dBc min @ 920MHz 40dBc min @ 1080MHz | 31.8 X 12.7 X 6.1mm | ||
| 800 | 800MHz | MBP-C800_80ML-B-R1 | Band Pass Filter | BEAD | 50Ohm | 80MHz | 2.5dB | 10dB | 60dBc min @ 10 ~ 400MHz 20dBc min @ 400 ~ 710MHz 20dBc min @ 900 ~ 950MHz 40dB min @ 950 ~ 1200MHz 60dB min @ 1200 ~ 1400MHz | 25.4 X 12.7 X 6.1mm | ||
| 850 | 850MHz | MBP-C850_300ML-A-R4 | Band Pass Filter | BEAD | 50Ohm | 300MHz | 2.0dB | 15dB | 55dBc min @ DC ~ 500MHz 55dBc min @ 1200 ~ 3000MHz | 30.0 X 12.5 X 10.0mm | ||
| 880 | 880MHz | MBP-C880_800MS-A | Band Pass Filter | Connectorized | 50Ohm | 800MHz | 0.85dB | 15dB | 60dB min @ DC ~ 250MHz 20dB min @ 250 ~ 500MHz 60dB min @ 1500 ~ 3000MHz | 91.0 X 35.0 X 20.0mm | ||
| 900 | 900MHz | MBP-C900_300ML-A | Band Pass Filter | SMD | 50Ohm | 300MHz | 2.0dB | 15dB | 40dBc min @ DC ~ 400MHz 60dBc min @ 1700MHz 40dBc min @ 6000MHz | 25.0 X 9.0 X 8.0 mm | ||
| 900 | 900MHz | MBP-C900_800ML-A | Band Pass Filter | BEAD | 50Ohm | 800MHz | 2.0dB | 15dB | 60dBc min @ 370MHz 30dBc min @ 1500MHz 60dBc min @ 1650 ~ 4000MHz | 38.0 X 10.0 X 8.0mm | ||
| 900 | 900MHz | MBP-C900-400MS-A-R1 | Band Pass Filter | SMD | 50Ohm | 400MHz | 3.0dB | 15dB | 30dB min @ DC ~ 550MHz 30dB min @ 1300 ~ 2000MHz | 18.0 X 10.0 X 6.0mm | ||
| 909 | 909MHz | MBP-C909_182MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 182MHz | 2.0dB | 15dB | 45dB min @ 709MHz 45dB min @ 1109MHz | 35.0 X 12.0 X 9.0mm | ||
| 910 | 910.5MHz | MBP-C910.5_29MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 29MHz | 5.2dB | 15dB | 50dB min @ 50 ~ 850MHz 15dB min @ 930 ~ 960MHz 40dB min @ 960 ~ 2000MHz | 42.0 X 35.0 X 15.0mm | ||
| 930 | 930MHz | MBP-C930_20MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 20MHz | 1.0dB | 15dB | 50dB min @ 50 ~ 870MHz 30dB min @ 1000 ~ 2000MHz | 42.0 X 35.0 X 15.0mm | ||
| 930 | 930MHz | MBP-C930_20MS-B-R0 | Band Pass Filter | Connectorized | 50Ohm | 20MHz | 1.0dB | 15dB | 50dB min @ 50 ~ 870MHz 30dB min @ 1000 ~ 2000MHz | 42.0 X 35.0 X 15.0mm | ||
| 950 | 950MHz | MBP-C950_600ML | Band Pass Filter | SMD | 50Ohm | 600MHz | 1.5dB | 10dB | 40dB min @ DC ~ 300MHz 20dB min @ 450MHz 20dB min @ 1400MHz 40dB min @ 1600 ~ 2400MHz | 22.0 X 12.0 X 6.5mm | ||
| 425 | 425MHz | MBP-C425_50MN-A | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 1.5dB | 15dB | 60dB min @ DC ~ 260MHz 50dB min @ 650 ~ 6000MHz | 130.0 X 50.0 X 25.0mm | ||
| 425 | 425MHz | MBP-C425_150ML-A | Band Pass Filter | BEAD | 50Ohm | 150MHz | 2.5dB | 10dB | 30dBc min @ DC ~ 310MHz 30dBc min @ 540 ~ 650MHz 60dBc min @ 650 ~ 1500MHz | 40.0 X 12.5 X 10.0mm | ||
| 440 | 440MHz | MBP-C440_80ML | Band Pass Filter | Connectorized | 50Ohm | 80MHz | 3.0dB | 15dB | 30dB min @ 1 ~ 300MHz 20dB min @ 500 ~ 1000MHz | 100.0 X 38.0 X 19.0mm | ||
| 440 | 440MHz | MBP-C440-20MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 20MHz | 0.8dB | 18dB | 40dB min @ 410MHz 50dBc min @ 470MHz | 204.72 X 133.35 X 40.39mm | ||
| 450 | 450MHz | MBP-C450_40ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 40MHz | 1.0dB | 15dB | 15dB min @ 408MHz 15dB min @ 490MHz 50dB min @ 800MHz | 22.0 X 19.5 X 9.0mm | ||
| 450 | 450MHz | MBP-C450_100ML-A | Band Pass Filter | SMD | 50Ohm | 100MHz | 2.0dB | 15dB | 40dBc min @ DC ~ 220MHz 60dBc min @ 700MHz 40dBc min @ 6000MHz | 27.0 X 10.0 X 8.0mm | ||
| 450 | 450MHz | MBP-C450-140ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 140MHz | 1.5dB | 15dB | 50dB min @ 250MHz 50dB min @ 650MHz | 25.0 X 12.0 X 8.0mm | ||
| 460 | 460MHz | MBP-C460_30MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 30MHz | 1.0dB | 15dB | 45dB min @ 50 ~ 211MHz 45dB min @ 660 ~ 680MHz | 57.15 X 58.42 X 19.05mm | ||
| 500 | 500MHz | MBP-C500_10MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 10MHz | 2.0dB | 20dB | 60dBc min @ 290MHz 21dBc min @ 320MHz 21dBc min @ 370MHz 60dBc min @ 410MHz | 40.0 X 80.0 X 40.0mm | ||
| 500 | 500MHz | MBP-C500_200ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 20MHz | 2.0dB | 14dB | 50dB min @ 300MHz 50dB min @ 800MHz | 25.4 X 12.7 X 6.7mm | ||
| 517 | 517.5MHz | MBP-C517.5_215ML-A-R1 | Band Pass Filter | SMD | 50Ohm | 215MHz | 2.0dB | 15dB | 25dB min @ DC ~ 360MHz 25dB min @ 690 ~ 3000MHz | 22.0 X 12.0 X 8.0mm | ||
| 553 | 553MHz | MBP-C553_20ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 20MHz | 5.0dB | 16dB | 70dB min @ 250 ~ 493MHz 25dB min @ 493 ~ 533MHz 25dB min @ 573 ~ 613MHz 70dB min @ 613 ~ 900MHz 65dB min @ 900 ~ 1200MHz | 31.75 X 20.0 X 8.0mm | ||
| 587 | 587.5MHz | MBP-C587.5_225ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 225MHz | 2.0dB | 12dB | 32dBc min @ DC ~ 400MHz 32dBc min @ 800 ~ 1000MHz | 15.0 X 10.0 X 5.0mm | ||
| 600 | 600MHz | MBP-C600_200ML-A-R4 | Band Pass Filter | BEAD | 50Ohm | 200MHz | 2.0dB | 15dB | 55dBc min @ DC ~ 300MHz 55dBc min @ 900 ~ 3000MHz | 30.0 X 12.5 X 10.0mm | ||
| 605 | 605MHz | MBP-C605_210ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 210MHz | 2.0dB | 16dB | 60dBc min @ 250MHz 60dBc min @ 360MHz 20dBc min @ 750MHz 60dBc min @ 1062MHz | 23.0 X 10.0 X 6.0mm | ||
| 637 | 637.5MHz | MBP-C637.5_270ML | Band Pass Filter | SMD | 50Ohm | 270MHz | 1.5dB | 10dB | 40dB min @ DC ~ 300MHz 20dB min @ 400MHz 20dB min @ 900MHz 40dB min @ 1200 ~ 2400MHz | 22.0 X 12.0 X 6.5mm | ||
| 650 | 650MHz | MBP-C650-300MS-A-R1 | Band Pass Filter | SMD | 50Ohm | 300MHz | 3.0dB | 15dB | 30dB min @ DC ~ 400MHz 30dB min @ 900 ~ 2000MHz | 18.0 X 10.0 X 6.0mm | ||
| 665 | 665MHz | MBP-C665_70MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 70MHz | 2.0dB | 14dB | 30dB min @ 500MHz 30dB min @ 800MHz | 40.0 X 34.0 X 12.0mm | ||
| 670 | 670MHz | MBP-C670-30ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 30MHz | 4.5dB | 15dB | 50dB min @ 560MHz 50dB min @ 780MHz | 10.0 X 15.0 X 6.0mm | ||
| 670 | 670MHz | MBP-C670_60MC-A | Band Pass Filter | SMD | 50Ohm | 60MHz | 4.0dB | 14dB | 70dB min @ 600MHz 60dB min @ 740MHz | 42.0 X 17.0 X 9.0mm | ||
| 305 | 305MHz | MBP-C305_30MH-A | Band Pass Filter | BEAD | 50Ohm | 30MHz | 5.0dB | 9dB | 45dB min @ 255MHz 47dB min @ 400MHz | 34.9 X 13.0 X 10.1mm | ||
| 307 | 307MHz | MBP-C307_80ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 80MHz | 2.5dB | 15dB | 45dBc min @ DC ~ 182.4MHz 40dBc min @ 225MHz 28dBc min @ 374MHz 20dBc min @ 432 ~ 3000MHz | 31.0 X 18.0 X 6.7mm | ||
| 310 | 310MHz | MBP-C310-140ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 140MHz | 1.5dB | 15dB | 50dB min @ 140MHz 50dB min @ 480MHz | 25.0 X 12.0 X 8.0mm | ||
| 312 | 312.5MHz | MBP-C312.5_175MN-A | Band Pass Filter | Connectorized | 50Ohm | 175MHz | 1.6dB | 15dB | 30dB min @ 200MHz 30dB min @ 425 ~ 2000MHz | 145.0 X 52.0 X 29.0mm | ||
| 315 | 315MHz | MBP-C315_30ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 30MHz | 4.5dB | 12dB | 60dBc min @ 250MHz 21dBc min @ 290MHz 21dBc min @ 340MHz 60dBc min @ 380MHz | 20.0 X 10.0 X 6.0mm | ||
| 315 | 315.5MHz | MBP-C315.5_199ML-A-V1 | Band Pass Filter | Connectorized | 50Ohm | 199MHz | 1.2dB | 15dB | 55dB min @ 25 ~ 164MHz 55dB min @ 490 ~ 520MHz | 100.0 X 60.0 X 25.0mm | ||
| 333 | 333MHz | MBP-C333-6ML-A | Band Pass Filter | SMD | 50Ohm | 6MHz | 6.0dB | 15dB | 50dB min @ 307MHz 55dB min @ 353MHz | 80.0 X 40.0 X 12.0mm | ||
| 345 | 345MHz | MBP-C345_30ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 30MHz | 5.0dB | 12dB | 60dBc min @ 290MHz 21dBc min @ 320MHz 21dBc min @ 370MHz 60dBc min @ 410MHz | 20.0 X 10.0 X 6.0mm | ||
| 350 | 350MHz | MBP-C350_340ML-A | Band Pass Filter | BEAD | 50Ohm | 275MHz | 3.0dB | 15dB | 40dBc min @ 20 ~ 200MHz 40dBc min @ 590 ~ 6000MHz | 40.0 X 12.5 X 10.0mm | ||
| 350 | 350MHz | MBP-C350_360ML-A-R1 | Band Pass Filter | BEAD | 50Ohm | 360MHz | 1.5dB | 15dB | 30dB min @ DC ~ 120MHz 10dB min @ 120 ~ 150MHz 3dB min @ 150MHz 3dB min @ 600MHz 10dB min @ 600 ~ 650MHz 30dB min @ 650 ~ 2000MHz | 30.0 X 12.0 X 8.0mm | ||
| 362 | 362.5MHz | MBP-C362.5_275ML-A | Band Pass Filter | BEAD | 50Ohm | 340MHz | 3.0dB | 15dB | 40dBc min @ 20 ~ 160MHz 40dBc min @ 600 ~ 6000MHz | 40.0 X 12.5 X 10.0mm | ||
| 368 | 368.5MHz | MBP-C368.5_287MN-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 287MHz | 1.6dB | 15dB | 12dB min @ 200MHz 12dB min @ 537 ~ 2000MHz | 145.0 X 52.0 X 29.0mm | ||
| 375 | 375MHz | MBP-C375_125ML-A | Band Pass Filter | SMD | 50Ohm | 125MHz | 3.2dB | 15dB | 50dB min @ 250MHz 50dB min @ 500MHz | 26.6 X 10.0 X 5.8mm | ||
| 376 | 376.5MHz | MBP-C376.5_133MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 133MHz | 1.5dB | 18dB | 50dB min @ DC ~ 240MHz 50dB min @ 533 ~ 1700MHz | 85.0 X 50.0 X 30.0mm | ||
| 380 | 380MHz | MBP-C380_280ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 280MHz | 1.5dB | 14dB | 50dB min @ 50 ~ 150MHz 50dB min @ 700 ~ 3000MHz | 25.0 X 10.0 X 8.0mm | ||
| 382 | 382MHz | MBP-C382_5MN-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 5MHz | 1.5dB | 14dB | 55dB min @ 5MHz | 30.0 X 30.0 X 21.0mm | ||
| 385 | 385MHz | MBP-C385_230ML-A | Band Pass Filter | SMD | 50Ohm | 230MHz | 2.0dB | 15dB | 60dB min @ 210MHz 40dB min @ 230MHz 40dB min @ 540MHz 60dB min @ 560MHz 70dB min @ 1000 ~ 2000MHz | 80.0 X 20.0 X 6.0mm | ||
| 386 | 386.5MHz | MBP-C386.5_287ML-A | Band Pass Filter | SMD | 50Ohm | 287MHz | 2.0dB | 13dB | 30dBc min @ DC ~ 190MHz 30dBc min @ 600MHz 60dBc min @ 900 ~ 1250MHz | 30.0 X 10.0 X 6.0mm | ||
| 400 | 400MHz | MBP-C400_40ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 40MHz | 1.7dB | 9dB | 60dBc min @ 920MHz 60dBc min @ 1080MHz | 31.8 X 12.7 X 6.1mm | ||
| 400 | 400MHz | MBP-C400_40ML-B-R1 | Band Pass Filter | BEAD | 50Ohm | 40MHz | 2.5dB | 9dB | 60dBc min @ 10 ~ 200MHz 20dBc min @ 200 ~ 355MHz 20dBc min @ 450 ~ 475MHz 40dBc min @ 475 ~ 600MHz 60dBc min @ 600 ~ 1080MHz | 25.4 X 12.7 X 6.1mm | ||
| 215 | 215MHz | MBP-C215_30ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 30MHz | 2.0dB | 15dB | 15dBc min @ 180MHz 15dBc min @ 240MHz | 15.0 X 10.0 X 6.0mm | ||
| 230 | 230MHz | MBP-C230_10ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 10MHz | 3.5dB | 15dB | 30dBc min @ 200MHz 10dBc min @ 250MHz | 25.4 X 12.7 X 6.7mm | ||
| 243 | 243MHz | MBP-C243_12ML-A | Band Pass Filter | Connectorized | 50Ohm | 12MHz | 2.0dB | 12dB | 30dB min @ 219MHz 10dB min @ 267MHz | 32.0 X 12.5 X 10.0mm | ||
| 245 | 245MHz | MBP-C245_30ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 30MHz | 3.0dB | 15dB | 21dBc min @ 200MHz 60dBc min @ 190MHz 21dBc min @ 270MHz 60dBc min @ 290MHz | 20.0 X 10.0 X 6.0mm | ||
| 247 | 247.5MHz | MBP-C247.5_15MH-A | Band Pass Filter | BEAD | 50Ohm | 15MHz | 5.0dB | 12dB | 60dB min @ 200MHz 45dB min @ 290MHz | 34.9 X 13.0 X 10.1mm | ||
| 250 | 250MHz | MBP-C250_20MN-A | Band Pass Filter | Connectorized | 50Ohm | 20MHz | 1.5dB | 15dB | 60dB min @ DC ~ 160MHz 50dB min @ 400 ~ 6000MHz | 150.0 X 50.0 X 25.0mm | ||
| 255 | 255MHz | MBP-C255_10ML-B-R0 | Band Pass Filter | BEAD | 50Ohm | 10MHz | 3.5dB | 12dB | 40dBc min @ 200MHz 20dBc min @ 230MHz 5dBc min @ 245MHz 5dBc min @ 265MHz 20dBc min @ 280MHz 40dBc min @ 310MHz | 32.0 X 12.7 X 6.1mm | ||
| 255 | 255MHz | MBP-C255_10ML-C-R0 | Band Pass Filter | BEAD | 50Ohm | 10MHz | 4.5dB | 12dB | 55dBc min @ 200MHz 35dBc min @ 230MHz 5dBc min @ 245MHz 5dBc min @ 265MHz 35dBc min @ 280MHz 40dBc min @ 310MHz | 44.7 X 12.7 X 6.1mm | ||
| 255 | 255MHz | MBP-C255_20ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 20MHz | 3.5dB | 11dB | 55dBc min @ 200MHz 30dBc min @ 225MHz 5dBc min @ 240MHz 5dBc min @ 270MHz 25dBc min @ 285MHz 35dBc min @ 310MHz | 25.4 X 12.7 X 7.6mm | ||
| 255 | 255MHz | MBP-C255_20ML-B-R0 | Band Pass Filter | SMD | 50Ohm | 20MHz | 2.7dB | 9dB | 45dB min @ 210MHz 30dB min @ 300MHz | 25.4 X 12.7 X 7.6mm | ||
| 260 | 260MHz | MBP-C260_480ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 480MHz | 3.0dB | 15dB | 30dB min @ DC ~ 10MHz 3dB min @ 10MHz 3dB min @ 550MHz 10dB min @ 530 ~ 600MHz 30dB min @ 600 ~ 6000MHz | 35.0 X 12.0 X 8.0mm | ||
| 265 | 265MHz | MBP-C265-470ML-A | Band Pass Filter | SMD | 50Ohm | 470MHz | 1.0dB | 14dB | 20dB min @ 20MHz 45dB min @ 750MHz | 70.0 X 35.0 X 12.0mm | ||
| 270 | 270MHz | MBP-C270_500MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 500MHz | 1.5dB | 14dB | 40dB min @ DC ~ 15MHz 40dB min @ 650 ~ 1500MHz | 50.0 X 18.0 X 13.0mm | ||
| 280 | 280MHz | MBP-C280_40ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 40MHz | 3.5dB | 12dB | 60dBc min @ 210MHz 21dBc min @ 250MHz 21dBc min @ 310MHz 60dBc min @ 350MHz | 20.0 X 10.0 X 6.0mm | ||
| 282 | 282MHz | MBP-C282_506ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 506MHz | 2.0dB | 14dB | 28dB min @ 26MHz 28dB min @ 600MHz | 38.1 X 12.7 X 12.7mm | ||
| 296 | 296MHz | MBP-C296_110ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 110MHz | 0.76dB | 9dB | 60dBc min @ 920MHz 60dBc min @ 1080MHz | 31.8 X 12.7 X 6.1mm | ||
| 296 | 296MHz | MBP-C296_110ML-B-R1 | Band Pass Filter | BEAD | 50Ohm | 110MHz | 1.0dB | 12dB | 70dBc min @ 10 ~ 100MHz 25dBc min @ 100 ~ 200MHz 25dBc min @ 430 ~ 500MHz 40dBc min @ 500 ~ 600MHz 60dBc min @ 600 ~ 2000MHz | 31.7 X 12.7 X 10.16mm | ||
| 300 | 300MHz | MBP-C300_25ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 25MHz | 2.2dB | 9dB | 60dBc min @ 920MHz 60dBc min @ 1080MHz | 31.8 X 12.7 X 6.1mm | ||
| 300 | 300MHz | MBP-C300_25ML-B-R1 | Band Pass Filter | BEAD | 50Ohm | 25MHz | 2.5dB | 9dB | 65dBc min @ 10 ~ 100MHz 50dBc min @ 100 ~ 200MHz 20dBc min @ 200 ~ 270MHz 20dBc min @ 330 ~ 400MHz 60dBc min @ 400 ~ 1000MHz | 32.0 X 12.7 X 6.1mm | ||
| 300 | 300MHz | MBP-C300_100ML-A | Band Pass Filter | BEAD | 50Ohm | 100MHz | 1.5dB | 10dB | 50dBc min @ DC ~ 210MHz 50dBc min @ 390 ~ 450MHz 40dBc min @ 450 ~ 1050MHz | 48.0 X 12.5 X 10.0mm | ||
| 150 | 150MHz | MBP-C150_50ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 50MHz | 3.0dB | 14dB | 50dBc min @ DC ~ 50MHz 38dBc min @ 50 ~ 75MHz 25dBc min @ 75 ~ 115MHz 25dBc min @ 185 ~ 225MHz 38dBc min @ 225 ~ 300MHz 50dBc min @ 300 ~ 600MHz | 110.0 X 35.0 X 13.0mm | ||
| 150 | 150MHz | MBP-C150_60ML-A | Band Pass Filter | BEAD | 50Ohm | 60MHz | 3.0dB | 15dB | 40dBc min @ 10 ~ 40MHz 40dBc min @ 60 ~ 105MHz 40dBc min @ 210 ~ 6000MHz | 40.0 X 12.5 X 10.0mm | ||
| 155 | 155MHz | MBP-C155_40ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 40MHz | 3.0dB | 15dB | 45dB min @ DC ~ 115MHz 45dB min @ 200 ~ 550MHz | 20.0 X 10.0 X 6.0mm | ||
| 156 | 156.8MHz | MBP-C156.8_7ML-A | Band Pass Filter | Connectorized | 50Ohm | 7MHz | 2.0dB | 12dB | 30dB min @ 171.8MHz 30dB min @ 141.8MHz | 32.0 X 12.5 X 10.0mm | ||
| 160 | 160MHz | MBP-C160_10MN-A | Band Pass Filter | Connectorized | 50Ohm | 10MHz | 1.5dB | 15dB | 60dB min @ DC ~ 110MHz 50dB min @ 240 ~ 6000MHz | 140.0 X 50.0 X 25.0mm | ||
| 178 | 178.5MHz | MBP-C178.5_70ML-A | Band Pass Filter | SMD | 50Ohm | 70MHz | 2.0dB | 15dB | 60dB min @ DC ~ 90MHz 60dB min @ 300 ~ 1000MHz | 30.0 X 12.5 X 10.0mm | ||
| 185 | 185MHz | MBP-C185-90ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 90MHz | 1.5dB | 20dB | 20dBc min @ DC ~ 100MHz 40dBc min @ 300 ~ 1000MHz | 50.0 X 35.0 X 14.0mm | ||
| 187 | 187.5MHz | MBP-C187.5_30MLC-A | Band Pass Filter | SMD | 50Ohm | 30MHz | 3.0dB | 15dB | 40dB min @ 156MHz 11dB min @ 170MHz 6dB min @ 207.5MHz | 90.0 X 40.0 X 18.0mm | ||
| 187 | 187.5MHz | MBP-C187.5_30MLC-R | Band Pass Filter | SMD | 50Ohm | 30MHz | 4.6dB | 15dB | 40dB min @ 156MHz 5dB min @ 170MHz 6dB min @ 207.5MHz | 20.0 X 10.0 X 6.0mm | ||
| 190 | 190MHz | MBP-C190-120ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 120MHz | 1.2dB | 15dB | 50dB min @ 60MHz 50dB min @ 320MHz | 25.0 X 12.0 X 8.0mm | ||
| 197 | 197MHz | MBP-C197_46MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 46MHz | 0.9dB | 11dB | 40dB min @ DC ~ 88MHz 15dB min @ 88 ~ 156MHz 15dB min @ 244 ~ 1000MHz | 90.0 X 20.0 X 32.0mm | ||
| 198 | 198MHz | MBP-C198_46MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 46MHz | 0.9dB | 11dB | 40dB min @ DC ~ 88MHz 15dB min @ 88 ~ 156MHz 15dB min @ 244 ~ 1000MHz | 90.0 X 20.0 X 32.0mm | ||
| 198 | 198MHz | MBP-C198_48MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 48MHz | 0.9dB | 11dB | 40dB min @ DC ~ 88MHz 15dB min @ 88 ~ 156MHz 15dB min @ 244 ~ 1000MHz | 90.0 X 20.0 X 32.0mm | ||
| 200 | 200MHz | MBP-C200_20ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 20MHz | 2.2dB | 9dB | 60dBc min @ 920MHz 60dBc min @ 1080MHz | 31.8 X 12.7 X 6.1mm | ||
| 200 | 200MHz | MBP-C200_20ML-B-R1 | Band Pass Filter | BEAD | 50Ohm | 20MHz | 2.5dB | 10dB | 60dBc min @ 10 ~ 100MHz 20dBc min @ 100 ~ 180MHz 20dBc min @ 225 ~ 300MHz 60dBc min @ 300 ~ 1080MHz | 32.0 X 12.7 X 6.1mm | ||
| 200 | 200MHz | MBP-C200_100ML-A | Band Pass Filter | BEAD | 50Ohm | 100MHz | 1.5dB | 10dB | 50dBc min @ DC ~ 110MHz 50dBc min @ 290 ~ 350MHz 40dBc min @ 350 ~ 750MHz | 40.0 X 12.5 X 10.0mm | ||
| 200 | 200MHz | MBP-C200_200ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 200MHz | 1.5dB | 15dB | 40dB min @ 50MHz 40dB min @ 300MHz | 30.0 X 17.0 X 8.0mm | ||
| 210 | 210MHz | MBP-C210_20MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 210MHz | 2.5dB | 15dB | 60dB min @ DC ~ 110MHz 40dB min @ 120 ~ 160MHz 40dB min @ 260 ~ 2000MHz | 25.0 X 18.0 X 8.0mm | ||
| 210 | 210MHz | MBP-C210_120ML-A | Band Pass Filter | SMD | 50Ohm | 120MHz | 1.9dB | 15dB | 55dB min @ 120MHz 55dB min @ 300MHz 70dB min @ 1000 ~ 2000MHz | 80.0 X 20.0 X 6.0mm | ||
| 210 | 210MHz | MBP-C210_380MS-A | Band Pass Filter | Connectorized | 50Ohm | 380MHz | 0.85dB | 15dB | 60dB min @ DC ~ 12MHz 20dB min @ 12 ~ 15MHz 60dB min @ 500 ~ 3000MHz | 96.0 X 50.0 X 22.0 | ||
| 70 | 70MHz | MBP-C70_12ML-B-R0 | Band Pass Filter | SMD | 50Ohm | 12MHz | 4.0dB | 15dB | 45dB min @ DC ~ 46MHz 65dB min @ 24 ~ 36MHz 65dB min @ 124 ~ 230MHz 45dB min @ 94 ~ 400MHz | 20.0 X 10.0 X 6.0mm | ||
| 70 | 70MHz | MBP-C70_30ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 30MHz | 2.0dB | 15dB | 25dB min @ 24 ~ 36MHz 25dB min @ 124 ~ 230MHz 45dB min @ 350 ~ 800MHz | 20.0 X 10.0 X 6.0mm | ||
| 70 | 70MHz | MBP-C70_40MC-A | Band Pass Filter | SMD | 50Ohm | 40MHz | 3.0dB | 14dB | 30dB min @ 30MHz 25dB min @ 120MHz | 38.1 X 12.7 X 12.7mm | ||
| 70 | 70MHz | MBP-C70_40ML-A | Band Pass Filter | SMD | 50Ohm | 40MHz | 2.5dB | 15dB | 40dB min @ 35MHz 40dB min @ 105MHz 80dB min @ 135MHz 70dB min @ 1000 ~ 2000MHz | 75.0 X15.0 X 6.0mm | ||
| 75 | 75MHz | MBP-C75-2ML-A | Band Pass Filter | SMD | 50Ohm | 2MHz | 6.0dB | 15dB | 50dB min @ 65MHz 50dB min @ 85MHz | 65.0 X 25.0 X 12.0mm | ||
| 75 | 75MHz | MBP-C75_3MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 3MHz | 7.0dB | 15dB | 40dB min @ 69MHz 40dB min @ 81MHz | 35.0 X 12.5 X 10.0mm | ||
| 76 | 76.8MHz | MBP-C76.8_40M(DP-RM-RFF-08524) | Band Pass Filter | SMD | 50Ohm | 40MHz | 2.0dB | 12dB | 30dB min @ 46.8MHz 30dB min @ 106.8MHz | 55.0 X 17.0 X 12.7mm | ||
| 100 | 100MHz | MBP-C100_10MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 10MHz | 1.5dB | 15dB | 30dBc min @ DC ~ 50MHz 30dBc min @ 200 ~ 500MHz | 30.0 X 12.0 X 8.0mm | ||
| 100 | 100MHz | MBP-C100-60ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 60MHz | 1.5dB | 15dB | 50dB min @ 35MHz 50dB min @ 170MHz | 25.0 X 12.0 X 8.0mm | ||
| 110 | 110MHz | MBP-C110-6ML-A | Band Pass Filter | SMD | 50Ohm | 6MHz | 5.2dB | 15dB | 60dB min @ 88 ~ 100MHz 60dB min @ 120 ~ 150MHz | 125.0 X 27.0 X 12.0mm | ||
| 113 | 113MHz | MBP-C113-12ML-A | Band Pass Filter | SMD | 50Ohm | 12MHz | 5.2dB | 15dB | 60dB min @ 88 ~ 100MHz 60dB min @ 126 ~ 150MHz | 125.0 X 27.0 X 12.0mm | ||
| 120 | 120MHz | MBP-C120_10ML-A | Band Pass Filter | SMD | 50Ohm | 10MHz | 3.0dB | 14dB | 35dB min @ 100MHz 35dB min @ 140MHz | 25.4 X 12.7 X 6.7mm | ||
| 120 | 120MHz | MBP-C120_40ML-A | Band Pass Filter | SMD | 50Ohm | 40MHz | 2.5dB | 14dB | 35dB min @ 80MHz 35dB min @ 160MHz | 25.4 X 12.7 X 6.7mm | ||
| 120 | 120MHz | MBP-C120_60ML-A | Band Pass Filter | SMD | 50Ohm | 60MHz | 2.5dB | 15dB | 70dB min @ 40MHz 40dB min @ 40MHz 40dB min @ 170MHz 70dB min @ 200MHz 70dB min @ 1000 ~ 2000MHz | 125.0 X 27.0 X 12.0mm | ||
| 125 | 125MHz | MBP-C125_50ML-A | Band Pass Filter | BEAD | 50Ohm | 50MHz | 1.5dB | 10dB | 50dBc min @ DC ~ 60MHz 50dBc min @ 190 ~ 300MHz 40dBc min @ 300 ~ 450MHz | 40.0 X 12.5 X 10.0mm | ||
| 125 | 125MHz | MBP-C125_210ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 210MHz | 1.8dB | 15dB | 30dB min @ DC ~ 10MHz 3dB min @ 10MHz 3dB min @ 250MHz 10dB min @ 300MHz 30dB min @ 400 ~ 600MHz | 35.0 X 12.0 X 8.0mm | ||
| 127 | 127MHz | MBP-C127.5-29ML-A | Band Pass Filter | SMD | 50Ohm | 29MHz | 5.0dB | 15dB | 50dB min @ 107MHz 50dB min @ 148MHz | 80.0 X 40.0 X 12.0mm | ||
| 137 | 137MHz | MBP-C137_74MN-A | Band Pass Filter | Connectorized | 50Ohm | 74MHz | 1.2dB | 15dB | 30dB min @ 80MHz 30dB min @ 200 ~ 1200MHz | 145.0 X 52.0 X 29.0mm | ||
| 140 | 140MHz | MBP-C140_40ML-A | Band Pass Filter | SMD | 50Ohm | 40MHz | 3.0dB | 14dB | 40dB min @ DC ~ 95MHz 50dB min @ 105MHz 50dB min @ 175 ~ 500MHz | 100.0 X 35.0 X 10.0mm | ||
| 141 | 141MHz | MBP-C141_66ML-A | Band Pass Filter | SMD | 50Ohm | 66MHz | 2.5dB | 13dB | 30dBc min @ DC ~ 88MHz 30dBc min @ 190MHz 60dBc min @ 300 ~ 1250MHz | 30.0 X 10.0 X 6.0mm | ||
| 10 | 10MHz | MBP-C10_1.2ML-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 1.2MHz | 2.0dB | 15dB | 30dBc min @ 5MHz 30dBc min @ 15MHz | 40.0 X 20.0 X 20.0mm | ||
| 10 | 10MHz | MBP-C10_4MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 4MHz | 2.5dB | 15dB | 30dB min @ 20 ~ 40MHz | 30.0 X 10.0 X 6.0mm | ||
| 12 | 12.5MHz | MBP-C12.5_7M(DP-RM-RFF-08399) | Band Pass Filter | SMD | 50Ohm | 7MHz | 3.0dB | 15dB | 25dB min @ 7.3MHz 25dB min @ 17.7MHz 25dB min @ 27MHz | 38.1 X 12.7 X 12.7mm | ||
| 15 | 15.5MHz | MBP-C15.5_29ML-A-R3 | Band Pass Filter | SMD | 50Ohm | 29MHz | 4.0dB | 15dB | 45dB min @ 0.5MHz 45dB min @ 32MHz | 55.0 X 17.0 X 12.7mm | ||
| 15 | 15.75MHz | MBP-C15.75_28.5M(DP-RM-RFF-08505) | Band Pass Filter | SMD | 50Ohm | 28.5MHz | 1.0dB | 10dB | 25dB min @ 1.35MHz 25dB min @ 33MHz | 55.0 X 17.0 X 12.7mm | ||
| 16 | 16MHz | MBP-C16_28MN-A | Band Pass Filter | Connectorized | 50Ohm | 28MHz | 1.0dB | 15dB | 30dB min @ DC ~ 1.5MHz 25dB min @ 40 ~ 200MHz | 190.0 X 85.0 X 40.0mm | ||
| 20 | 20MHz | MBP-C20_4MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 4MHz | 1.0dB | 15dB | 42dB min @ 10MHz 30dB min @ 30 ~ 40MHz | 30.0 X 10.0 X 6.0mm | ||
| 23 | 23MHz | MBP-C23_14M(DP-RM-RFF-08401) | Band Pass Filter | SMD | 50Ohm | 14MHz | 3.0dB | 15dB | 25dB min @ 13MHz 25dB min @ 33MHz 25dB min @ 60MHz | 38.1 X 12.7 X 12.7mm | ||
| 30 | 30MHz | MBP-C30_4MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 4MHz | 2.5dB | 15dB | 48dB min @ 10MHz 41dB min @ 20MHz 30dB min @ 30MHz | 30.0 X 10.0 X 6.0mm | ||
| 40 | 40MHz | MBP-C40_4MS-A-R0 | Band Pass Filter | Connectorized | 50Ohm | 4MHz | 2.5dB | 15dB | 55dB min @ 10MHz 48dB min @ 20MHz 42dB min @ 30MHz | 30.0 X 10.0 X 6.0mm | ||
| 40 | 40MHz | MBP-C40_20ML-A | Band Pass Filter | SMD | 50Ohm | 20MHz | 1.6dB | 15dB | 65dB min @ 15MHz 40dB min @ 65MHz 60dB min @ 95MHz 50dB min @ 1000 ~ 2000MHz | 75.0 X15.0 X 6.0mm | ||
| 59 | 59MHz | MBP-C59_58ML-A | Band Pass Filter | SMD | 50Ohm | 58MHz | 2.0dB | 13dB | 30dBc min @ DC ~ 25MHz 30dBc min @ 108MHz 60dBc min @ 225 ~ 1250MHz | 30.0 X 10.0 X 6.0mm | ||
| 60 | 60MHz | MBP-C60_10ML-A-R0 | Band Pass Filter | BEAD | 50Ohm | 10MHz | 3.25dB | 15dB | 60dB min @ DC ~ 35MHz 40dB min @ 35 ~ 48MHz 40dB min @ 72 ~ 85MHz 60dB min @ 85 ~ 500MHz 50dB min @ 500 ~ 1000MHz | 38.1 X 12.7 X 12.7mm | ||
| 60 | 60MHz | MBP-C60_54ML-A-V1 | Band Pass Filter | Connectorized | 50Ohm | 54MHz | 1.2dB | 15dB | 55dB min @ 1 ~ 22MHz 40dB min @ 115 ~ 400MHz 40dB min @ 401 ~ 520MHz | 130.0 X 60.0 X 25.0mm | ||
| 65 | 65MHz | MBP-C65_30ML-A | Band Pass Filter | BEAD | 50Ohm | 30MHz | 3.0dB | 15dB | 38dBc min @ 10 ~ 40MHz 30dBc min @ 40 ~ 44MHz 50dBc min @ 110 ~ 230MHz 40dBc min @ 250 ~ 6000MHz | 40.0 X 12.5 X 10.0mm | ||
| 70 | 70MHz | MBP-C70_2ML-A-R1 | Band Pass Filter | Connectorized | 50Ohm | 2MHz | 6.0dB | 15dB | 40dB min @ 19MHz 20dB min @ 50MHz 10dB min @ 60MHz 5dB min @ 65MHz 5dB min @ 75MHz 10dB min @ 80MHz 20dB min @ 95MHz 40dB min @ 195MHz | 32.0 X 12.5 X 10.0mm | ||
| 70 | 70MHz | MBP-C70_6ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 6MHz | 4.0dB | 15dB | 45dB min @ DC ~ 58MHz 65dB min @ 24 ~ 36MHz 65dB min @ 124 ~ 230MHz 45dB min @ 82 ~ 400MHz | 20.0 X 10.0 X 6.0mm | ||
| 70 | 70MHz | MBP-C70_7ML-A | Band Pass Filter | SMD | 50Ohm | 7MHz | 3.5dB | 15dB | 30dB min @ 60MHz 30dB min @ 80MHz | 38.1 X 12.7 X 12.7mm | ||
| 70 | 70MHz | MBP-C70_10ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 10MHz | 3.5dB | 15dB | 50dB min @ 45MHz 50dB min @ 107MHz | 25.4 X 12.7 X 6.7mm | ||
| 70 | 70MHz | MBP-C70_12ML-A-R0 | Band Pass Filter | SMD | 50Ohm | 12MHz | 2.5dB | 15dB | 40dB min @ 50MHz 40dB min @ 90MHz | 15.0 X 10.0 X 6.0mm | ||
| 6125 | 6125MHz | MHP-C6125_3.75GL-A | High Pass Filter | SMD | 50Ohm | 3750MHz | 2.0dB | 12dB | 20dB min @ 3000MHz | 22.0 X 11.0 X 9.0mm | ||
| 8275 | 8275MHz | MHP-C8275_13540MN-A | High Pass Filter | Connectorized | 50Ohm | 13450MHz | 5.0dB | 8dB | 45dB min @ DC ~ 1450MHz | 87.0 X 44.0 X 20.0mm | ||
| 10575 | 10575MHz | MHP-C10575_14850MN-A | High Pass Filter | Connectorized | 50Ohm | 14850MHz | 5.0dB | 8dB | 45dB min @ DC ~ 2850MHz | 92.0 X 40.0 X 20.0mm | ||
| 12100 | 12100MHz | MHP-C12100_11800MN-A | High Pass Filter | Connectorized | 50Ohm | 11800MHz | 5.0dB | 8dB | 45dB min @ DC ~ 5800MHz | 75.0 X 39.0 X 20.0mm | ||
| 280 | 280MHz | MBP-20-540_520ML | Low Pass Filter | SMD | 50Ohm | 520MHz | 3.0dB | 15dB | 20dB min @ DC ~ 10MHz 50dB min @ 1000MHz | 47.0 X 15.0 X 7.0mm | ||
| 72 | 72MHz | MBP-56-88M_32MN | Band Pass Filter | Connectorized | 50Ohm | 32MHz | 1.0dB | 14dB | 40dB min @ 25 ~ 45MHz 20dB min @ 45 ~ 50MHz 40dB min @ 98 ~ 108MHz 40dB min @ 108 ~ 300MHz 40dB min @ 300 ~ 500MHz | 200.0 X 50.0 X 30.0mm | ||
| 180 | 180MHz | MBP-180BP80M | Band Pass Filter | Connectorized | 50Ohm | 80MHz | 1.5dB | 15dB | 20dB min @ DC ~ 10MHz 50dB min @ 1000MHz | 100.0 X 25.0 X 25.0mm | ||
| 316 | 316MHz | MBP-316-350.5M_34.5ML-A | Band Pass Filter | Connectorized | 50Ohm | 34.5MHz | 1.0dB | 15dB | 10dB min @ 301MHz 10dB min @ 365.5MHz | 115.0 X 65.0 X 33.0mm | ||
| 415 | 415MHz | MBP-350-480M_130MS-A | Band Pass Filter | Connectorized | 50Ohm | 130MHz | 3.6dB | 15dB | 30dBc min @ DC ~ 330MHz 20dBc min @ 500 ~ 1200MHz | 38.0 X 110.0 X 18.0mm | ||
| 415 | 415MHz | MBP-415-455M_40M-A | Band Pass Filter | SMD | 50Ohm | 40MHz | 2.0dB | 15dB | 20dB min @ 390MHz 25dB min @ 490MHz 40dB min @ 550MHz | 30.0 X 16.0 X 6.0mm | ||
| 485 | 485MHz | MBP-450-520-70M-A | Band Pass Filter | SMD | 50Ohm | 70MHz | 1.0dB | 15dB | 10dBc min @ 400MHz 10dBc min @ 570MHz 40dBc min @ 350MHz 30dBc min @ 620MHz 70dBc min @ 1000 ~ 2500MHz | 75.0 X 25.0 X 17.0mm | ||
| 485 | 485MHz | MBP-450-520-70M-B | Band Pass Filter | SMD | 50Ohm | 70MHz | 1.0dB | 15dB | 10dBc min @ 400MHz 10dBc min @ 570MHz 40dBc min @ 350MHz 30dBc min @ 620MHz 70dBc min @ 1000 ~ 2500MHz 50dBc min @ 2500 ~ 6000MHz | 121.0 X 51.0 X 17.0mm | ||
| 485 | 485MHz | MBP-450-520-70M-C | Band Pass Filter | SMD | 50Ohm | 70MHz | 1.0dB | 15dB | 10dBc min @ 400MHz 10dBc min @ 570MHz 40dBc min @ 350MHz 30dBc min @ 620MHz 70dBc min @ 1000 ~ 2500MHz 50dBc min @ 2500 ~ 6000MHz | 121.0 X 41.0 X 17.0mm | ||
| 485 | 485MHz | MBP-450-520-70M-D | Band Pass Filter | SMD | 50Ohm | 70MHz | 1.0dB | 15dB | 10dBc min @ 400MHz 10dBc min @ 570MHz 40dBc min @ 350MHz 30dBc min @ 620MHz 70dBc min @ 1000 ~ 2500MHz 50dBc min @ 2500 ~ 6000MHz | 121.0 X 39.0 X 17.0mm | ||
| 550 | 550MHz | MBP-550BP300M | Band Pass Filter | SMD | 50Ohm | 300MHz | 1.5dB | 15dB | 30dBc min @ 300MHz 20dBc min @ 350MHz 15dBc min @ 750MHz 20dBc min @ 800MHz 30dBc min @ 1575MHz | 75.0 X 50.0 X 15.0mm | ||
| 1 | 1.75MHz | MBP-C1.75_1.5ML-A-R2 | Band Pass Filter | SMD | 50Ohm | 1.5MHz | 2.5dB | 15dB | 45dB min @ 0.5MHz 45dB min @ 3MHz | 37.0 X 11.8 X 11.0mm | ||
| 2 | 2.5MHz | MBP-C2.5_1M(DP-RM-RFF-08395) | Band Pass Filter | SMD | 50Ohm | 1MHz | 3.0dB | 10dB | 19dB min @ 1.7MHz 19dB min @ 3.3MHz 30dB min @ 6MHz | 38.1 X 12.7 X 12.7mm | ||
| 3 | 3.75MHz | MBP-C3.75_2.5ML-A-R2 | Band Pass Filter | SMD | 50Ohm | 2.5MHz | 2.5dB | 15dB | 45dB min @ 2MHz 45dB min @ 2MHz | 37.0 X 11.8 X 11.0mm | ||
| 4 | 4.0MHz | MBP-C4_2M(DP-RM-RFF-08396) | Band Pass Filter | SMD | 50Ohm | 2MHz | 3.0dB | 10dB | 17dB min @ 3MHz 17dB min @ 5MHz 30dB min @ 10MHz | 38.1 X 12.7 X 12.7mm | ||
| 7 | 7.0MHz | MBP-C7_4M(DP-RM-RFF-08397) | Band Pass Filter | SMD | 50Ohm | 4MHz | 3.0dB | 25dB | 25dB min @ 4MHz 25dB min @ 7MHz 25dB min @ 18MHz | 38.1 X 12.7 X 12.7mm | ||
| 35 | 35MHz | MHP-C35ML-A-R1 | High Pass Filter | SMD | 50Ohm | 165MHz | 1.5dB | 15dB | 30dBc min @ DC ~ 30MHz | 18.0 X 10.0 X 6.0mm | ||
| 40 | 40MHz | MHP-C40ML-A-R1 | High Pass Filter | SMD | 50Ohm | 150MHz | 1.5dB | 15dB | 30dBc min @ DC ~ 35MHz | 18.0 X 10.0 X 6.0mm | ||
| 60 | 60MHz | MHP-C60ML-A-R1 | High Pass Filter | SMD | 50Ohm | 150MHz | 1.5dB | 15dB | 30dBc min @ DC ~ 50MHz | 18.0 X 10.0 X 6.0mm | ||
| 187 | 187.5MHz | MHP-C187.5_30MLC-A | High Pass Filter | SMD | 50Ohm | 30MHz | 1.8dB | 15dB | 40dB min @ 156MHz | 20.0 X 10.0 X 6mm | ||
| 278 | 278.25MHz | MHP-C278.25_503.5MN-A | High Pass Filter | Connectorized | 50Ohm | 502.5MHz | 2.2dB | 15dB | 50dB min @ DC ~ 22.5MHz | 100.0 X 50.0 X 28.0mm | ||
| 360 | 360MHz | MHP-C360_480MN-A-R0 | High Pass Filter | Connectorized | 50Ohm | 480MHz | 2.5dB | 15dB | 20dB min @ DC ~ 110MHz | 100.0 X 45.0 X 28.0mm | ||
| 395 | 395MHz | MHP-C395_2805MS-A | High Pass Filter | Connectorized | 50Ohm | 2605MHz | 1.0dB | 15dB | 40dB min @ DC ~ 210MHz 20dB min @ 210 ~ 290MHz | 35.0 X 15.0 X 15.0mm | ||
| 500 | 500MHz | MHP-500-3000M_2.5GS-A | High Pass Filter | Connectorized | 50Ohm | 2500MHz | 1.8dB | 15dB | 60dB min @ 400MHz | 50.0 X 37.0 X 18.0mm | ||
| 500 | 500MHz | MHP-500-3000M_2.5GS-B | High Pass Filter | Connectorized | 50Ohm | 2500MHz | 1.8dB | 15dB | 60dB min @ 400MHz | 50.0 X 37.0 X 18.0mm | ||
| 500 | 500MHz | MHP-500-3000M_2.5GT-A | High Pass Filter | Connectorized | 50Ohm | 2500MHz | 2.0dB | 15dB | 60dB min @ 400MHz | 58.0 X 45.0 X 29.0mm | ||
| 750 | 750MHz | MHP-C750_50MR-A | High Pass Filter | BEAD | 50Ohm | 1500MHz | 2.0dB | 15dB | 50dB min @ DC ~ 400MHz | 30.0 X 10.0 X 8.0mm | ||
| 810 | 810MHz | MHP-C810_1380MN-A | High Pass Filter | Connectorized | 50Ohm | 1380MHz | 5.0dB | 15dB | 45dB min @ DC ~ 100MHz | 68.0 X 30.0 X 21.0mm | ||
| 1005 | 1005MHz | MHP-C1005_1590MN-A | High Pass Filter | Connectorized | 50Ohm | 1590MHz | 5.0dB | 15dB | 45dB min @ DC ~ 190MHz | 68.0 X 30.0 X 21.0mm | ||
| 1250 | 1250MHz | MHP-C1250-1500ML-A | High Pass Filter | SMD | 50Ohm | 1500MHz | 2.0dB | 14dB | 50dB min @ 400MHz | 50.0 X 20.0 X 9.0mm | ||
| 1300 | 1300MHz | MHP-C1300_1000MN-A-R0 | High Pass Filter | Connectorized | 50Ohm | 1000MHz | 2.5dB | 16dB | 30dB min @ 730MHz | 85.0 X 40.0 X 21.5mm | ||
| 1460 | 1460MHz | MHP-C1460_2080MN-A | High Pass Filter | Connectorized | 50Ohm | 2080MHz | 5.0dB | 15dB | 45dB min @ DC ~ 380MHz | 68.0 X 30.0 X 21.0mm | ||
| 4450 | 4450MHz | MHP-C4450_900ML-A-R0 | High Pass Filter | SMD | 50Ohm | 900MHz | 1.0dB | 15dB | 30dBc min @ 3400MHz | 15.0 X 20.0 X 6.0mm | ||
| 4900 | 4900MHz | MHP-C4900_2.2GS-A | High Pass Filter | Connectorized | 50Ohm | 2200MHz | 1.5dB | 12dB | 30dB min @ DC ~ 3400MHz | 48.0 X 12.0 X 8.0mm | ||
| 5250 | 5250MHz | MHP-C5250_5.5GL-A-R2 | High Pass Filter | SMD | 50Ohm | 5500MHz | 2.0dB | 12dB | 20dB min @ 2000MHz | 22.0 X 11.0 X 9.0mm | ||
| 5410 | 5410MHz | MHP-C5410_9180MN-A | High Pass Filter | Connectorized | 50Ohm | 9180MHz | 5.0dB | 8dB | 45dB min @ DC ~ 700MHz | 105.0 X 54.0 X 20.0mm | ||
| 2900 | 2900MHz | MLP-C2900_400ML-A-R0 | Low Pass Filter | BEAD | 50Ohm | 400MHz | 1.2dB | 15dB | 48dBc min @ 4000 ~ 18000MHz | 44.45 X 12.7 X 10.16mm | ||
| 3060 | 3060MHz | MLP-C3060_2ML-A-R0 | Low Pass Filter | BEAD | 50Ohm | 2MHz | 0.6dB | 15dB | 48dB min @ 4200 ~ 9000MHz 48dB min @ 9000 ~ 18000MHz | 44.45 X 12.7 X 10.16mm | ||
| 3250 | 3250MHz | MLP-C3250_6.5GL-A-R1 | Low Pass Filter | SMD | 50Ohm | 6500MHz | 2.0dB | 12dB | 50dB min @ 8000MHz | 22.0 X 11.0 X 9.0mm | ||
| 3250 | 3250MHz | MLP-C3250_6.5GL-B-R1 | Low Pass Filter | SMD | 50Ohm | 6500MHz | 2.0dB | 12dB | 50dB min @ 8000MHz | 20.0 X 10.0 X 6.0mm | ||
| 3500 | 3500MHz | MLP-C3500_3.5GS-A-R0 | Low Pass Filter | Connectorized | 50Ohm | 3100MHz | 1.5dB | 15dB | 40dBc min @ 4500 ~ 7000MHz | 30.0 X 12.0 X 8.0mm | ||
| 180 | 180MHz | MLL-180BP80M | Low Pass Filter | Connectorized | 50Ohm | 80MHz | 1.5dB | 15dB | 70dB min @ 200 ~ 400MHz | 75.0 X 25.0 X 25.0mm | ||
| 400 | 400MHz | MLL-400LPMH | Low Pass Filter | SMD | 50Ohm | 175MHz | 0.9dB | 15dB | 20dB min @ 450MHz 25dB min @ 460MHz 70dB min @ 690MHz 75dB min @ 1500MHz 75dB min @ 1575MHz | 75.0 X 25.0 X 15.0mm | ||
| 400 | 400MHz | MLL400-MD-HA_131112 | Low Pass Filter | Connectorized | 50Ohm | 400MHz | 2.0dB | 15dB | 35dB min @ 480MHz | 65.0 X 38.0 X 25.0mm | ||
| 500 | 500MHz | MLL-500BP480M | Low Pass Filter | SMD | 50Ohm | 480MHz | 1.0dB | 15dB | 40dB min @ 650 ~ 1500MHz | 25.4 X 12.7 X 6.7mm | ||
| 512 | 512MHz | MLL-512BP492M-A | Low Pass Filter | SMD | 50Ohm | 492MHz | 2.0dB | 15dB | 40dB min @ 650 ~ 1500MHz 60dBc min @ 14200 ~ 26500MHz | 25.4 X 12.7 X 6.7mm | ||
| 800 | 800MHz | MLL-800LPFH | Low Pass Filter | SMD | 50Ohm | 800MHz | 1.0dB | 15dB | 65dB min @ 1575.42MHz | 75.0 X 25.0 X 15.0mm | ||
| 1000 | 1000MHz | MLL-1000BP660M | Low Pass Filter | SMD | 50Ohm | 660MHz | 1.5dB | 15dB | 40dB min @ 1300 ~ 2000MHz | 25.4 X 12.7 X 6.7mm | ||
| 1250 | 1250MHz | MLL-1250M2.0C | Low Pass Filter | SMD | 50Ohm | 1250MHz | 2.0dB | 15dB | 30dB min @ 1900MHz | 25.4 X 12.7 X 6.7mm | ||
| 1300 | 1300MHz | MLL-1300LP | Low Pass Filter | SMD | 50Ohm | 1300MHz | 0.5dB | 15dB | 60dB min @ 2400MHz 60dB min @ 6000MHz 50dB min @ ~18000MHz | 20.0 X 12.0 X 7.0mm | ||
| 1380 | 1380MHz | MLL-1380MD-A | Low Pass Filter | SMD | 50Ohm | 1380MHz | 4.5dB | 15dB | 50dB min @ 1500MHz | 47.0 X 15.0 X 7.0mm | ||
| 960 | 960MHz | MLL-C960M2.2C | Low Pass Filter | SMD | 50Ohm | 960MHz | 2.2dB | 15dB | 35dB min @ 1030 ~ 1090MHz | 40.0 X 15.0 X 8.0mm | ||
| 960 | 960MHz | MLL-C960M3.0C | Low Pass Filter | SMD | 50Ohm | 960MHz | 3.0dB | 15dB | 35dB min @ 1030 ~ 1090MHz | 50.0 X 15.0 X 10.0mm | ||
| 10600 | 10600MHz | MLL-C10600BP200M_R01 | Low Pass Filter | BEAD | 50Ohm | 200MHz | 1.5dB | 15dB | 70dB min @ 10900 ~ 11100MHz | 40.0 X 25.0 X 7.0mm | ||
| 11000 | 11000MHz | MLL-C11000BP200M | Low Pass Filter | BEAD | 50Ohm | 200MHz | 1.5dB | 15dB | 40dBc min @ 10500 ~ 10700MHz | 30.0 X 20.0 X 7.0mm | ||
| 20 | 20MHz | MHP-C20_480ML-A-R0 | High Pass Filter | BEAD | 50Ohm | 480MHz | 1.0dB | 15dB | 3dB min @ 10MHz 30dB min @ DC ~ 10MHz | 25.0 X 12.0 X 8.0mm | ||
| 87 | 87.5MHz | MLP-C87.5_41ML-A | Low Pass Filter | BEAD | 50Ohm | 41MHz | 0.6dB | 15dB | 40dBc min @ 134 ~ 1000MHz | 93.0 X 40.0 X 23.0mm | ||
| 125 | 125MHz | MLP-C125_250ML-A-R0 | Low Pass Filter | SMD | 50Ohm | 250MHz | 0.8dB | 14dB | 50dB min @ 400 ~ 3000MHz | 25.0 X 10.0 X 8.0mm | ||
| 129 | 129MHz | MLP-C129_42ML-A | Low Pass Filter | BEAD | 50Ohm | 42MHz | 0.6dB | 15dB | 40dBc min @ 216 ~ 1000MHz | 88.0 X 40.0 X 23.0mm | ||
| 135 | 135MHz | MLP-C135_270MN-A-R0 | Low Pass Filter | Connectorized | 50Ohm | 270MHz | 0.8dB | 15dB | 60dB min @ 400MHz | 79.5 X 30.0 X 29.0mm | ||
| 187 | 187.5MHz | MLP-C187.5_75ML-A | Low Pass Filter | BEAD | 50Ohm | 75MHz | 0.6dB | 15dB | 40dBc min @ 300 ~ 2000MHz | 84.0 X 40.0 X 23.0mm | ||
| 195 | 195MHz | MLP-C195_30MN-A-R0 | Low Pass Filter | Connectorized | 50Ohm | 30MHz | 0.3dB | 15dB | 50dB min.@ 2nd & 3rd Harmonic | 100.0 X 35.0 X 29.0mm | ||
| 250 | 250MHz | MLP-C250_400M N-A-R0 | Low Pass Filter | Connectorized | 50Ohm | 300MHz | 0.8dB | 15dB | 30dBc min @ 800MHz 40dBc min @ 1600 ~ 3200MHz | 150.0 X 65.0 X 30.0mm | ||
| 250 | 250MHz | MLP-C250_50MR-A | Low Pass Filter | BEAD | 50Ohm | 500MHz | 2.0dB | 15dB | 50dB min.@ 600 ~ 2000MHz | 30.0 X 10.0 X 8.0mm | ||
| 250 | 250MHz | MLP-C250-500ML-A | Low Pass Filter | SMD | 50Ohm | 500MHz | 1.7dB | 14dB | 45dB min @ 600MHz | 35.0 X 20.0 X 9.0mm | ||
| 275 | 275MHz | MLP-C275_490ML-A | Low Pass Filter | Connectorized | 50Ohm | 490MHz | 1.0dB | 15dB | 80dB min @ 600 ~ 3000MHz 60dB min @ 3000 ~ 6000MHz 45dB min @ 6000 ~ 10000MHz | 200.0 X 123.0 X 30.0mm | ||
| 282 | 282.5MHz | MLP-C282.5_115ML-A | Low Pass Filter | BEAD | 50Ohm | 115MHz | 0.6dB | 15dB | 40dBc min @ 450 ~ 2000MHz | 84.0 X 40.0 X 23.0mm | ||
| 426 | 426MHz | MLP-C426_172ML-A | Low Pass Filter | BEAD | 50Ohm | 172MHz | 0.6dB | 15dB | 40dBc min @ 680 ~ 2000MHz | 84.0 X 40.0 X 23.0mm | ||
| 460 | 460MHz | MLP-C460_920MS-A-R0 | Low Pass Filter | Connectorized | 50Ohm | 920MHz | 0.5dB | 18dB | 40dB min @ 1200MHz 60dB min @ 1500 ~ 6000MHz | 107.95 X 24.38 X 14.22mm | ||
| 535 | 535MHz | MLP-C535_500MN-A | Low Pass Filter | Connectorized | 50Ohm | 500MHz | 0.6dB | 17dB | 60dB min @ 800 ~ 900MHz 60dB min @ up to 6000MHz | 100.0 X 38.0 X 26.0mm | ||
| 540 | 540MHz | MLP-C540_1000MS-A-R1 | Low Pass Filter | Connectorized | 50Ohm | 920MHz | 0.5dB | 18dB | 40dB min @ 1200MHz 60dB min @ 1500 ~ 6000MHz | 107.95 X 24.38 X 14.22mm | ||
| 1000 | 1000MHz | MLP-C1000_2GML-A-R0 | Low Pass Filter | BEAD | 50Ohm | 2000MHz | 1.0dB | 15dB | 40dB min @ 3100MHz | 14.0 X 6.4 X 3.3mm | ||
| 1000 | 1000MHz | MLP-C1000_2000ML-A-R0 | Low Pass Filter | Connectorized | 50Ohm | 2000MHz | 1.0dB | 15dB | 25dB min @ 3000MHz | 30.0 X 18.0 X 9.0mm | ||
| 1500 | 1500MHz | MLP-C1500_40MR-A | Low Pass Filter | BEAD | 50Ohm | 3000MHz | 2.5dB | 15dB | 40dB min @ 3400 ~ 5000MHz | 30.0 X 8.0 X 8.0mm | ||
| 1500 | 1500MHz | MLP-C1500-3000ML-A | Low Pass Filter | BEAD | 50Ohm | 3000MHz | 1.5dB | 15dB | 40dB min @ 3400MHz | 66.0 X 30.0 X 12.5mm | ||
| 2375 | 2375MHz | MLP-C2375_4.75GL-A-R1 | Low Pass Filter | SMD | 50Ohm | 4750MHz | 2.0dB | 12dB | 50dB min @ 6000MHz | 22.0 X 11.0 X 9.0mm | ||
| 650 | 650MHz | MLB-650BP1300M_R01 | Band Pass Filter | SMD | 50Ohm | 1300MHz | 3.0dB | 15dB | 20dB min @ 1 ~ 20MHz 35dB min @ 1800 ~ 6000MHz | 24.9 X 13.6 X 6.5mm | ||
| 665 | 665MHz | MLB-665BP70B_R07 | Band Pass Filter | BEAD | 50Ohm | 70MHz | 1.8dB | 10dB | 60dB min @ DC ~ 400MHz 50dB min @ 400 ~ 500MHz 25dB min @ 500 ~ 570MHz 25dB min @ 760 ~ 830MHz 45dB min @ 830 ~ 930MHz 60dB min @ 930 ~ 5300MHz 60dB min @ 5300 ~ 8500MHz | 37.0 X 10.0 X 6.5mm | ||
| 672 | 672MHz | MLB-C672BP72B-A | Band Pass Filter | BEAD | 50Ohm | 72MHz | 1.5dB | 15dB | 70dB min @ DC ~ 400MHz 40dB min @ 544MHz 40dB min @ 800MHz 60dB min @ 944 ~ 3000MHz | 30.0 X 10.0 X 6.5mm | ||
| 672 | 672MHz | MLB-C672BP72S | Band Pass Filter | Connectorized | 50Ohm | 72MHz | 1.5dB | 15dB | 70dB min @ DC ~ 400MHz 40dB min @ 544MHz 40dB min @ 800MHz 60dB min @ 944 ~ 3000MHz | 48.0 X 12.7 X 10.16mm | ||
| 672 | 672MHz | MLB-672BP72M | Band Pass Filter | SMD | 50Ohm | 72MHz | 3.0dB | 12dB | 70dB min @ DC ~ 400MHz 40dB min @ 544MHz 60dB min @ 800MHz 40dB min @ 944 ~ 3000MHz | 25.4 X 12.7 X 6.7mm | ||
| 675 | 675MHz | MLB-675BP50M_R01 | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 3.0dB | 15dB | 15dB min @ 600MHz 30dB min @ 800MHz | 65.0 X 38.0 X 25.0mm | ||
| 700 | 700MHz | MLB-700BP400H | Band Pass Filter | Connectorized | 50Ohm | 400MHz | 2.0dB | 16dB | 35dB min @ 325MHz 35dB min @ 1310MHz | 65.0 X 38.0 X 25.0mm | ||
| 720 | 720MHz | MLB-720BP400HN | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 2.0dB | 18dB | 35dB min @ 325MHz 35dB min @ 1310MHz | 65.0 X 38.0 X 25.0mm | ||
| 880 | 880MHz | MLB-880BP540M | Band Pass Filter | SMD | 50Ohm | 50MHz | 2.0dB | 16dB | 20dBc min @ DC ~ 575MHz 10dBc min @ 1625MHz 10dBc min @ 2000MHz 50dBc min @ 3000MHz | 30.0 X 10.0 X 5.0mm | ||
| 1000 | 1000MHz | MLB-1000BP01M | Band Pass Filter | SMD | 50Ohm | 50MHz | 3.0dB | - | 60dBc min @ 2000MHz 50dBc min @ 3000MHz 50dBc min @ 4000MHz | 25.4 X 12.7 X 6.7mm | ||
| 710 | 710MHz | MLB-1420M3.5C | Low Pass Filter | SMD | 50Ohm | 50MHz | 5.0dB | 15dB | 20dB min @ 1500MHz | 24.9 X 13.6 X 6.5mm | ||
| 14 | 14.25MHz | MLP-1.5-30M_28.5MN | Low Pass Filter | Connectorized | 50Ohm | 28.5M | 0.9dB | 15dB | 5.5dB min @ 33MHz 47dB min @ 36MHz 60dB min @ 50 ~ 500MHz | 238.0 X 60.0 X 50.0mm | ||
| 255 | 255MHz | MLP-20-530M_510MS-A | Low Pass Filter | Connectorized | 50Ohm | 510MHz | 0.6dB | 15dB | 50dB min @ 1000MHz | 19.0 X 43.0 X 18.0mm | ||
| 255 | 255MHz | MLP-20-530M_510MS-B | Low Pass Filter | Connectorized | 50Ohm | 510MHz | 0.6dB | 15dB | 50dB min @ 1000MHz | 23.0 X 50.0 X 18.0mm | ||
| 370 | 370MHz | MLP-30-710_680MT | Low Pass Filter | Connectorized | 50Ohm | 680MHz | 1.0dB | 15dB | 40dB min @ 1050MHz 60dB min @ 1400MHz 60dB min @ 3000MHz | 43.0 X 19.0 X 20.0mm | ||
| 380 | 380MHz | MLP-30-730_700MT | Low Pass Filter | Connectorized | 50Ohm | 700MHz | 1.0dB | 18dB | 40dB min @ 1050MHz 60dB min @ 1400MHz 60dB min @ 3000MHz | 43.0 X 19.0 X 20.0mm | ||
| 20 | 20MHz | MLP-C20_20ML-A-R0 | Low Pass Filter | SMD | 50Ohm | 23MHz | 1.0dB | 15dB | 60dB min @ 30MHz | 25.4 X 12.7 X 6.7mm | ||
| 28 | 28MHz | MLP-C28_1MS-A-R0 | Low Pass Filter | SMD | 50Ohm | 1MHz | 0.6dB | 15dB | 40dB min @ 54 ~ 100MHz | 37.0 X 10.0 X 6.5mm | ||
| 37 | 37.5MHz | MLP-C37.5_15ML-A | Low Pass Filter | BEAD | 50Ohm | 15MHz | 0.6dB | 15dB | 40dBc min @ 59 ~ 1000MHz | 110.0 X 40.0 X 23.0mm | ||
| 56 | 56MHz | MLP-C56_22ML-A | Low Pass Filter | BEAD | 50Ohm | 22MHz | 0.6dB | 15dB | 40dBc min @ 90 ~ 1000MHz | 100.0 X 40.0 X 23.0mm | ||
| 375 | 375MHz | MLB-375BP190M | Band Pass Filter | SMD | 50Ohm | 190MHz | 2.0dB | 15dB | 45dB min @ DC ~ 100MHz 45dB min @ 560MHz 40dB min @ 560 ~ 1200MHz | 47.0 X 15.0 X 7.0mm | ||
| 387 | 387MHz | MLB-387BP15MDH | Band Pass Filter | Connectorized | 50Ohm | 15MHz | 3.5dB | 15dB | 45dB min @ 350MHz 40dB min @ 420MHz | 65.0 X 38.0 X 25.0mm | ||
| 425 | 425MHz | MLB-425BP50M_R01 | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 3.0dB | 15dB | 20dB min @ 350MHz 35dB min @ 550MHz | 65.0 X 38.0 X 25.0mm | ||
| 425 | 425MHz | MLB-425BP70M | Band Pass Filter | SMD | 50Ohm | 70MHz | 3.0dB | 15dB | - | 38.1 X 12.7 X 8.0mm | ||
| 430 | 430MHz | MLB-430BP60M | Band Pass Filter | BEAD | 50Ohm | 60MHz | 3.0dB | 15dB | 50dB min @ DC ~ 380MHz 60dB min @ 800MHz | 55.0 X 20.0 X 13.0mm | ||
| 433 | 433.5MHz | MLB-433BP123BA | Band Pass Filter | BEAD | 50Ohm | 123MHz | 3.5dB | 15dB | 50dB min @ 1 ~ 247.5MHz 60dB min @ 500 ~ 2000MHz | 50 X 20.0 X 10.0mm | ||
| 433 | 433.5MHz | MLB-433BP123M_R01 | Band Pass Filter | SMD | 50Ohm | 123MHz | 3.5dB | 15dB | 60dB min @ 1 ~ 247.5MHz 35dB min @ 500 ~ 2000MHz | 47.0 X 15.0 X 7.0mm | ||
| 450 | 450MHz | MLB-450BP100M_R01 | Band Pass Filter | Connectorized | 50Ohm | 100MHz | 2.0dB | 15dB | 20dB min @ 350MHz 20dB min @ 600MHz | 65.0 X 38.0 X 25.0mm | ||
| 475 | 475MHz | MLB-475BP50M_R01 | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 3.0dB | 15dB | 20dB min @ 400MHz 35dB min @ 600MHz | 65.0 X 38.0 X 25.0mm | ||
| 475 | 475MHz | MLB-475BP270M | Band Pass Filter | Connectorized | 50Ohm | 270MHz | 2.0dB | 16dB | 25dBc min @ DC ~ 305MHz 10dBc min @ 1625MHz 10dBc min @ 2000MHz 50dBc min @ 3000MHz | 30.0 X 10.0 X 5.0mm | ||
| 495 | 495MHz | MLB-495BP50B | Band Pass Filter | BEAD | 50Ohm | 50MHz | 1.8dB | 10dB | 60dB min @ DC ~ 240MHz 50dB min @ 240 ~ 340MHz 30dB min @ 340 ~ 410MHz 30dB min @ 580 ~ 650MHz 50dB min @ 650 ~ 750MHz 60dB min @ 750 ~ 1400MHz | 37.0 X 10.0 X 6.5mm | ||
| 257 | 257.5MHz | MLB-512-LP192-MA | Low Pass Filter | SMD | 50Ohm | 192MHz | 2.0dB | 15dB | 10dB min @ 640MHz 40dB min @ 960MHz | 13.0 X 12.0 X 6.5mm | ||
| 257 | 257.5MHz | MLB-512-LP192-MD | Low Pass Filter | SMD | 50Ohm | 192MHz | 2.0dB | 15dB | 10dB min @ 640MHz 40dB min @ 960MHz | 25.4 X 12.7 X 6.7mm | ||
| 525 | 525MHz | MLB-525BP50M_R01 | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 3.0dB | 15dB | 20dB min @ 450MHz 35dB min @ 650MHz | 65.0 X 38.0 X 25.0mm | ||
| 550 | 550MHz | MLB-550BP100M_R01 | Band Pass Filter | Connectorized | 50Ohm | 100MHz | 2.0dB | 15dB | 35dB min @ 350MHz 30dB min @ 700MHz | 65.0 X 38.0 X 25.0mm | ||
| 575 | 575MHz | MLB-575BP50M_R01 | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 3.0dB | 15dB | 20dB min @ 500MHz 35dB min @ 700MHz | 65.0 X 38.0 X 25.0mm | ||
| 575 | 575MHz | MLB-575BP160BA | Band Pass Filter | BEAD | 50Ohm | 160MHz | 3.5dB | 15dB | 60dB min @ 1 ~ 327.5MHz 60dB min @ 742.5 ~ 3000MHz | 50.0 X 20.0 X 10.0mm | ||
| 575 | 575MHz | MLB-575BP160M_R01 | Band Pass Filter | SMD | 50Ohm | 160MHz | 3.5dB | 15dB | 60dB min @ 1 ~ 327.5MHz 60dB min @ 742.5 ~ 3000MHz | 47.0 X 15.0 X 7.0mm | ||
| 625 | 625MHz | MLB-625BP50M_R01 | Band Pass Filter | Connectorized | 50Ohm | 50MHz | 3.0dB | 15dB | 15dB min @ 550MHz 30dB min @ 750MHz | 65.0 X 38.0 X 25.0mm | ||
| 650 | 650MHz | MLB-650BP100M_R01 | Band Pass Filter | Connectorized | 50Ohm | 100MHz | 2.0dB | 15dB | 20dB min @ 500MHz 20dB min @ 800MHz | 65.0 X 38.0 X 25.0mm | ||
| 240 | 240MHz | MLB-240-BP06M | Band Pass Filter | SMD | 50Ohm | 6MHz | 3.5dB | 15dB | 60dB min @ DC ~ 180MHz 60dB min @ 300MHz | 44.53 X 14.92 X 7.0mm | ||
| 240 | 240MHz | MLB-240-BP6.5M | Band Pass Filter | SMD | 50Ohm | 6.5MHz | 3.5dB | 15dB | 60dB min @ DC ~ 180MHz 60dB min @ 300MHz | 44.53 X 14.92 X 7.0mm | ||
| 270 | 270MHz | MLB-270-BP05M | Band Pass Filter | SMD | 50Ohm | 5MHz | 3.0dB | 15dB | 60dB min @ DC ~ 210MHz 30dB min @ 240MHz 60dB min @ 330MHz | 47.0 X 15.0 X 7.0mm | ||
| 270 | 270MHz | MLB-270-BP06M | Band Pass Filter | SMD | 50Ohm | 6MHz | 3.5dB | 15dB | 60dB min @ DC ~ 210MHz 30dB min @ 240MHz 60dB min @ 330MHz | 44.53 X 14.92 X 7.0mm | ||
| 270 | 270MHz | MLB-270-BP10M | Band Pass Filter | SMD | 50Ohm | 10MHz | 3.5dB | 15dB | 60dB min @ DC ~ 210MHz 30dB min @ 240MHz 60dB min @ 330MHz | 44.53 X 14.92 X 7.0mm | ||
| 270 | 270MHz | MLB-270-BP10MA | Band Pass Filter | SMD | 50Ohm | 10MHz | 5.0dB | 15dB | 60dB min @ DC ~ 210MHz 30dB min @ 240MHz 60dB min @ 330MHz | 44.53 X 14.92 X 7.0mm | ||
| 270 | 270MHz | MLB-270-BP10.5M | Band Pass Filter | SMD | 50Ohm | 10.5MHz | 3.5dB | 15dB | 60dB min @ DC ~ 210MHz 30dB min @ 240MHz 60dB min @ 330MHz | 44.53 X 14.92 X 7.0mm | ||
| 270 | 270MHz | MLB-270BP140M | Band Pass Filter | SMD | 50Ohm | 140MHz | 2.0dB | 16dB | 25dBc min @ DC ~ 170MHz 10dBc min @ 1625MHz 10dBc min @ 2000MHz 50dBc min @ 3000MHz | 30.48 X 10.16 X 5.0mm | ||
| 274 | 274MHz / 335MHz | MLB-274-335BP28-30MDH | Duplexer | Connectorized | 50Ohm | 28MHz / 30MHz | 3.5dB | 15dB | 40dB @ DC ~ 220MHz 20dB @ 300 ~ 500MHz / 20dB @ DC ~ 300MHz 40dB @ 380 ~ 500MHz | 133.0 X 56.0 X 26.0mm | ||
| 274 | 274MHz / 387.5MHz | MLB-274-387BP15MDH | Duplexer | Connectorized | 50Ohm | 28MHz / 15MHz | 3.5dB | 15dB | 40dB @ DC ~ 220MHz 20dB @ 300 ~ 500MHz / 40dB @ DC ~ 300MHz 40dB @ 450 ~ 1000MHz | 133.0 X 56.0 X 26.0mm | ||
| 270 | 270MHz | MLB-274BP28MDH | Band Pass Filter | Connectorized | 50Ohm | 28MHz | 3.5dB | 15dB | 20dB min @ 250MHz 20dB min @ 300MHz | 65.0 X 38.0 X 25.0mm | ||
| 300 | 300MHz | MLB-300BP01M | Band Pass Filter | SMD | 50Ohm | 1MHz | 4.0dB | 15dB | 30dB min @ 250MHz 30dB min @ 350MHz | 25.4 X 12.7 X 6.7mm | ||
| 300 | 300MHz | MLB-300BP02M | Band Pass Filter | SMD | 50Ohm | 2MHz | 4.0dB | 15dB | 30dB min @ 250MHz 30dB min @ 350MHz | 25.4 X 12.7 X 6.7mm | ||
| 300 | 300MHz | MLB300-BP36-MD | Band Pass Filter | SMD | 50Ohm | 36MHz | 3.0dB | 15dB | 60dB min @ 42MHz | 25.4 X 12.7 X 6.7mm | ||
| 325 | 325MHz | MLB-325-BP60M | Band Pass Filter | SMD | 50Ohm | 60MHz | 3.0dB | 12dB | 45dBc min @ 200MHz 45dBc min @ 450MHz | 47.0 X 15.0 X 7.0mm | ||
| 335 | 335MHz | MLB-335BP30MDH | Band Pass Filter | Connectorized | 50Ohm | 30MHz | 3.5dB | 15dB | 40dB min @ 300MHz 40dB min @ 370MHz | 65.0 X 38.0 X 25.0mm | ||
| 340 | 340MHz | MLB-340BP60M | Band Pass Filter | SMD | 50Ohm | 60MHz | 2.0dB | 15dB | 25dBc min @ 250MHz 45dBc min @ 680MHz | 47.0 X 15.0 X 7.0mm | ||
| 350 | 350MHz | MLB-350BP100MA | Band Pass Filter | SMD | 50Ohm | 100MHz | 2.0dB | 15dB | 20dB min @ 240MHz 20dB min @ 480MHz 60dB min @ 1500MHz | 25.4 X 12.7 X 6.7mm | ||
| 350 | 350MHz | MLB-350BP100MD | Band Pass Filter | SMD | 50Ohm | 100MHz | 2.0dB | 15dB | 20dB min @ 237MHz 20dB min @ 450MHz 60dB min @ 1500MHz | 25.4 X 12.7 X 6.7mm | ||
| 370 | 370MHz | MLB-370BP200M | Band Pass Filter | SMD | 50Ohm | 200MHz | 2.0dB | 15dB | 45dB min @ DC ~ 240MHz 45dB min @ 560MHz 60dB min @ 560 ~ 1200MHz | 47.0 X 15.0 X 7.0mm | ||
| 100 | 100MHz | MLB-100BP08ME | Band Pass Filter | SMD | 50Ohm | 8MHz | 3.0dB | 18dB | 50dB min @ 80MHz 50dB min @ 120MHz | 38.1 X 12.7 X 9.5mm | ||
| 100 | 100MHz | MLB-100BP16ME | Band Pass Filter | SMD | 50Ohm | 16MHz | 3.0dB | 18dB | 40dB min @ 80MHz 40dB min @ 120MHz | 38.1 X 12.7 X 9.5mm | ||
| 125 | 125MHz | MLB-125BP05M | Band Pass Filter | SMD | 50Ohm | 5MHz | 3.0dB | 15dB | 40dB min @ 85MHz 40dB min @ 165MHz | 25.4 X 12.7 X 6.7mm | ||
| 140 | 140MHz | MLB-140BP5M | Band Pass Filter | SMD | 50Ohm | 5MHz | 3.5dB | 15dB | 40dB min @ 100MHz 40dB min @ 180MHz | 25.4 X 12.7 X 6.7mm | ||
| 140 | 140MHz | MLB-140BP10M | Band Pass Filter | SMD | 50Ohm | 10MHz | 3.0dB | 15dB | 40dB min @ 100MHz 40dB min @ 180MHz | 25.4 X 12.7 X 6.7mm | ||
| 140 | 140MHz | MLB-140BP20M | Band Pass Filter | SMD | 50Ohm | 20MHz | 3.0dB | 15dB | 40dB min @ 96MHz 40dB min @ 184MHz | 25.4 X 12.7 X 6.7mm | ||
| 140 | 140MHz | MLB-140BP40M | Band Pass Filter | SMD | 50Ohm | 40MHz | 1.8dB | 15dB | 40dB min @ 96MHz 40dB min @ 184MHz | 25.4 X 12.7 X 6.7mm | ||
| 150 | 150MHz | MLB-150BP20ME | Band Pass Filter | SMD | 50Ohm | 20MHz | 3.0dB | 18dB | 60dB min @ 110MHz 60dB min @ 190MHz | 38.1 X 12.7 X 9.5mm | ||
| 155 | 155MHz | MLB-155BP40M | Band Pass Filter | SMD | 50Ohm | 40MHz | 3.0dB | 15dB | 55dB min @ 100MHz 50dB min @ 225MHz | 38.1 X 12.7 X 8.0mm | ||
| 155 | 155MHz | MLB-155BP55M | Band Pass Filter | SMD | 50Ohm | 55MHz | 3.0dB | 15dB | 50dB min @ 100MHz 45dB min @ 225MHz | 38.1 X 12.7 X 8.0mm | ||
| 159 | 159.5MHz | MLB-159.5BP6M | Band Pass Filter | SMD | 50Ohm | 6MHz | 3.5dB | 15dB | 30dB min @ 140MHz 30dB min @ 180MHz 50dB min @ 125MHz 50dB min @ 205MHz | 47.0 X 15.0 X 7.0mm | ||
| 160 | 160MHz | MLB-160BP03M | Band Pass Filter | Connectorized | 50Ohm | 3MHz | 7.0dB | 15dB | 40dB min @ 130MHz 40dB min @ 190MHz | 65.0 X 38.0 X 25.0mm | ||
| 162 | 162MHz | MLB-162BP1M | Band Pass Filter | SMD | 50Ohm | 1MHz | 6.0dB | 15dB | 50dB min @ 140MHz 50dB min @ 180MHz 60dB min @ 125MHz 60dB min @ 205MHz | 47.0 X 15.0 X 7.0mm | ||
| 180 | 180MHz | MLB-180BP100M | Band Pass Filter | SMD | 50Ohm | 100MHz | 3.0dB | 15dB | 30dB min @ DC ~ 140MHz 30dB min @ 270MHz 30dB min @ 1260 ~ 1440MHz | 38.1 X 12.7 X 8.0mm | ||
| 187 | 187.5MHz | MLB-187.5BP100M_R03 | Band Pass Filter | BEAD | 50Ohm | 100MHz | 3.0dB | - | 35dB min @ 1 ~ 112.5MHz 45dB min @ 262.5 ~ 4500MHz | 29.0 X 20.0 X 10.0mm | ||
| 200 | 200MHz | MLB-200BP20ME | Band Pass Filter | SMD | 50Ohm | 20MHz | 3.0dB | 18dB | 60dB min @ 160MHz 60dB min @ 240MHz | 38.1 X 12.7 X 8.0mm | ||
| 200 | 200MHz | MLB-200BP36ME | Band Pass Filter | SMD | 50Ohm | 36MHz | 3.0dB | 18dB | 50dB min @ 160MHz 50dB min @ 240MHz | 38.1 X 12.7 X 8.0mm | ||
| 232 | 232.5MHz / 274MHz / 335MHz | MLB-232-274-335BP15-28-30MDH | Duplexer | Connectorized | 50Ohm | 25MHz / 28MHz / 30MHz | 3.5dB | 15dB | 20dB @ DC ~ 210MHz 20dB @ 260 ~ 350MHz / 10dB @ DC ~ 220MHz 30dB @ 320 ~ 500MHz / 20dB @ DC ~ 310MHz 30dB @ 370 ~ 500MHz | 180.0 X 56.0 X 28.0mm | ||
| 232 | 232MHz | MLB-232BP15MDH | Band Pass Filter | Connectorized | 50Ohm | 15MHz | 3.5dB | 15dB | 45dB min @ 200MHz 40dB min @ 260MHz | 65.0 X 38.0 X 25.0mm | ||
| 240 | 240MHz | MLB-240-BP03M | Band Pass Filter | SMD | 50Ohm | 3MHz | 3.0dB | 15dB | 60dB min @ DC ~ 180MHz 60dB min @ 300MHz | 47.0 X 15.0 X 7.0mm | ||
| 12 | 12MHz | MLB-12BP8M | Band Pass Filter | SMD | 50Ohm | 8MHz | 3.0dB | 15dB | 35dB min @ 0.3MHz 35dB min @ 1560MHz 35dB min @ 1645 ~ 2500MHz | 25.4 X 12.7 X 6.7mm | ||
| 30 | 30MHz | MLB-30BP1.4MDH | Band Pass Filter | Connectorized | 50Ohm | 1.4MHz | 4.0dB | 15dB | - | 60.0 X 30.0 X 10.0mm | ||
| 30 | 30MHz | MLB-30BP2.4MDH | Band Pass Filter | Connectorized | 50Ohm | 2.4MHz | 4.0dB | 15dB | - | 60.0 X 30.0 X 10.0mm | ||
| 30 | 30MHz | MLB-30-BP03M | Band Pass Filter | SMD | 50Ohm | 3MHz | 3.0dB | 15dB | 45dB min @ DC ~ 20MHz 60dB min @ 80 ~ 300MHz | 47.0 X 15.0 X 7.0mm | ||
| 30 | 30MHz | MLB-30BP4.8MDH | Band Pass Filter | Connectorized | 50Ohm | 4.8MHz | 4.0dB | 15dB | - | 60.0 X 30.0 X 10.0mm | ||
| 30 | 30MHz | MLB-30BP6MH | Band Pass Filter | Connectorized | 50Ohm | 6MHz | 3.5dB | 15dB | 15dB min @ Fo+10MHz 25dB min @ Fo-10MHz 40dB min @ Fo+20MHz 60dB min @ Fo-20MHz | 65.0 X 38.0 X 25.0mm | ||
| 30 | 30MHz | MLB-30-BP06M | Band Pass Filter | SMD | 50Ohm | 6MHz | 3.5dB | 15dB | 45dB min @ DC ~ 20MHz 60dB min @ 80 ~ 300MHz | 44.53 X 14.92 X 7.0mm | ||
| 30 | 30MHz | MLB-30BP6M | Band Pass Filter | BEAD | 50Ohm | 6MHz | 2.5dB | 15dB | 60dB min @ DC ~ 18MHz 60dB min @ 42 ~ 1000MHz | 47.0 X 11.5 X 9.0mm | ||
| 30 | 30MHz | MLB-30-BP10M | Band Pass Filter | SMD | 50Ohm | 10MHz | 3.5dB | 15dB | 45dB min @ DC ~ 20MHz 60dB min @ 80 ~ 300MHz | 44.53 X 14.92 X 7.0mm | ||
| 30 | 30MHz | MLB-30-BP10.5M | Band Pass Filter | SMD | 50Ohm | 10.5MHz | 3.5dB | 15dB | 45dB min @ DC ~ 20MHz 60dB min @ 80 ~ 300MHz | 44.53 X 14.92 X 7.0mm | ||
| 40 | 40MHz | MLB-40-BP08M | Band Pass Filter | SMD | 50Ohm | 8MHz | 3.0dB | 15dB | 45dB min @ DC ~ 25MHz 45dB min @ 60MHz | 44.53 X 14.92 X 7.0mm | ||
| 40 | 40MHz | MLB-40-BP8.5M | Band Pass Filter | SMD | 50Ohm | 8.5MHz | 3.5dB | 15dB | 60dBc min @ DC ~ 25MHz 50dBc min @ 60MHz | 44.53 X 14.92 X 7.0mm | ||
| 60 | 60MHz | MLB60-BP5ME_R02 | Band Pass Filter | SMD | 50Ohm | 5MHz | 4.0dB | 15dB | 65dB min @ 50MHz 65dB min @ 70MHz | 40.0 X 20.0 X 11.0mm | ||
| 60 | 60MHz | MLB-60-BP15ME | Band Pass Filter | SMD | 50Ohm | 15MHz | 4.0dB | 15dB | 50dB min @ 5 ~ 32MHz 35dB min @ 32 ~ 45MHz 35dB min @ 75 ~ 88MHz 60dB min @ 88 ~ 338MHz | 47.0 X 15.0 X 7.0mm | ||
| 70 | 70MHz | MLB-70BP5M | Band Pass Filter | SMD | 50Ohm | 5MHz | 4.0dB | 18dB | 40dB min @ 55MHz 40dB min @ 85MHz | 25.4 X 12.7 X 6.7mm | ||
| 70 | 70MHz | MLB-70BP12HN | Band Pass Filter | Connectorized | 50Ohm | 5MHz | 3.0dB | 17dB | 35dB min @ 50MHz 35dB min @ 90MHz | 65.0 X 38.0 X 25.0mm | ||
| 70 | 70MHz | MLB-70BP28M | Band Pass Filter | SMD | 50Ohm | 28MHz | 2.5dB | 15dB | 50dB min @ 30MHz 45dB min @ 130MHz | 25.4 X 12.7 X 6.7mm | ||
| 80 | 80MHz | MLB-80BP22M | Band Pass Filter | SMD | 50Ohm | 22MHz | 3.0dB | 15dB | 50dB min @ 45MHz 30dB min @ 115MHz | 25.4 X 12.7 X 6.7mm | ||
| 98 | 98MHz | MLB-98BP20M | Band Pass Filter | SMD | 50Ohm | 20MHz | 4.0dB | 15dB | 35dB min @ 80MHz 35dB min @ 120MHz | 47.0 X 15.0 X 7.0mm | ||
| 100 | 100MHz | MLB-100BP5M | Band Pass Filter | SMD | 50Ohm | 5MHz | 3.0dB | 15dB | 40dB min @ 60MHz 40dB min @ 140MHz | 25.4 X 12.7 X 6.7mm |
