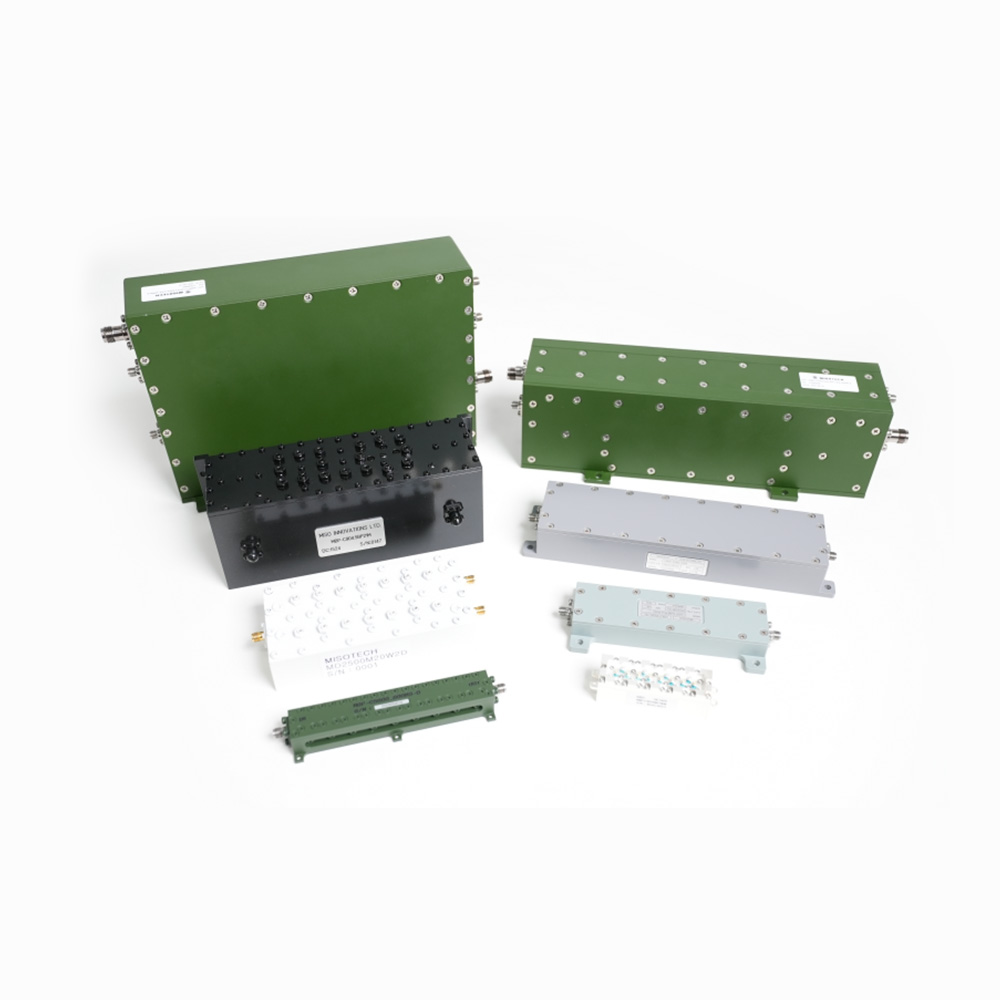

Cavity Filter

Products

Cavity Filter

Applications

Avionics
Military
Base stations
Communications

Features

Low Loss
Very high selectivity
Wide range of bandwidth -0.5% to 70%
High peak power
Excellent temperature stability
Compliant Typical Performance

Typical Performance Characteristics

Q Factor : up to 20000
Temperature Range : -55 to 85℃
Temperature Stability: as low as 1ppm
Shock: 10G
Virantion: 20G
Humidity: 0~95%
Power Range: 1~20KW

CF sort	Center Feq.	Part No	Filter Type	Type	Impedance	Band Width	Insertion Loss	Return Loss	Attenuation	Dimention	pdf
789	789.5MHz / 942.5MHz / 1842.5MHz / 2140MHz / 2655MHz	MMP-5COM_758-2690MN-A-R0	Multiplexer	Connectorized	50Ohm	63MHz / 35MHz / 75MHz / 60MHz / 70MHz	1.3dB	14dB	60dB min @ Other Ports	380.0 X 200.0 X 44.0mm	pdf
435	435MHz / 760.5MHz ./ 910MHz / 2550MHz / 1987.5MHz / 3600MHz	MMP-6COM_420-3800MM-A-R0	Multiplexer	Connectorized	50Ohm	30MHz / 121MHz / 100MHz / 300MHz / 365MHz / 400MHz	0.4dB	14dB	50dB min @ Other Ports	275.0 X 195.0 X 56.5mm	pdf
435	435MHz / 785MHz / 931MHz / 1355MHz / 2550MHz / 1987.5MHz / 3600MHz / 5400MHz	MMP-8COM_420-5900MS-A-R0	Multiplexer	Connectorized	50Ohm	30MHz / 170MHz / 58MHz / 510MHz / 300MHz / 365MHz / 400MHz / 1000MHz	0.7dB	15dB	50dB min @ Other Ports	299.4 X 217.9 X 54.0mm	pdf
1842	1842.5MHz	MMP-C1842.5_75M-A-R1	Multiplexer	Connectorized	50Ohm	75MHz	0.5dB	13dB	50dBc min @ 1710 ~ 1785MHz 50dBc min @ 1950 ~ 2100MHz	198.0 X 116.0 X 50.0mm	pdf
4080	4080MHz	MLP-C4080_8160MS-A-R0	Low Pass Filter	Connectorized	50Ohm	8160MHz	2.0dB	15dB	37dBc min @ 14000 ~ 36000MHz	42.0 X 17.0 X 9.0mm	pdf
4500	4500MHz	MLP-C4500_1300MH-A-R0	Low Pass Filter	Connectorized	50Ohm	1300MHz	0.4dB	14dB	60dB min @ Other Ports	18.0 X 70.0 X 12.0mm	pdf
6120	6120MHz	MLP-C6120_12.24GS-A-R0	Low Pass Filter	Connectorized	50Ohm	12240MHz	0.9dB	15dB	26dBc min @ 14000 ~ 36000MHz	42.0 X 17.0 X 9.0mm	pdf
4000	4000MHz	MLP-C8000_4000MC-A-R0	Low Pass Filter	Connectorized	50Ohm	8000MHz	1.5dB	15dB	50dB min @ 9600 ~ 16000MHz	70.0 X 14.0 X 7.0mm	pdf
4000	4000MHz	MLP-C8000_4000MC-B-R0	Low Pass Filter	BEAD	50Ohm	8000MHz	1.5dB	15dB	50dB min @ 9600 ~ 16000MHz	37.0 X 14.0 X 10.0mm	pdf
550	550MHz	MLP-DC-1100MN	Low Pass Filter	Connectorized	50Ohm	1100MHz	0.15dB	14dB	40dBc min @ 1600MHz 70dBc min @ 2000MHz 75dBc min @ 2060MHz 83dBc min @ 2090MHz	222.0 X 26.0 X 27.0mm	pdf
425	425MHz / 1650MHz / 5500MHz	MMP-3COM_350-6000MN-B-R0	Multiplexer	Connectorized	50Ohm	150MHz / 1700MHz / 1000MHz	1.4dB	14dB	70dB min @ Other Ports	140.0 X 170.0 X 50.0mm	pdf
452	452.5MHz / 1680MHz / 5512.5MHz	MMP-3COM_415-5875MN-A-R0	Multiplexer	Connectorized	50Ohm	75MHz / 1640MHz / 725MHz	1.0dB	15dB	70dB min @ Other Ports	106.0 X 202.0 X 57.0mm	pdf
445	445MHz / 895.5MHz / 4125MHz	MMP-3COM_420-5850MT-B-R1	Multiplexer	Connectorized	50Ohm	50MHz / 65MHz / 810MHz	1.2dB	15dB	30dB min @ 420 ~ 470MHz 30dB min @ 863 ~ 925MHz 30dB min @ 2400 ~ 2485MHz 30dB min @ 5125 ~ 5850MHz	71.0 X 46.0 X 20.5mm	pdf
2400	2400MHz / 5100MHz / 5800MHz	MMP-3COM_2300-5900MN-A-R0	Multiplexer	Connectorized	50Ohm	200MHz	0.5dB	16dB	50dB min @ Other Ports	135.0 X 80.0 X 21.0mm	pdf
456	456MHz / 833MHz / 1175MHz / 5500MHz	MMP-4COM_400-6000MD-A-R0	Multiplexer	Connectorized	50Ohm	112MHz / 86MHz / 350MHz / 1000MHz	0.4dB	14dB	50dB min @ Other Ports	285.0 X 225.0 X 80.0mm	pdf
410	410MHz / 904MHz / 1385MHz / 2252.5MHz / 5500MHz	MMP-5COM_350-6000MN-A-R0	Multiplexer	Connectorized	50Ohm	120MHz / 128MHz / 450MHz / 495MHz / 1000MHz	1.7dB	14dB	70dB min @ Other Ports	170.0 X 180.0 X 50.0mm	pdf
450	450MHz / 900MHz / 1385MHz / 2400MHz / 5800MHz	MMP-5COM_400-5900MN-A-R0	Multiplexer	Connectorized	50Ohm	100MHz / 80MHz / 450MHz / 200MHz / 200MHz	0.8dB	14dB	60dB min @ Other Ports	243.0 X 271.0 X 65.0mm	pdf
445	445MHz / 895MHz / 1385MHz / 2450MHz / 5475MHz	MMP-5COM_420-5900MN-A-R0	Multiplexer	Connectorized	50Ohm	50MHz / 70MHz / 450MHz / 100MHz / 850MHz	1.7dB	12dB	60dB min @ Port 1 70dB min @ Port 2 40dB min @ Port 3 70dB min @ Port 4 70dB min @ Port 5	175.0 X 160.0 X 43.0mm	pdf
450	450MHz / 896.5MHz / 1385MHz / 2450MHz / 5475MHz	MMP-5COM_430-5900MN-A-R9	Multiplexer	Connectorized	50Ohm	40MHz / 67MHz / 450MHz / 100MHz / 850MHz	1.2dB	12dB	50dBc min @ 863 ~ 930MHz 50dBc min @ 1200 ~ 1650MHz 50dBc min @ 2400 ~ 2500MHz 50dBc min @ 5050 ~ 5900MHz / 30dBc min @ DC ~ 540MHz 25dBc min @ 1160 ~ 1610MHz 50dBc min @ 2400 ~ 2500MHz 50dBc min @ 5050 ~ 5900MHz / 25dBc min @ DC ~ 930MHz 30dBc min @ 1910MHz 50dBc min @ 2400 ~ 2500MHz 50dBc min @ 5050 ~ 5900MHz / 50dBc min @ DC ~ 1610MHz 25dBc min @ 2005 & 4100MHz 50dBc min @ 5050 ~ 5900MHz / 50dBc min @ DC ~ 2500MHz 50dBc min @ 2500 ~ 4100MHz 3dBc min @ 6000MHz 25dBc min @ 7500MHz	160.0 X 175.0 X 40.0mm	pdf
450	450MHz / 980MHz / 1425MHz / 2500MHz / 5800MHz	MMP-5COM_430-5900MN-B-R1	Multiplexer	Connectorized	50Ohm	40MHz / 240MHz / 450MHz / 400MHz / 200MHz	1.2dB	15dB	60dB min @ 860 ~ 1100MHz 60dB min @ 1200 ~ 1650MHz 60dB min @ 2300 ~ 2700MHz 60dB min @ 5700 ~ 5900MHz / 50dB min @ 430 ~ 470MHz 30dB min @ 1200 ~ 1650MHz 60dB min @ 2300 ~ 2700MHz 60dB min @ 5700 ~ 5900MHz / 60dB min @ 430 ~ 470MHz 30dB min @ 860 ~ 1100MHz 60dB min @ 2300 ~ 2700MHz 60dB min @ 5700 ~ 5900MHz / 60dB min @ 430 ~ 470MHz 50dB min @ 860 ~ 1100MHz 50dB min @ 1200 ~ 1650MHz 60dB min @ 5700 ~ 5900MHz / 60dB min @ 430 ~ 470MHz 60dB min @ 860 ~ 1100MHz 60dB min @ 1200 ~ 1650MHz 60dB min @ 2300 ~ 2700MHz	210.0 X 190.0 X 40.0mm	pdf
707	707.5MHz / 855.5MHz / 1947.5MHz / 2500MHz / 3750MHz	MMP-5COM_617-4200MD-T1-R0	Multiplexer	Connectorized	50Ohm	181MHz / 81MHz / 505MHz / 400MHz / 900MHz	1.2dB	14dB	50dB min @ Other Ports	265.0 X 222.0 X 47.0mm	pdf
785	785MHz / 931MHz / 1355MHz / 1987.5MHz / 2550MHz	MMP-5COM_700-2700MS-A-R1	Multiplexer	Connectorized	50Ohm	170MHz / 58MHz / 510MHz / 365MHz / 300MHz	0.7dB	15dB	50dB min @ Other Ports	220.0 X 218.0 X 54.0mm	pdf
725	725.5MHz / 873.5MHz / 1747.5MHz / 1950MHz / 2535MHz	MMP-5COM_703-2570MN-A-R2	Multiplexer	Connectorized	50Ohm	45MHz / 83MHz / 75MHz / 60MHz / 70MHz	0.9dB	14dB	50dB min @ Other Ports	358.0 X 196.0 X 44.0mm	pdf
809	809MHz / 942.5MHz / 1947.5MHz / 2500MHz / 3750MHz	MMP-5COM_703-4200MD-T2-R0	Multiplexer	Connectorized	50Ohm	212MHz / 35MHz / 505MHz / 400MHz / 900MHz	1.2dB	14dB	50dB min @ Other Ports	270.0 X 230.0 X 47.0mm	pdf
69	69MHz	MLP-C69_138MN-A-R0	Low Pass Filter	Connectorized	50Ohm	138MHz	0.3dB	16dB	55dBc min @ 276MHz 55dBc min @ 414MHz	175.0 X 80.0 X 40.0mm	pdf
85	85MHz	MLP-C85_170MD-A-R0	Low Pass Filter	Connectorized	50Ohm	170MHz	0.4dB	15dB	60dB min @ 300MHz	129.0 X 497.0 X 47.0mm	pdf
131	131.5MHz	MLP-C131.5_263MN-A-R0	Low Pass Filter	Connectorized	50Ohm	263MHz	0.3dB	16dB	55dBc min @ 526MHz 55dBc min @ 789MHz	160.0 X 65.0 X 35.0mm	pdf
225	225MHz	MLP-C225_250MN-A-R0	Low Pass Filter	Connectorized	50Ohm	250MHz	1.0dB	15dB	80dBc min @ 430MHz	310.0 X 80.0 X 40.0mm	pdf
250	250MHz	MLP-C250_500MN-A-R0	Low Pass Filter	Connectorized	50Ohm	500MHz	0.3dB	16dB	55dBc min @ 1000MHz 55dBC min @ 1500MHz	160.0 X 40.0 X 30.0mm	pdf
250	250MHz	MLP-C250_500MS-A	Low Pass Filter	Connectorized	50Ohm	500MHz	0.45dB	18dB	65dB min @ 860 ~ 1290MHz 30dB min @ 3550 ~ 6000MHz	89.2 X 25.4 X 20.5mm	pdf
300	300MHz	MLP-C300_500MN-A-R0	Low Pass Filter	Connectorized	50Ohm	500MHz	0.5dB	18dB	45dB min @ 600 ~ 3000MHz	260.0 X 97.0 X 25.0mm	pdf
472	472.5MHz	MLP-C472.5_945MS-A	Low Pass Filter	Connectorized	50Ohm	945MHz	0.45dB	18dB	70dB min @ 1736 ~ 4800MHz 60dB min @ 4800 ~ 5000MHz	96.0 X 29.5 X 15.5mm	pdf
540	540MHz	MLP-C540_920MH-A-R0	Low Pass Filter	BEAD	50Ohm	920MHz	0.5dB	18dB	40dB min @ 1200MHz 60dB min @ 1500 ~ 1600MHz	192.5 X 22.0 X 14.0mm	pdf
540	540MHz	MLP-C540_920MS-A-R0	Low Pass Filter	Connectorized	50Ohm	920MHz	0.5dB	18dB	40dB min @ 1200MHz 60dB min @ 1500 ~ 1600MHz	192.5 X 22.0 X 14.0mm	pdf
545	545MHz	MLP-C545_1090MS-A-R1	Low Pass Filter	Connectorized	50Ohm	1090MHz	0.5dB	14dB	40dBc min @ 2060 ~ 3270MHz	25.0 X 141.0 X 27.0mm	pdf
550	550MHz	MLP-C550_900MH-A-R0	Low Pass Filter	Connectorized	50Ohm	900MHz	0.5dB	18dB	60dB min @ 1500 ~ 6000MHz	140.3 X 23.0 X 24.0mm	pdf
850	850MHz	MLP-C850_1700MS-A	Low Pass Filter	Connectorized	50Ohm	1699.5MHz	0.4dB	18dB	60dB min @ 2530 ~ 2700MHz 65dB min @ 3140 ~ 4710MHz	96.012 X 29.464 X 15.494mm	pdf
1050	1050MHz	MLP-C1050_400MS-A-R2	Low Pass Filter	Connectorized	50Ohm	400MHz	0.5dB	15dB	15dBc min @ 1400MHz 30dBc min @ 1800 ~ 2500MHz	131.4 X 34.0 X 18.0mm	pdf
1060	1060MHz	MLP-C1060_1160MN-A-R0	Low Pass Filter	Connectorized	50Ohm	200MHz	0.5dB	15dB	30dB min @ 2000 ~ 6000MHz	82.9 X 89.1 X 18.8mm	pdf
1200	1200MHz	MLP-C1200_600MS-A-R0	Low Pass Filter	Connectorized	50Ohm	600MHz	0.5dB	17dB	10dB min @ 1800MHz 20dB min @ 2000 ~ 5000MHz	161.0 X 24.0 X 21.0mm	pdf
1250	1250MHz	MLP-C1250_2000MN-A-R0	Low Pass Filter	Connectorized	50Ohm	2000MHz	0.5dB	18dB	45dB min @ 2400 ~ 6000MHz	157.0 X 56.2 X 23.0mm	pdf
1250	1250MHz	MLP-C1250_2500MS-A	Low Pass Filter	Connectorized	50Ohm	2499.5MHz	0.4dB	18dB	60dB min @ 4800 ~ 6000MHz 80dB min @ 6300 ~ 8000MHz	90.932 X 29.464 X 15.494mm	pdf
1500	1500MHz	MLP-C1500_3000MN-A-R0	Low Pass Filter	Connectorized	50Ohm	3000MHz	0.5dB	15dB	60dB min @ 4900 ~ 7500MHz	86.0 X 26.0 X 26.0mm	pdf
1500	1500MHz	MLP-C1500-3000ML-A	Low Pass Filter	BEAD	50Ohm	3000MHz	1.5dB	14dB	40dB min @ 3400MHz	66.0 X 30.0 X 12.5mm	pdf
2180	2180MHz / 2320MHz	MDP-C2180C2320_20MT-B	Band Pass Filter	Connectorized	50Ohm	20MHz	0.8dB	15dB	40dB min @ Other Ports	65.0 X 46.0 X 40.0mm	pdf
2530	2530MHz / 2650MHz	MDP-C2530-C2650_20MN-A-Sample data	Duplexer	Connectorized	50Ohm	20MHz	1.0dB	15dB	55dB min @ DC ~ 2170MHz 55dB min @ 2620 ~ 2690MHz / 55dB min @ DC ~ 2570MHz 55dB min @ 3300 ~ 3800MHz	120.0 X 72.0 X 26.0mm	pdf
2535	2535MHz / 2655MHz	MDP-C2535-2655BP70MA	Duplexer	Connectorized	50Ohm	70MHz	1.5dB	20dB	80dB min @ Other Ports	90.0 X 90.0 X 30.0mm	pdf
2535	2535MHz / 2655MHz	MDP-C2535-C2655_70MN-A	Duplexer	Connectorized	50Ohm	70MHz	1.0dB	15dB	55dB min @ DC ~ 2170MHz 55dB min @ 2620 ~ 2690MHz / 55dB min @ DC ~ 2570MHz 55dB min @ 3300 ~ 3800MHz	120.0 X 92.0 X 26.0mm	pdf
2535	2535MHz / 2655MHz	MDP-C2535-C2655_70MN-B-R0	Duplexer	Connectorized	50Ohm	70MHz	1.8dB	18dB	75dB min @ 2620 ~ 2690MHz / 75dB min @ 2500 ~ 2570MHz	105.0 X 50.0 X 30.0mm	pdf
4460	4460MHz / 4940MHz	MDP-C4460-4940BP120M	Duplexer	Connectorized	50Ohm	120MHz	2.7dB	15dB	80dB min @ 4330MHz 80dB min @ 4590 ~ 4830MHz 80dB min @ 5090MHz / 70dB min @ 700 ~ 1100MHz 70dB min @ 2700 ~ 3100MHz	164.0 X 98.0 X 20.0mm	pdf
14125	14125MHz / 11725MHz	MDP-C14125-C11725_750MS_2050MS-A	Duplexer	Connectorized	50Ohm	750MHz / 2050MHz	1.5dB	20dB	65dB min @ Other Ports	66.0 X 28.0 X 13.0mm	pdf
14125	14125MHz / 11725MHz	MDP-C14125-C11725_750MS_2050MS-B	Duplexer	Waveguide	50Ohm	750MHz / 2050MHz	0.4dB	21dB	65dB min @ Other Ports	159.99 X 107.98 X 38.1mm	pdf
902	902.5MHz / 947.5MHz	MDPX-C902.5-947.5BP25M	Duplexer	Connectorized	50Ohm	25MHz	1.0dB	15dB	40dB min @ 935 ~ 960MHz 40dB min @ 890 ~ 915MHz	106.0 X 113.5 X 77mm	pdf
1747	1747.5MHz / 1842.5MHz	MDPX-C1747.5-1842.5BP75M	Duplexer	Connectorized	50Ohm	75MHz	1.0dB	15dB	40dB min @ 1805 ~ 1880MHz / 40dB min @ 1710 ~ 1785MHz	118.0 X 142.0 X 43.0mm	pdf
4488	4488MHz / 4737MHz	MDPX-C4488-4737BP168-42M	Duplexer	Connectorized	50Ohm	42MHz	1.5dB	16dB	80dBc min@ DC ~ 4150MHz 70dBc min @ 4700 ~ 4800MHz 50dBc min @ 5200 ~ 9500MHz 40dBc min @ 13000 ~ 14000MHz / 80dBc min @ DC ~ 4625MHz 80dBc min @ 4800 ~ 8500MHz 50dBc min @ 9000 ~ 10000MHz 30dBc min @ 14000 ~ 14500MHz	140.0 X 80.0 X 27.0mm	pdf
10100	10100MHz / 10650MHz	MDPX-D10.3-10.7-S	Diplexer	Connectorized	50Ohm	400MHz / 100MHz	1.0dB	15dB	40dB min @ 10600 ~ 10700MHz / 40dB min @ 9900 ~ 10300MHz	1.0 X 2.0 X 3.0inch	pdf
4850	4850MHz	MHP-C4.85-4.3GB-A-R3	High Pass Filter	Connectorized	50Ohm	4300MHz	1.5dB	10dB	55dB min @ 2070 ~ 2130MHz	47.0 X 279.0 X 37.0mm	pdf
2400	2400MHz	MHP-C2400_3600MS-A-R0	High Pass Filter	Connectorized	50Ohm	3600MHz	0.5dB	15dDB	45dB min @ 1 ~ 1565MHz 60dB min @ 1565 ~ 1585MHz	100.0 X 45.0 X 30.0mm	pdf
380	380MHz	MLP-30-730_700MT-A	Low Pass Filter	Connectorized	50Ohm	700MHz	1.0dB	18dB	40dB min @ 1050MHz 60dB min @ 1400MHz 50dB min @ 3000MHz	27.0 X 230.0 X 24.5mm	pdf
2400	2400MHz	MLP-C2.4G_4.8GS-A	Low Pass Filter	Connectorized	50Ohm	4800MHz	2.0dB	12dB	40dB min @ 5150 ~ 6000MHz	150.0 X 80.0 X 28.0mm	pdf
4000	4000MHz	MLP-C4_8GS-A-R0	Low Pass Filter	Connectorized	50Ohm	8000MHz	1.0dB	10dB	50dB min @ 8950 ~ 12000MHz	16.0 X 108.0 X 14.0mm	pdf
7600	7600MHz	MLP-C7.6_1.8GS-A-R1	Low Pass Filter	BEAD	50Ohm	1800MHz	0.3dB	15.04dB	45dBc min @ 13400 ~ 17000MHz 30dBc min @ 20100 ~ 25500MHz 30dBc min @ 26800 ~ 34000MHz 10dBc min @ 33500 ~ 42500MHz	30.0 X 14.0 X 8.0mm	pdf
19	19MHz	MLP-C19_38MN-A-R0	Low Pass Filter	Connectorized	50Ohm	38MHz	0.3dB	16dB	55dBc min @ 76MHz 55dBc min @ 114MHz	300.0 X 100.0 X 55.0mm	pdf
36	36MHz	MLP-C36_72MN-A-R0	Low Pass Filter	Connectorized	50Ohm	72MHz	0.3dB	16dB	55dBc min @ 144MHz 55dBc min @ 216MHz	250.0 X 95.0 X 50.0mm	pdf
1700	1700MHz / 2490MHz	MDP1700-2490-200P	Diplexer	Connectorized	50Ohm	500MHz / 200MHz	0.3dB	20dB	60dB min @ Other Ports	150.0 X 141.0 X 32.0mm	pdf
2045	2045MHz / 1795MHz	MDP1920-1710-170P	Diplexer	Connectorized	50Ohm	250MHz / 170MHz	0.3dB	20dB	60dB min @ Other Ports	190.0 X 170.0 X 34.0mm	pdf
1950	1950MHz / 2140MHz	MDP-1950-2140_60MN	Duplexer	Connectorized	50Ohm	60MHz	0.7dB	18dB	80dB min @ Other Ports	94.0 X 94.0 X 30.0mm	pdf
10800	10800MHz	MDP-108000BP200DB_R12	Diplexer	Connectorized	50Ohm	600MHz	1.5dB	15dB	80dB min @ Other Ports	113.0 X 28.0 X 13.0mm	pdf
10800	10800MHz	MDP-108000BP200DS	Diplexer	Connectorized	50Ohm	600MHz	1.5dB	15dB	80dB min @ Other Ports	113.0 X 28.0 X 13.0mm	pdf
1625	1625MHz / 2300MHz	MDP-B1625-2300-BP450-100M_R1	Duplexer	Connectorized	50Ohm	450MHz	0.4dB	16dB	50dB min @ DC ~ 1200MHz 50dB min @ 2025 ~ 2120MHz 50dB min @ 2700 ~ 5000MHz	80.0 X 160.0 X 28.0mm	pdf
725	725.5MHz / 780.5MHz	MDP-C725.5_C780.5_45M-BAND 28	Duplexer	Connectorized	50Ohm	45MHz	1.9dB	15dB	82dB min @ 758 ~ 803MHz / 82dB min @ 703 ~ 748MHz	159.0 X 134.0 X 46.5mm	pdf
782	782MHz / 751MHz	MDP-C782-751BP10MA	Duplexer	Connectorized	50Ohm	10MHz	1.5dB	20dB	80dB min @ Other Ports	90.0 X 90.0 X 60.0mm	pdf
822	822.5MHz / 867.5MHz	MDP-C822.5-C867.5_5MN-A-R1	Duplexer	Connectorized	50Ohm	5MHz	1.0dB	15dB	65dB min @ 10 ~ 750MHz 65dB min @ 865 ~ 3000MHz / 65dB min @ 10 ~ 825MHz 65dB min @ 900 ~ 3000MHz	144.0 X 90.0 X 34.0mm	pdf
836	836.5MHz / 881.5MHz	MDP-C836-881BP75M	Duplexer	Connectorized	50Ohm	25MHz	1.5dB	15dB	50dB min @ Other Ports	94.0 X 94.0 X 48.0mm	pdf
910	910.5MHz / 931MHz	MDP-C910.5-C931_29M_3MN-A-R0	Duplexer	Connectorized	50Ohm	29MHz / 3Mz	1.5dB	18dB	50dB min @ 100 ~ 850MHz 60dB min @ 930 ~ 940MHz 40dB min @ 940 ~ 3000MHz / 60dB min @ 100 ~ 925MHz 35dB min @ 820 ~ 1000MHz 40dB min @ 1000 ~ 3000MHz	140.0 X 140.0 X 60.0mm	pdf
1030	1030MHz / 1090MHz	MDP-C1030-1090BP8-10M_R2	Diplexer	Connectorized	50Ohm	8MHz / 10MHz	2.5dB	20dB	35dB min @ 1001MHz 35dB min @ 1059MHz 35dB min @ 1120MHz	95.0 X 77.0 X 23.0mm	pdf
1210	1210MHz / 1585MHz	MDP-C1210-C1585_110M_70MN-A	Duplexer	Connectorized	50Ohm	110MHz / 70MHz	0.5dB	18dB	20dB min @ 1050MHz 20dB min @ 1350MHz / 20dB min @ 1450MHz 20dB min @ 1700MHz	100.0 X 78.0 X 36.0mm	pdf
1227	1227MHz / 1587MHz	MDP-C1227_C1587_44MS-A-R1	Band Pass Filter	Connectorized	50Ohm	3dB / 44MHz	1.0dB	15dB	-	79.0 X 41.0 X 19.0mm	pdf
1732	1732.5MHz / 2132.5MHz	MDP-C1732.5_C2132.5_45M-BAND 4	Duplexer	Connectorized	50Ohm	45MHz	2.1dB	15dB	82dB min @ 2110 ~ 2155MHz / 82dB min @ 1710 ~ 1755MHz	100.0 X 40.0 X 21.5mm	pdf
1747	1747.5MHz / 1842.5MHz	MDP-C1747.5_C1842.5_75M-BAND 3	Duplexer	Connectorized	50Ohm	75MHz	2.1dB	15dB	82dB min @ 1805 ~ 1880MHz / 82dB min @ 1710 ~ 1785MHz	114.0 X 97.0 X 28.5mm	pdf
1747	1747.5MHz / 1842.5MHz	MDP-C1747.5-C1842.5_75MN-B-R0	Duplexer	Connectorized	50Ohm	75MHz	1.0dB	18dB	70dB min @ DC ~ 1600MHz 80dB min @ 1805 ~ 1880MHz 70dB min @ 2100 ~ 4000MHz / 70dB min @ DC ~ 1600MHz 80dB min @ 1710 ~ 1785MHz 70dB min @ 2100 ~ 4000MHz	135.0 X 112.0 X 34.0mm	pdf
1940	1940MHz / 2140MHz	MDP-C1940-C2140_80MS-A-R0	Duplexer	Connectorized	50Ohm	80MHz	1.3dB	16dB	40dB min @ DC ~ 1880MHz 60dB min @ 2100 ~ 2180MHz / 40dB min @ DC ~ 1880MHz 60dB min @ 1900 ~ 1980MHz 40dB min @ 2300 ~ 3000MHz	144.0 X 90.0 X 34.0mm	pdf
1950	1950MHz / 2140MHz	MDP-C1950-C2140_60MD-A	Duplexer	Connectorized	50Ohm	60MHz	1.0dB / 0.6dB	20dB	60dB min @ 400 ~ 1675MHz 80dB min @ 1695 ~ 1780MHz 70dB min @ 1800 ~ 1910MHz 70dB min @ 2110 ~ 2170MHz 60dB min @ 2200 ~ 6000MHz / 60dB min @ 400 ~ 1675MHz 80dB min @ 1695 ~ 1780MHz 60dB min @ 1800 ~ 1880MHz 70dB min @ 1880 ~ 2025MHz 70dB min @ 2200 ~ 2430MHz 60dB min @ 2430 ~ 6000MHz	545.0 X 215.0 X 37.0mm	pdf
1950	1950MHz / 2140MHz	MDP-C1950-C2140_60MN-B-R0	Duplexer	Connectorized	50Ohm	60MHz	0.5dB	20dB	70dB min @ DC ~ 1800MHz 80dB min @ 2100 ~ 2170MHz 70dB min @ 3000 ~ 6000MHz / 70dB min @ DC ~ 1800MHz 80dB min @ 1920 ~ 1980MHz 70dB min @ 3000 ~ 6000MHz	135.0 X 112.0 X 32.0mm	pdf
2072	2072.5MHz / 2247.5MHz	MDI-C2072.5-C2247.5_95M-95MN-A-R0	Diplexer	Connectorized	50Ohm	95MHz	0.75dB	16dB	40dB min @ 2168MHz 40dB min @ 2306MHz 90dB min @ 3000 ~ 6000MHz	200.0 X 168.0 X 36.0mm	pdf
2300	2300MHz / 4695MHz	MDI-C2300-C4695_200-590MS-A-1	Diplexer	Connectorized	50Ohm	200MHz / 590MHz	0.5dB	15dB	120dB min @ 4400 ~ 4990MHz 50dB min @ 4990 ~ 7000MHz / 50dB min @ DC ~ 2200MHz 115dB min @ 2200 ~ 2400MHz	110.0 X 35.0 X 30.0mm	pdf
2450	2450MHz / 4800MHz	MDI-C2450-C4800_900M-2400MM-A-R0	Diplexer	BEAD	50Ohm	900MHz / 2400MHz	1.5dB	15dB	15dB min @ Other Ports	83.0 X 150.0 X 40.0mm	pdf
2575	2575MHz / 2685MHz	MDI-C2575-2685-30MS-A-R0	Diplexer	Connectorized	50Ohm	30MHz	0.6dB	15dB	75dB min @ Other Ports	130.0 X 40.0 X 21.0mm	pdf
3550	3550MHz / 2595MHz	MDI-C3550-C2595_500M-50MS-A	Diplexer	Connectorized	50Ohm	500MHz / 50MHz	0.9dB	18dB	55dB min @ 700 ~ 960MHz 55dB min @ 1710 ~ 1990MHz 55dB min @ 2110 ~ 2200MHz 55dB min @ 2300 ~ 2400MHz 55dB min @ 2496 ~ 2690MHz / 55dB min@ 1710 ~ 1990MHz 55dB min @ 2110 ~ 2495MHz 20dB min @ 2415 ~ 2495MHz 20dB min @ 2630 ~ 2690MHz 55dB min @ 5725 ~ 5825MHz	72.0 X 76.0 X 23.0mm	pdf
3750	3750MHz / 1345MHz	MDI-C3750-C1345_900M-2690MS-A-R0	Diplexer	Connectorized	50Ohm	900MHz / 2690MHz	0.6dB	15dB	55dB min @ DC ~ 3000MHz 55dB min @ 4500MHz / 55dB min @ 3300 ~ 4200MHz	91.0 X 87.0 X 19.0mm	pdf
3900	3900MHz / 1345MHz	MDI-C3900-C1345_600M-2690MS-A-R0	Diplexer	Connectorized	50Ohm	600MHz / 2690MHz	0.6dB	18dB	55dB min @ 3300MHz 55dB min @ 4500MHz / 55dB min @ 3600 ~ 4200MHz	91.0 X 87.0 X 19.0mm	pdf
4460	4460MHz / 4940MHz	MDI-C4460-C4940_120MS-A	Diplexer	Connectorized	50Ohm	120MHz	1.0dB	18dB	50dB min @ DC ~ 4280MHz 50dB min @ 4640 ~ 6000MHz / 50dB min @ DC ~ 4760MHz 50dB min @ 5120 ~ 6000MHz	137.0 X 42.0 X 14.0mm	pdf
4500	4500MHz / 5000MHz	MDI-C4500-C5000_200M-200MS-A-R0	Diplexer	Connectorized	50Ohm	200MHz	0.7dB	14dB	65dB min @ 4200MHz 65dB min @ 4800MHz / 65dB min @ 4700MHz 65dB min @ 5300MHz	80.0 X 75.0 X 17.0mm	pdf
4710	4710MHz	MDI-C4710_120MS-A-R0	Diplexer	Connectorized	50Ohm	120MHz	0.6dB	20dB	80dB min @ Other Ports	130.0 X 150.0 X 18.0mm	pdf
10600	10600MHz / 11150MHz	MDI-C10600_11150-200M_500MS-A-R0	Diplexer	Connectorized	50Ohm	200MHz / 500MHz	1.5dB	15dB	80dB min @ Other Ports	113.0 X 28.0 X 13.0mm	pdf
10650	10650MHz / 10050MHz	MDI-D10.65G-U10.05GS-A-R6	Diplexer	Connectorized	50Ohm	700MHz / 100MHz	1.2dB	15dB	60dB min @ 5000 ~ 8000MHz 80dB min @ 6000 ~ 9200MHz 70dB min @ 9200 ~ 10100MHz 50dB min @ 10200MHz 45dB min @ 11400 ~ 12000MHz 70dB min @ 12000 ~ 16000MHz / 70dB min @ 6000 ~ 9200MHz 50dB min @ 10200MHz 70dB min @ 10300 ~ 11000MHz 70dB min @ 12000 ~ 16000MHz	139.0 X 80.0 X 20.0mm	pdf
10950	10950MHz / 10550MHz	MDI-D10.95G-U10.55GS-A-R0	Diplexer	Connectorized	50Ohm	300MHz / 100MHz	1.5dB	15dB	50dB min @ 100MHz 50dB min @ 10700MHz / 50dB min @ 10700MHz	120.0 X 45.0 X 17.0mm	pdf
788	788.5MHz / 2195MHz	MDP617-1700-990P	Diplexer	Connectorized	50Ohm	343MHz / 990MHz	0.3dB	20dB	60dB min @ Other Ports	190.0 X 90.0 X 48.0mm	pdf
1030	1030MHz / 1090MHz	MDP-1030-1090M_10MN-A-R1	Diplexer	Connectorized	50Ohm	24MHz	1.4dB	20dB	40dB min @ 980 ~ 1030MHz 40dB min @ 1030 ~ 1080MHz 60dB min @ 950 ~ 1030MHz 60dB min @ 1030 ~ 1110MHz / 40dB min @ 1040 ~ 1090MHz 40dB min @ 1090 ~ 1140MHz 60dB min @ 1010 ~ 1090MHz 60dB min @ 1090 ~ 1170MHz	142.0 X 150.0 X 40.0mm	pdf
1030	1030MHz / 1090MHz	MDP-1030-1090M_10MN-B-R1	Diplexer	Connectorized	50Ohm	24MHz	1.4dB	20dB	40dB min @ 980 ~ 1030MHz 40dB min @ 1030 ~ 1080MHz 60dB min @ 950 ~ 1030MHz 60dB min @ 1030 ~ 1110MHz / 40dB min @ 1040 ~ 1090MHz 40dB min @ 1090 ~ 1140MHz 60dB min @ 1010 ~ 1090MHz 60dB min @ 1090 ~ 1170MHz	142.0 X 150.0 X 40.0mm	pdf
1030	1030MHz / 1090MHz	MDP-1030-1090M_10MN-C-R1	Diplexer	Connectorized	50Ohm	24MHz	1.4dB	20dB	40dB min @ 980 ~ 1030MHz 40dB min @ 1030 ~ 1080MHz 60dB min @ 950 ~ 1030MHz 60dB min @ 1030 ~ 1110MHz / 40dB min @ 1040 ~ 1090MHz 40dB min @ 1090 ~ 1140MHz 60dB min @ 1010 ~ 1090MHz 60dB min @ 1090 ~ 1170MHz	171.0 X 182.0 X 40.0mm	pdf
1030	1030MHz / 1090MHz	MDP-1030-1090M_10MN-D	Diplexer	Connectorized	50Ohm	24MHz	1.4dB	20dB	40dB min @ 980 ~ 1030MHz 40dB min @ 1030 ~ 1080MHz 60dB min @ 950 ~ 1030MHz 60dB min @ 1030 ~ 1110MHz / 40dB min @ 1040 ~ 1090MHz 40dB min @ 1090 ~ 1140MHz 60dB min @ 1010 ~ 1090MHz 60dB min @ 1090 ~ 1170MHz	142.0 X 150.0 X 40.0mm	pdf
1030	1030MHz	MDP-1030BP8M	Diplexer	BEAD	50Ohm	8MHz	2.5dB	14dB	70dB min @ 1 ~ 1065MHz 70dB min @ 1115 ~ 10000MHz	132.0 X 150.0 X 33.0mm	pdf
1090	1090MHz	MDP-1090BP8M	Diplexer	BEAD	50Ohm	8MHz	2.5dB	14dB	70dB min @ 1 ~ 960MHz 70dB min @ 1270 ~ 10000MHz	132.0 X 150.0 X 33.0mm	pdf
402	402.5MHz / 419MHz	MDI-C402.5-C419_2M-2MN-C-R1	Duplexer	Connectorized	50Ohm	2MHz	1.15dB	17dB	55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 396MHz 80dB min @ 418 ~ 420MHz 85dB min @ 420 ~ 450MHz 85dB min @ 450 ~ 1000MHz / 55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 400MHz 80dB min @ 402 ~ 412.5MHz 75dB min @ 426 ~ 450MHz 85dB min @ 450 ~ 1000MHz	310.0 X 235.0 X 67.0mm	pdf
403	403MHz / 419MHz	MDI-C403-C419_2M-2MN-B-R0	Diplexer	Connectorized	50Ohm	2MHz	1.85dB	17dB	55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 396MHz 80dB min @ 418 ~ 420MHz 85dB min @ 420 ~ 450MHz 85dB min @ 450 ~ 1000MHz / 55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 400MHz 80dB min @ 402 ~ 412.5MHz 75dB min @ 426 ~ 450MHz 85dB min @ 450 ~ 1000MHz	150.0 X 150.0 X 50.0mm	pdf
718	718MHz / 773MHz	MDI-C718-C773_30M-30MN-A-R1	Diplexer	Connectorized	50Ohm	30MHz	1.3dB	16dB	60dB min @ DC ~ 733MHz 60dB min @ 825 ~ 3000MHz / 60dB min @ DC ~ 680MHz 60dB min @ 750 ~ 3000MHz	86.3 X 73.6 X 50.0mm	pdf
718	718MHz / 773MHz	MDI-C718-C773_30M-30MS-A-R1	Diplexer	Connectorized	50Ohm	30MHz	1.3dB	16dB	60dB min @ DC ~ 733MHz 60dB min @ 825 ~ 3000MHz / 60dB min @ DC ~ 680MHz 60dB min @ 750 ~ 3000MHz	86.3 X 73.6 X 50.0mm	pdf
725	725.5MHz / 780.5MHz	MDI-C725.5-C780.5_45_45MN-A-TP1	Diplexer	Connectorized	50Ohm	45MHz	0.6dB	15dB	35dBc min @ Other Ports	95.0 X 93.0 X 46.0mm	pdf
725	725.5MHz / 780.5MHz	MDI-C725.5-C780.5_45_45MN-A-TP2	Diplexer	Connectorized	50Ohm	45MHz	0.6dB	15dB	35dBc min @ Other Ports	95.0 X 93.0 X 46.0mm	pdf
766	766.5MHz / 796.5MHz	MDI-C766.5-C796.5_17M-17MN-A-R0	Diplexer	Connectorized	50Ohm	17MHz	2.0dB	17dB	80dB min @ Other Ports	141.0 X 150.0 X 57.0mm	pdf
810	810MHz / 855.5MHz	MDI-C810-C855.5_9M-9MN-A-R0	Diplexer	Connectorized	50Ohm	9MHz	2.0dB	17dB	80dB min @ Other Ports	141.0 X 132.0 X 57.0mm	pdf
897	897.5MHz / 942.5MHz	MDI-C897.5-C942.5_35M-35MD-A-R0	Diplexer	Connectorized	50Ohm	35MHz	0.9dB	15dB	75dB min @ Other Ports	229.0 X 260.0 X 81.0mm	pdf
1030	1030MHz / 1090MHz	MDI-C1030-C1090_15MS-A-R1	Diplexer	Connectorized	50Ohm	15MHz	1.2dB	15dB	65dBc min @ 1090MHz / 63dB min @ 1030MHz	114.3 X 82.55 X 50.8mm	pdf
1233	1233MHz / 1588MHz	MDI-C1233-C1588_134M-64MN-A-R1	Diplexer	Connectorized	50Ohm	134MHz / 64MHz	0.6dB	22dB	70dB min @ DC ~ 1000MHz 60dB min @ 1000 ~ 1100MHz 55dB min @ 1100 ~ 1129MHz 40dB min @ 1131 ~ 1148MHz 40dB min @ 1316 ~ 1335MHz 55dB min @ 1335 ~ 1366MHz 65dB min @ 1366 ~ 1472MHz 55dB min @ 1472 ~ 1512MHz 40dB min @ 1512 ~ 1536MHz 40dB min @ 1631 ~ 1655MHz 55dB min @ 1655 ~ 1695MHz 40dB min @ 1695 ~ 20000MHz	279.0 X 350.0 X 60.0mm	pdf
1238	1238MHz / 1580MHz	MDI-C1238-C1580_46M-60MN-A-R0	Diplexer	Connectorized	50Ohm	46MHz / 60MHz	0.9dB	17dB	60dB min @ DC ~ 1151MHz 35dB min @ 1151 ~ 1182MHz 30dB min @ 1182 ~ 1200MHz 30dB min @ 1270 ~ 1290MHz 35dB min @ 1290 ~ 1320MHz / 60dB min @ DC ~ 1261MHz 60dB min @ 1261 ~ 1481MHz 60dB min @ 1481 ~ 1521MHz 60dB min @ 1521 ~ 1545MHz 60dB min @ 1630 ~ 1695MHz	7.68 X 7.68 X 2.6inch	pdf
1405	1405MHz / 2445MHz	MDI-C1405-C2445_510M-90MN-A-R0	Diplexer	Connectorized	50Ohm	510MHz / 90MHz	0.55dB	18dB	70dB min @ DC ~ 1000MHz 60dB min @ 1000 ~ 1100MHz 60dB min @ 1700 ~ 1800MHz 70dB min @ 1800 ~ 3000MHz 30dB min @ 3000 ~ 6000MHz / 80dB min @ DC ~ 2280MHz 70dB min @ 2280 ~ 2350MHz 70dB min @ 2540 ~ 2610MHz 80dB min @ 2610 ~ 3000MHz 30dB min @ 3000 ~ 6000MHz	320.0 X 100.0 X 60.0mm	pdf
1747	1747.5MHz / 1842.5MHz	MDI-C1747.5-C1842.5_75_75MN-A	Diplexer	Connectorized	50Ohm	75MHz	0.6dB	15dB	35dBc min @ Other Ports	85.0 X 80.0 X 30.0mm	pdf
1747	1747.5MHz / 1842.5MHz	MDI-C1747.5-C1842.5_75_75MN-A-TP1	Diplexer	Connectorized	50Ohm	75MHz	0.6dB	15dB	35dBc min @ Other Ports	85.0 X 80.0 X 33.0mm	pdf
1747	1747.5MHz / 1842.5MHz	MDI-C1747.5-C1842.5_75_75MN-A-TP2	Diplexer	Connectorized	50Ohm	75MHz	0.6dB	15dB	35dBc min @ Other Ports	85.0 X 80.0 X 33.0mm	pdf
1950	1950MHz / 2140MHz	MDI-C1950-C2140_60M-60MD-A-R0	Diplexer	Connectorized	50Ohm	60MHz	0.3dB	15dB	90dB min @ Other Ports	229.0 X 167.6 X 46.0mm	pdf
1950	1950MHz / 2140MHz	MDI-C1950-C2140_60M-60MN-A-R0	Diplexer	Connectorized	50Ohm	60MHz	0.3dB	15dB	90dB min @ Other Ports	229.0 X 173.4 X 46.0mm	pdf
2045	2045MHz / 2185MHz	MDI-C2045-C2185_130M-30MS-A-R0	Diplexer	Connectorized	50Ohm	130MHz / 30MHz	2.0dB	16dB	80dBC min @ DC ~ 1730MHz 110dBc min @ 2170 ~ 2250MHz 70dBc min @ 2500 ~ 6500MHz 40dBc min @ 8500 ~ 14000MHz / 80dBc min @ 1850MHz 110dBc min @ 1900 ~ 2110MHz 70dBc min @ 2250 ~ 4400MHz 80dBc min @ 4400 ~ 8500MHz 40dBc min @ 8500 ~ 14000MHz	95.0 X 88.0 X 24.0mm	pdf
2070	2070MHz / 2250MHz	MDI-C2070-C2250_100M-A-R0	Diplexer	Connectorized	50Ohm	100MHz	0.6dB	18dB	80dB min @ Other Ports	103.0 X 97.0 X 37.0mm	pdf
11850	11850MHz	MBP-C11850BP2300M	Band Pass Filter	Connectorized	50Ohm	2300MHz	1.0dB	15dB	50dBc min @ 7500MHz 50dBc min @ 17000MHz	50.0 X 18.0 X 11.7mm	pdf
11950	11950MHz	MBP-C11950BP500S	Band Pass Filter	Connectorized	50Ohm	500MHz	1.0dB	15dB	40dB min @ 11200MHz 40dB min @ 12700MHz	37.0 X 20.0 X12.5mm	pdf
12750	12750MHz	MBP-C12750_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB min @ DC ~ 11500MHz 60dB min @ 14000 ~ 18000MHz	38.0 X 27.0 X 10.0mm	pdf
13000	13000MHz	MBP-C13000_2000MH-A-R0	Band Pass Filter	BEAD	50Ohm	2000MHz	2.0dB	15dB	60dB min @ DC ~ 10800MHz 60dB min @ 15400 ~ 28000MHz	35.0 X 10.0 X 5.0mm	pdf
13000	13000MHz	MBP-C13000_2000MS	Band Pass Filter	Connectorized	50Ohm	2000MHz	2.0dB	15dB	45dBc min @ 11300MHz 45dBc min @ 14700MHz	68.0 X 20.0 X 20.5mm	pdf
14250	14250MHz	MBP-C14250_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB min @ DC ~ 13000MHz 60dB min @ 15500 ~ 18000MHz	38.0 X 27.0 X 10.0mm	pdf
14400	14400MHz	MBP-C14400_50MS-A-R0	Band Pass Filter	Connectorized	50Ohm	50MHz	4.0dB	15dB	50dB min @ 100 ~ 14300MHz 50dB min @ 14500 ~ 20000MHz	61.0 X 32.0 X 10.0mm	pdf
15000	15000MHz	MBP-C15000_2000MH-A-R0	Band Pass Filter	BEAD	50Ohm	2000MHz	2.0dB	15dB	60dB min @ DC ~ 12600MHz 60dB min @ 17600 ~ 32000MHz	35.0 X 10.0 X 5.0mm	pdf
15750	15750MHz	MBP-C15750_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB @ DC ~ 14500MHz 60dB @ 17000 ~ 20000MHz	38.0 X 27.0 X 10.0mm	pdf
16500	16500MHz	MBP-C16500_800MS-A-R0	Band Pass Filter	Connectorized	50Ohm	800MHz	3.0dB	15dB	70dBc min @ 15800MHz 35dBc min @ 16000MHz 35dBc min @ 17000MHz 70dBc min @ 17200MHz	82.3 X 26.0 X 10.0mm	pdf
17000	17000MHz	MBP-C17000_2000MH-A-R0	Band Pass Filter	BEAD	50Ohm	2000Mhz	2.0dB	15dB	60dB min @ dC ~ 14400MHz 60dB min @ 19800 ~ 36000MHz	35.0 X 10.0 X 5.0mm	pdf
17250	17250MHz	MBP-C17250_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB min @ DC ~ 16000MHz 60dB min @ 18500 ~ 21000MHz	38.0 X 27.0 X 10.0mm	pdf
18300	18300MHz	MBP-C18300_50MS-A-R0	Band Pass Filter	Connectorized	50Ohm	50MHz	4.0dB	15dB	50dB min @ 100 ~ 18200MHz 50dB min @ 18400 ~ 20000MHz	61.0 X 32.0 X 10.0mm	pdf
20700	20700MHz	MBP-C20700BP1000S	Band Pass Filter	Connectorized	50Ohm	1000MHz	1.0dB	15dB	40dB min @ 19200MHz 40dB min @ 22200MHz	37.0 X 20.0 X12.5mm	pdf
26250	26250MHz	MBP-C26250_1.5GS-A-R0	Band Pass Filter	Connectorized	50Ohm	1500MHz	1.0dB	15dB	60dBc min @ 24000MHz 60dBc min @ 28000MHz	90.0 X 15.0 X 13.5mm	pdf
30500	30500MHz	MBP-C30500BP2400M_R1	Band Pass Filter	Connectorized	50Ohm	2400MHz	2.0dB	15dB	50dB min @ 20000 ~ 25000MHz 30dB min @ 28000MHz 30dB min @ 32500MHz 50dB min @ 36000 ~ 40000MHz	60.0 X 15.0 X 12.0mm	pdf
725	725.5MHz / 780.5MHz	MDI-725.5-780.5_45M_A	Diplexer	SMD	50Ohm	45MHz	1.0dB	-	60dB min @ Other Ports	128.0 X 120.0 X 42.0mm	pdf
1747	1747.5MHz / 1842.5MHz	MDI-1747.5-1842.5_75M_A	Diplexer	SMD	50Ohm	75MHz	1.0dB	-	60dB min @ Other Ports	71.0 X 76.0 X 29.0mm	pdf
300	300MHz / 1100MHz	MDI-C300-C1100_400M-280MN-A-R2	Diplexer	Connectorized	50Ohm	400MHz / 280MHz	0.8dB	15dB	80dB min @ Other Ports	283.0 X 130.0 X 46.0mm	pdf
402	402.5MHz / 419MHz	MDI-C402.5-C419_2M-2MN-A-R1	Diplexer	Connectorized	50Ohm	2MHz	1.3dB	17dB	55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 396MHz 80dB min @ 418 ~ 420MHz 85dB min @ 420 ~ 450MHz 85dB min @ 450 ~ 1000MHz / 55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 400MHz 80dB min @ 402 ~ 412.5MHz 75dB min @ 426 ~ 450MHz 85dB min @ 450 ~ 1000MHz	270.0 X 215.0 X 65.0mm	pdf
8500	8500MHz	MBP-C8500_700MS-A-R0	Band Pass Filter	Connectorized	50Ohm	700MHz	3.0dB	15dB	80dBc min @ 7850MHz 40dBc min @ 8050MHz 40dBc min @ 8950MHz 80dBc min @ 9150MHz	75.0 X 115.0 X 36.0mm	pdf
8750	8750MHz	MBP-C8750_250MH-A-R0	Band Pass Filter	BEAD	50Ohm	250MHz	2.1dB	21dB	40dB min @ 8455MHz 45dB min @ 9045MHz	43.0 X 16.0 X 13.0mm	pdf
8750	8750MHz	MBP-C8750BP500B	Band Pass Filter	BEAD	50Ohm	500MHz	4.0dB	14dB	30dBc min @ 2000 ~ 8000MHz 30dBc min @ 9500~ 18000MHz	54.0 X 16.0 X 11.0mm	pdf
9000	9000MHz	MBP-C9000_6000MS-A	Band Pass Filter	Connectorized	50Ohm	6000MHz	1.5dB	15dB	50dBc min @ DC ~ 4000MHz 50dBc min @ 14000 ~ 24000MHz	120.0 X 80.0 X 20.0mm	pdf
9050	9050MHz	MBP-C9050_300MB-A-R0	Band Pass Filter	BEAD	50Ohm	300MHz	2.0dB	12dB	70dB min @ 10 ~ 8400MHz 40dB min @ 9400 ~ 15000MHz	60.0 X 18.0 X 10.0mm	pdf
9300	9300MHz	MBP-C9300_400MH-A-R0	Band Pass Filter	BEAD	50Ohm	400MHz	2.0dB	15dB	20dBc min @ DC ~ 9000MHz 20dBc min @ 9600 ~ 15000MHz	40.0 X 15.0 X 11.0mm	pdf
9300	9300MHz	MBP-C9300_600MT-A-R1	Band Pass Filter	Connectorized	50Ohm	600MHz	0.3dB	15dB	55dBc min @ DC ~ 8500MHz	120.0 X 20.0 X 20.0mm	pdf
9500	9500MHz	MBP-C9500BP1240P	Band Pass Filter	BEAD	50Ohm	1240MHz	3.0dB	16dB	30dBc min @ 8380MHz 20dBc min @ 10400MHz	70.0 X 16.0 X 14.0mm	pdf
9600	9600MHz	MBP-C9600_60MS-A-R0	Band Pass Filter	Connectorized	50Ohm	60MHz	2.2dB	15dB	60dBc min @ 9000MHz 60dBc min @ 10200MHz	12.7 X 41.02 X 18.16mm	pdf
10000	10000MHz	MBP-C10000_1000MS	Band Pass Filter	Connectorized	50Ohm	1000MHz	0.5dB	18dB	50dB min @ 5900MHz 30dB min @ 7700MHz	44.0 X 14.0 X 14.5mm	pdf
10250	10250MHz	MBP-C10250_625MB-A-R0	Band Pass Filter	Connectorized	50Ohm	625MHz	1.5dB	14dB	60dB min @ DC ~ 9375MHz 60dB min @ 11125 ~ 12000MHz	41.61 X 13.97 X 6.35mm	pdf
10400	10400MHz	MBP-C10400_200MB-A-R0	Band Pass Filter	BEAD	50Ohm	200MHz	2.0dB	15dB	45dB min @ DC ~ 10200MHz 45dB min @ 10600 ~ 20000MHz	61.0 X 33.0X 12.0mm	pdf
10400	10400MHz	MBP-C10400_200MB-B-R0	Band Pass Filter	BEAD	50Ohm	200MHz	2.0dB	15dB	45dB min @ DC ~ 10000MHz 30dB min @ 10000 ~ 10200MHz 30dB min @ 10600 ~ 10800MHz 45dB min @ 10800 ~ 21000MHz	35.0 X 15.0 X 12.0mm	pdf
10600	10600MHz	MBP-C10600BP200M_R4	Band Pass Filter	BEAD	50Ohm	200MHz	5.0dB	12dB	30dBc min @ 10900 ~ 11100MHz 50dBc min @ 6500MHz	23.0 X 23.0 X 9.5mm	pdf
10800	10800MHz	MBP-C10800_200MS-A-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	3.5dB	15dB	40dB min @ 10600MHz 40dB min @ 11000MHz	48.0 X 22.0 X 11.0mm	pdf
11000	11000MHz	MBP-C11000_2000MH-A-R0	Band Pass Filter	BEAD	50Ohm	2000MHz	2.0dB	15dB	60dB min @ DC ~ 9000MHz 60dB min @ 13200 ~ 24000MHz	35.0 X 10.0 X 5.0mm	pdf
11000	11000MHz	MBP-C11000BP200M_R4	Band Pass Filter	BEAD	50Ohm	200MHz	5.0dB	15dB	35dB min @ 10500 ~ 10700MHz	23.0 X 23.0 X 9.5mm	pdf
11250	11250MHz	MBP-C11250_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB min @ DC ~ 10000MHz 60dB min @ 12500 ~ 18000MHz	38.0 X 27.0 X 10.0mm	pdf
11400	11400MHz	MBP-C11400_200MS-A-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	3.5dB	15dB	40dB min @ 11200MHz 40dB min @ 11600MHz	48.0 X 22.0 X 11.0mm	pdf
11725	11725MHz	MBP-C11725_2100MH-A-R0	Band Pass Filter	BEAD	50Ohm	2100MHz	1.0dB	11.7dB	63dBc min @ 9000MHz 49dBc min @ 14000MHz	36.0 X 12.0 X 6.0mm	pdf
6160	6160MHz	MBP-C6160_40MS-A-R0	Band Pass Filter	Connectorized	50Ohm	40MHz	5.0dB	14dB	40dB min @ DC ~ 6040MHz 40dB min @ 6280 ~ 11200MHz	62.0 X 40.0 X 16.0mm	pdf
6290	6290MHz	MBP-C6290BP380P	Band Pass Filter	BEAD	50Ohm	380MHz	3.0dB	16dB	30dBc min @ 5700MHz 30dBc min @ 6880MHz	45.0 X 16.0 X 18.0mm	pdf
6410	6410MHz	MBP-C6410_40MS-A-R0	Band Pass Filter	Connectorized	50Ohm	40MHz	5.0dB	14dB	40dB min @ DC ~ 6290MHz 40dB min @ 6530 ~ 11500MHz	62.0 X 40.0 X 16.0mm	pdf
6473	6473MHz	MBP-C6473BP105S	Band Pass Filter	Connectorized	50Ohm	105MHz	1.0dB	15dB	40dB min @ 6200MHz 40dB min @ 6700MHz	58.0 X 14.0 X 20.0mm	pdf
6610	6610MHz	MBP-C6610BP320P	Band Pass Filter	BEAD	50Ohm	320MHz	3.0dB	16dB	30dBc min @ 6050MHz 30dBc min @ 7170MHz	45.0 X 16.0 X 18.0mm	pdf
6750	6750MHz	MBP-C6750_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB min @ DC ~ 5500MHz 60dB min @ 8000 ~ 18000MHz	38.0 X 27.0 X 10.0mm	pdf
7250	7250MHz	MBP-C7250BP500B	Band Pass Filter	BEAD	50Ohm	500MHz	4.0dB	14dB	30dBc min @ 2000 ~ 6500MHz 30dBc min @ 8000 ~ 15000MHz	54.0 X 16.0 X 12.0mm	pdf
7500	7500MHz	MBP-C7500_500MF-A-R0	Band Pass Filter	Waveguide	50Ohm	500MHz	1.8dB	15dB	85dB min @ 7900 ~ 8400MHz	120.0 X 60.0 X 20.0mm	pdf
7450	7450MHz	MBP-C7540BP660P	Band Pass Filter	BEAD	50Ohm	660MHz	3.0dB	16dB	60dBc min @ 6400MHz 30dBc min @ 8375MHz	69.0 X 16.0 X 14.0mm	pdf
7600	7600MHz	MBP-C7600_1.8GS-A-R0	Band Pass Filter	Connectorized	50Ohm	1800MHz	0.5dB	15dB	45dB min @ DC ~ 6200MHz 45dB min @ 8800 ~ 12000MHz	59.0 X 22.0 X 17.0mm	pdf
7870	7870MHz	MBP-C7870BP1000P	Band Pass Filter	BEAD	50Ohm	1000MHz	3.0dB	16dB	30dBc min @ 6900MHz 30dBc min @ 8770MHz	65.0 X 16.0 X 14.0mm	pdf
7900	7900MHz	MBP-C7900BP660P	Band Pass Filter	BEAD	50Ohm	660MHz	3.0dB	16dB	25dBc min @ 7070MHz 30dBc min @ 8700MHz	60.0 X 16.0 X 14.0mm	pdf
8000	8000MHz	MBP-C8000BP600S	Band Pass Filter	Connectorized	50Ohm	600MHz	1.0dB	15dB	65dB min @ 7600MHz 65dB min @ 8400MHz	190.0 X 72.0 X 12.0mm	pdf
8150	8150MHz	MBP-C8150_500MF-A-R0	Band Pass Filter	Waveguide	50Ohm	500MHz	1.8dB	15dB	85dB min @ 7200 ~ 7950MHz	120.0 X 60.0 X 20.0mm	pdf
8150	8150MHz	MBP-C8160BP780S	Band Pass Filter	Connectorized	50Ohm	780MHz	1.0dB	18dB	35dB min @ 7400MHz 35dB min @ 9000MHz	64.0 X 15.0 X 12.0mm	pdf
8200	8200MHz	MBP-C8200BP580P	Band Pass Filter	BEAD	50Ohm	580MHz	3.0dB	16dB	35dBc min @ 7530MHz 30dBc min @ 8900MHz	55.0 X 16.0 X 14.0mm	pdf
8220	8220MHz	MBP-C8220BP580B	Band Pass Filter	BEAD	50Ohm	580MHz	3.0dB	16dB	35dB min @ 7530MHz 30dB min @ 8900MHz	70.0 X 20.0 X 15.0mm	pdf
8250	8250MHz	MBP-C8250_500MS-A-R0	Band Pass Filter	Connectorized	50Ohm	500MHz	1.0dB	15dB	60dBc min @ 7000MHz 60dBc min @ 10000MHz	75.0 X 16.0X 13.5mm	pdf
8250	8250MHz	MBP-C8250_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB min @ DC ~ 6500MHz 60dB min @ 9500 ~ 18000MHz	38.0 X 27.0 X 10.0mm	pdf
8250	8250MHz	MBP-C8250BP600S	Band Pass Filter	Connectorized	50Ohm	600MHz	1.0dB	16dB	35dB min @ 7600MHz 35dB min @ 9000MHz	66.5 X 34.0 X 13.0mm	pdf
5175	5175MHz	MBP-C5175BP650M-D	Band Pass Filter	Connectorized	50Ohm	650MHz	0.6dB	18dB	60dB min @ 4350MHz 30dB min @ 4650MHz 30dB min @ 5700MHz 60dB min @ 6000MHz	100.0 X 45.0 X 20.0mm	pdf
5200	5200MHz	MBP-C5200_100MS-A	Band Pass Filter	Connectorized	50Ohm	100MHz	0.8dB	15dB	60dB min @ 4635MHz 40dB min @ 4892.5MHz 35dB min @ 5047MHz 35dB min @ 5355MHz 40dB min @ 5512.5MHz 60dB min @ 5775MHz	80.0 X 53.0 X 16.0mm	pdf
5250	5250MHz	MBP-C5250_1.5GS-A-R0	Band Pass Filter	Connectorized	50Ohm	1500MHz	0.7dB	14dB	20dB min @ DC ~ 4000MHz 40dB min @ 5000 ~ 12000MHz	60.0 X 17.0 X 13.0mm	pdf
5250	5250MHz	MBP-C5250_200MN-A	Band Pass Filter	Connectorized	50Ohm	200MHz	1.5dB	15dB	50dB min @ DC ~ 5100MHz 60dB min @ 6000 ~ 6500MHz	70.0 X 25.0 X 20.0mm	pdf
5450	5450MHz	MBP-C5450_20MS-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	2.0dB	20dB	60dB min @ 5380MHz 60dB min @ 5520MHz	93.0 X 50.0 X 16.0mm	pdf
5487	5487.5MHz	MBP-C5487.5-775MS-A-R0	Band Pass Filter	Connectorized	50Ohm	775MHz	0.75dB	15dB	40dB min @ DC ~ 2500MHz 60dB min @ 10200 ~ 12750MHz	24.0 X 68.0 x24.0mm	pdf
5500	5500MHz	MBP-C5500_1000MS-A-R0	Band Pass Filter	Connectorized	50Ohm	1000MHz	1.5dB	15dB	45dB min @ DC ~ 4000MHz 45db min @ 6600 ~ 13000MHz	39.0 X 15.5 X 8.0mm	pdf
5565	5565MHz	MBP-C5565_20MS-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	2.0dB	20dB	60dB min @ 5495MHz 60dB min @ 5635MHz	87.0 X 60.0 X 16.0mm	pdf
5600	5600MHz	MBP-C5600_600MS	Band Pass Filter	Connectorized	50Ohm	600MHz	0.5dB	14dB	55dBc min @ 3000 ~ 5000MHz 50dBc min @ 6200 ~ 14000MHz	115.8 X 33.6 X 17.2mm	pdf
5600	5600MHz	MBP-C5600_600MS-B	Band Pass Filter	Connectorized	50Ohm	600MHz	0.5dB	14dB	55dBc min @ 3000 ~ 5000MHz 50dBc min @ 6200 ~ 14000MHz	115.8 X 33.65 X 17.2mm	pdf
5650	5650MHz	MBP-C5650-400MS-A-R0	Band Pass Filter	Connectorized	50Ohm	400MHz	0.9dB	23dB	75dB min @ DC ~ 3500MHz 40dB min @ 3600 ~ 5300MHz 60dB min @ 7000 ~ 14000MHz	0.84 X 2.28 X 0.56 inch	pdf
5650	5650MHz	MBP-C5660_20MS-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	2.0dB	20dB	60dB min @ 5590MHz 60dB min @ 5730MHz	93.0 X 50.0 X 16.0mm	pdf
5675	5675MHz	MBP-C5675_650MN-A	Band Pass Filter	Connectorized	50Ohm	650MHz	1.5dB	15dB	50dB min @ DC ~ 5000MHz 60dB min @ 6500 ~ 7000MHz	75.0 X 25.0 X 20.0mm	pdf
5775	5775MHz	MBP-C5775_20MS-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	2.0dB	20dB	60dB min @ 5705MHz 60dB min @ 5845MHz	93.0 X 50.0 X 16.0mm	pdf
5787	5787.5MHz	MBP-C5787.5_125MS-A	Band Pass Filter	Connectorized	50Ohm	125MHz	0.8dB	14dB	60dB min @ 30 ~ 5300MHz 40dB min @ 5300 ~ 5500MHz 20dB min @ 5500 ~ 5600MHz 20dB min @ 6000 ~ 6100MHz 42dB min @ 6100 ~ 6300MHz 60dB min @ 6300 ~ 6500MHz	50.0 X 30.0 X 25.0mm	pdf
5788	5788MHz	MBP-C5788BP125M	Band Pass Filter	Connectorized	50Ohm	125MHz	0.5dB	20dB	50dB min @ 4500MHz 50dB min @ 6500MHz	50.0 X 17.0 X 15.0mm	pdf
5789	5789MHz / 5803.5MHz	MBP-C5789-C5803.5_12M_17MS-A	Diplexer	Connectorized	50Ohm	12MHz / 17MHz	2.0dB	16dB	18dB min @ 5789.3MHz 20dB min @ 5810MHz	70.0 X 78.0 X 21.0mm	pdf
5800	5800MHz	MBP-C5800_150MN-A	Band Pass Filter	Connectorized	50Ohm	150MHz	1.0dB	16dB	35dB min @ 5639.125 & 5963.125MHz 40dB min @ 5570.425 & 6033.625MHz 60dB min @ 5438.75 & 6168.75MHz	49.784 X 30.48 X 12.7mm	pdf
5800	5800MHz	MBP-C5800_200MS-A	Band Pass Filter	Connectorized	50Ohm	200MHz	0.8dB	15dB	60dB min @ 5130MHz 40dB min @ 5415MHz 35dB min @ 5586MHz 35dB min @ 6018MHz 40dB min @ 6195MHz 60dB min @ 6490MHz	80.0 X 53.0 X 16.0mm	pdf
5930	5930MHz	MBP-C5930BP400P	Band Pass Filter	BEAD	50Ohm	400MHz	3.0dB	16dB	30dBc min @ 5430MHz 30dBc min @ 6530MHz	45.0 X 16.0 X 18.0mm	pdf
4920	4920MHz	MBP-C4920BP160M_R1	Band Pass Filter	Connectorized	50Ohm	160MHz	1.0dB	15dB	75dB min @ 4400 ~ 4700MHz 75dB min @ 5150 ~ 5500MHz	98.0 X 24.0 X 12.7mm	pdf
4925	4925MHz	MBP-C4925BP150M_R2	Band Pass Filter	BEAD	50Ohm	150MHz	1.2dB	15dB	70dB min @ 4400 ~ 4700MHz 70dB min @ 5150 ~ 5500MHz	85.0 X 18.0 X 20.0mm	pdf
4925	4925MHz	MBP-C4925BP180B_R1	Band Pass Filter	BEAD	50Ohm	180MHz	1.2dB	15dB	70dB min @ 4400 ~ 4700MHz 70dB min @ 5150 ~ 5500MHz	65.0 X 20.0 X 20.0mm	pdf
4975	4975MHz	MBP-C4975_250MS-A-R5_FINAL	Band Pass Filter	Connectorized	50Ohm	250MHz	1.0dB	-	30dB min @ DC ~ 4800MHz 30dB min @ 5150 ~ 10000MHz	74.5 X 40.0 X 23.0mm	pdf
4975	4975MHz	MBP-C4975-250MS-A-R1	Band Pass Filter	Connectorized	50Ohm	250MHz	1.3dB	15dB	50dB min @ DC ~ 4800MHz 50dB min @ 5150 ~ 10000MHz	106.0 X 31.0 X 15.0mm	pdf
5000	5000MHz	MBP-C5000_2GS-A-R0	Band Pass Filter	Connectorized	50Ohm	2000MHz	0.5dB	15dB	40dB min @ DC ~ 3800MHz 40dB min @ 6200 ~ 12000MHz	70.0 X 23.0 X 20.0mm	pdf
5000	5000MHz	MBP-C5000_200MN-A	Band Pass Filter	Connectorized	50Ohm	200MHz	1.5dB	15dB	60dB min @ DC ~ 3800MHz 50dB min @ 5150 ~ 6000MHz	75.0 X 30.0 X 20.0mm	pdf
5000	5000MHz	MBP-C5000_200MS-A-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	0.8dB	14dB	70dB min @ 4700MHz 70dB min @ 5300MHz	80.0 X 40.0 X 16.0mm	pdf
5000	5000MHz	MBP-C5000BP600S	Band Pass Filter	Connectorized	50Ohm	600MHz	1.0dB	15dB	65dB min @ 4600MHz 65dB min @ 5400MHz	134.0 X 54.0 X18.0mm	pdf
5025	5025MHz	MBP-C5025_3300MS	Band Pass Filter	Connectorized	50Ohm	3300MHz	1.5dB	10dB	45dB min @ 2500MHz 45dB min @ 7700MHz	44.0 X 21.0 X 8.0mm	pdf
5120	5120MHz	MBP-C5120_500MT-A-R0	Band Pass Filter	Connectorized	50Ohm	500MHz	0.8dB	16dB	80dB min @ DC ~ 3870MHz 35dB min @ 3870 ~ 4820MHz 65dB min @ 5700 ~ 7000MHz 60dB min @ 7000 ~ 13000MHz 35dB min @ 13000 ~ 16000MHz	57.91 X 23.87 X 18.29mm	pdf
5125	5125MHz	MBP-C5125-450MS-A-R0	Band Pass Filter	Connectorized	50Ohm	450MHz	0.8dB	23dB	70dB min @ DC ~ 3500MHz 45dB min @ 5600 ~ 6200MHz 60dB min @ 6200 ~ 14000MHz	0.84 X 1.89 X 0.56inch	pdf
5150	5150MHz	MBP-C5150_300MN-A-R2	Band Pass Filter	Connectorized	50Ohm	300MHz	1.3dB	14dB	75dBc min @ 3500MHz 30dBc min @ 4950MHz 30dBc min @ 5350MHz 75dBc min @ 7000MHz	112.0 X 40.0 X 26.0mm	pdf
5150	5150MHz	MBP-C5150_300MS-A	Diplexer	Connectorized	50Ohm	300MHz	1.5dB	15dB	30dB min @ 4950MHz 30dB min @ 5350MHz	55.0 X 55.0 X 15.0mm	pdf
5150	5150MHz	MBP-C5150_300MS-B	Diplexer	Connectorized	50Ohm	300MHz	1.8dB	15dB	45dB min @ 4950MHz 45dB min @ 5350MHz	70.0 X 55.0 X 15.0mm	pdf
5150	5150MHz	MBP-C5150_300MS-C	Diplexer	Connectorized	50Ohm	300MHz	1.8dB	15dB	45dB min @ 4950MHz 45dB min @ 5350MHz	67.0 X 28.0 X 15.0mm	pdf
5175	5175MHz	MBP-C5175_250MS-A-R3	Band Pass Filter	Connectorized	50Ohm	250MHz	2.0dB	15dB	45dB min @ 5000MHz 45dB min @ 5350MHz	50.0 X 18.0 X 14.0mm	pdf
5175	5175MHz	MBP-C5175BP650M	Band Pass Filter	Connectorized	50Ohm	650MHz	0.6dB	18dB	60dB min @ 4350MHz 30dB min @ 5700MHz 30dB min @ 4650MHz 60dB min @ 6000MHz	98.5 X 45.0 X 16.0mm	pdf
5175	5175MHz	MBP-C5175BP650M-A	Band Pass Filter	Connectorized	50Ohm	650MHz	0.6dB	18dB	60dB min @ 4350MHz 30dB min @ 4650MHz 30dB min @ 5700MHz 60dB min @ 6000MHz	100.0 X 45.0 X 22.0mm	pdf
5175	5175MHz	MBP-C5175BP650M-B	Band Pass Filter	Connectorized	50Ohm	650MHz	0.6dB	18dB	60dB min @ 4350MHz 30dB min @ 4650MHz 30dB min @ 5700MHz 60dB min @ 6000MHz	100.0 X 45.0 X 20.0mm	pdf
4450	4450MHz	MBP-C4450_100MH-A	Band Pass Filter	BEAD	50Ohm	100MHz	1.0dB	12dB	60dB min @ 5000MHz 40dB min @ 9000 ~ 10000MHz	56.0 X 17.0 X 14.0mm	pdf
4475	4475MHz	MBP-C4475BP150M_R2	Band Pass Filter	BEAD	50Ohm	150MHz	1.2dB	15dB	70dB min @ 4000 ~ 4250MHz 70dB min @ 4700 ~ 5500MHz	85.0 X 18.0 X 20.0mm	pdf
4475	4475MHz	MBP-C4475BP180B_R1	Band Pass Filter	BEAD	50Ohm	180MHz	1.2dB	15dB	70dB min @ 4000 ~ 4250MHz 70dB min @ 4700 ~ 5500MHz	65.0 X 20.0 X 20.0mm	pdf
4500	4500MHz	MBP-C4500_200MS-A-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	0.8dB	14dB	70dB min @ 4200MHz 70dB min @ 4800MHz	80.0 X 40.0 X 17.0mm	pdf
4500	4500MHz	MBP-C4500BP1000M	Band Pass Filter	Connectorized	50Ohm	1000MHz	2.0dB	15dB	60dB min @ 4900 ~ 13500MHz	82.0 X 48.0 X 14.0mm	pdf
4525	4525MHz	MBP-C4525BP250HB	Band Pass Filter	Connectorized	50Ohm	250MHz	0.5dB	14dB	30dBc min @ DC ~ 3700MHz 20dBc min @ 4250MHz 30dBc min @ 4850MHz 40dBc min @ 4850 ~ 12000MHz	98.0 X 23.0 X 17.0mm	pdf
4557	4557.5MHz	MBP-C4557.5_125MB-A-R0	Band Pass Filter	BEAD	50Ohm	125MHz	5.0dB	15dB	45dB min @ 3000MHz 45dB min @ 4475MHz 40dB min @ 4630MHz 45dB min @ 6000MHz	55.0 X 121.0 X 28.0mm	pdf
4620	4620MHz	MBP-C4620BP160M_R1	Band Pass Filter	Connectorized	50Ohm	160MHz	1.0dB	15dB	75dB min @ 4000 ~ 4400MHz 75dB min @ 4840 ~ 5500MHz	98.0 X 24.0 X 12.7mm	pdf
4625	4625MHz	MBP-C4625BP150M_R2	Band Pass Filter	BEAD	50Ohm	150MHz	1.2dB	15dB	70dB min @ 4000 ~ 4400MHz 70dB min @ 4850 ~ 5500MHz	85.0 X 18.0 X 20.0mm	pdf
4625	4625MHz	MBP-C4625BP180B_R01	Band Pass Filter	BEAD	50Ohm	180MHz	1.2dB	15dB	70dB min @ 4000 ~ 4400MHz 70dB min @ 4850 ~ 5500MHz	65.0 X 20.0 X 20.0mm	pdf
4650	4650MHz	MBP-C4650_700MS-A-R0	Band Pass Filter	Connectorized	50Ohm	700MHz	0.2dB	17dB	10dB min @ 2500MHz	84.0 X 30.0 X 17.0mm	pdf
4650	4650MHz	MBP-C4650-1300MS-A-R1	Band Pass Filter	Connectorized	50Ohm	1300MHz	0.7dB	15dB	40dB min @ DC ~ 3600MHz 40dB min @ 5500 ~ 12000MHz	90.0 X 20.0 X 15.0mm	pdf
4700	4700MHz	MBP-C4700BP120A	Band Pass Filter	Connectorized	50Ohm	120MHz	0.5dB	15dB	50dBc min @ DC ~ 4520MHz 50dBc min @ 4880 ~ 6000MHz	59.0 X 39.0 X 25.0mm	pdf
4700	4700MHz	MBP-C4700BP600M	Band Pass Filter	Connectorized	50Ohm	600MHz	1.0dB	18dB	50dB min @ 4000MHz 50dB min @ 5300Mhz	60.0 X 38.0 X 18.0mm	pdf
4742	4742.5MHz	MBP-C4742.5_125MB-A-R0	Band Pass Filter	BEAD	50Ohm	125MHz	5.0dB	15dB	45dB min @ 3000MHz 45dB min @ 4670MHz 40dB min @ 4825MHz 45dB min @ 6000MHz	55.0 X 121.0 X 28.0mm	pdf
4770	4770MHz	MBP-C4770BP160M_R1	Band Pass Filter	Connectorized	50Ohm	160MHz	1.0dB	15dB	75dB min @ 4000 ~ 4550MHz 75dB min @ 5000 ~ 5500MHz	98.0 X 24.0 X 12.7mm	pdf
4775	4775MHz	MBP-C4775BP150M_R2	Band Pass Filter	BEAD	50Ohm	150MHz	1.2dB	15dB	70dB min @ 4000 ~ 4550MHz 70dB min @ 5000 ~ 5500MHz	85.0 X 18.0 X 20.0mm	pdf
4775	4775MHz	MBP-C4775BP180B_R1	Band Pass Filter	BEAD	50Ohm	180MHz	1.2dB	15dB	70dB min @ 4000 ~ 4550MHz 70dB min @ 5000 ~ 5500MHz	65.0 X 20.0 X 20.0mm	pdf
4800	4800MHz	MBP-C4800_300MB-A-R0	Band Pass Filter	BEAD	50Ohm	300MHz	2.5dB	15dB	50dB min @ 4500MHz 50dB min @ 5050 ~ 10000MHz	61.0 X 33.0 X 18.0mm	pdf
4800	4800MHz	MBP-C4800_300MB-B-R0	Band Pass Filter	BEAD	50Ohm	300MHz	2.5dB	15dB	50dB min @ DC ~ 4350MHz 32dB min @ 4350 ~ 4500MHz 32dB min @ 5050 ~ 5250MHz 50dB min @ 5250 ~ 9900MHz	35.0 X 15.0 X 12.0mm	pdf
3250	3250MHz	MBP-C3250_500MS-A-R1	Band Pass Filter	Connectorized	50Ohm	500MHz	0.6dB	16dB	55dBc min @ 2100 ~ 4400MHz 30dBc min @ 2600 ~ 3900MHz 20dBc min @ 2750 ~ 3750MHz 5dBc min @ 2850 ~ 3650MHz	50.0 X 40.0 X 20.0mm	pdf
3250	3250MHz	MBP-C3250_500MS-B-R0	Band Pass Filter	Connectorized	50Ohm	500MHz	0.5dB	16dB	5dBc min @ 2850 ~ 3650MHz 12dBc min @ 2700 ~ 3800 & 2100 ~ 4350MHz 16dBc min @ 2400 ~ 4100 & 2100 ~ 4400MHz	104.0 X 32.0 X 19.0mm	pdf
3285	3285MHz	MBP-C3285_30MS-A-R0	Band Pass Filter	Connectorized	50Ohm	30MHz	2.0dB	20dB	60dB min @ 3210MHz 60dB min @ 3360MHz	93.0 X 50.0 X 18.0mm	pdf
3460	3460MHz	MBP-C3460_60MS-A-R0	Band Pass Filter	Connectorized	50Ohm	60MHz	2.0dB	20dB	60dB min @ 3370MHz 60dB min @ 3550MHz	93.0 X 50.0 X 18.0mm	pdf
3500	3500MHz	MBP-C3500_20MS	Band Pass Filter	Connectorized	50Ohm	20MHz	1.5dB	15dB	65dBc min @ 3200MHz 65dBc min @ 3800MHz	62.0 X 20.0 X 20.0mm	pdf
3500	3500MHz	MBP-C3500_1000MS	Band Pass Filter	Connectorized	50Ohm	1000MHz	1.0dB	15dB	45dBc min @ 2700MHz 45dBc min @ 4300MHz	130.0 X 20.0 X 20.0mm	pdf
3550	3550MHz	MBP-C3550_100MN-A	Band Pass Filter	Connectorized	50Ohm	100MHz	0.6dB	15dB	55dB min @ 700 ~ 960MHz 55dB min @ 1710 ~ 1990MHz 55dB min @ 2110 ~ 2200MHz 55dB min @ 2300 ~ 2400MHz 55dB min @ 2496 ~ 2690MHz	62.0 X 40.0 X 23.0mm	pdf
3550	3550MHz	MBP-C3550_500MN-A	Band Pass Filter	Connectorized	50Ohm	500MHz	0.6dB	15dB	55dB min @ 700 ~ 960MHz 55dB min @ 1710 ~ 1990MHz 55dB min @ 2110 ~ 2200MHz 55dB min @ 2300 ~ 2400MHz 55dB min @ 2496 ~ 2690MHz	72.0 X 40.0 X 23.0mm	pdf
3550	3550MHz	MBP-C3550_500MS-A	Band Pass Filter	Connectorized	50Ohm	500MHz	0.6dB	18dB	55dB min @ 700 ~ 960MHz 55dB min @ 1710 ~ 1990MHz 55dB min @ 2110 ~ 2200MHz 55dB min @ 2300 ~ 2400MHz 55dB min @ 2496 ~ 2690MHz	72.0 X 40.0 X 23.0mm	pdf
3600	3600MHz	MBP-C3600_400MS-A-R0	Band Pass Filter	Connectorized	50Ohm	400MHz	1.5dB	12dB	59dB min @ DC ~ 3000MHz 29dB min @ 3000 ~ 3360MHz 54dB min @ 3840 ~ 4300MHz 49dB min @ 4300 ~ 7650MHz 29dB min @ 7650 ~ 13000MHz	82.0 X 195.0 X 27.0mm	pdf
3625	3625MHz	MBP-C3625_150MS-A-R0	Band Pass Filter	Connectorized	50Ohm	150MHz	1.0dB	18dB	60dB min @ DC ~ 2960MHz	118.0 X 34.0 X 24.0mm	pdf
3625	3625MHz	MBP-C3625_350MN-A	Band Pass Filter	Connectorized	50Ohm	350MHz	1.5dB	15B	50dB min @ DC ~ 2700MHz 60dB min @ 5000 ~ 6000MHz	30.0 X 45.0 X 20.0mm	pdf
3750	3750MHz	MBP-C3750_1.5GS-A-R0	Band Pass Filter	Connectorized	50Ohm	1500MHz	0.7dB	14dB	20dB min @ DC ~ 2700MHz 70dB min @ 5000 ~ 8000MHz	100.0 X 24.0 X 16.5mm	pdf
3750	3750MHz	MBP-C3750BP100B	Band Pass Filter	BEAD	50Ohm	100MHz	2.0dB	18dB	50dB min @ 100 ~ 3000MHz 50dB min @ 3870 ~ 4200MHz 55dB min @ 4300 ~ 6000MHz	75.0 X 18.0 X 22.0mm	pdf
3800	3800MHz	MBP-C3800_200MS-A-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	0.8dB	15dB	60dB min @ DC ~ 3400MHz 60dB min @ 4200 ~ 10000MHz	96.4 X 47.0 X 20.0mm	pdf
3950	3950MHz	MBP-C3950-500MW-A-R0	Band Pass Filter	Connectorized	50Ohm	500MHz	0.5dB	15dB	25dB min @ 3650 & 4250MHz 60dB min @ 3550 & 4350MHz 70dB min @ 3500 & 4400MHz 70dB min @ 5800 & 6500MHz	110.0 X 71.0 X 36.0mm	pdf
4000	4000MHz	MBP-C4000-400MW-A-R0	Band Pass Filter	Connectorized	50Ohm	400MHz	0.5dB	15dB	25dB min @ 3750 & 4250MHz 60dB min @ 3650 & 4350MHz 70dB min @ 3600 & 4400MHz 70dB min @ 5800 & 6500MHz	120.0 X 98.8 X 70.2mm	pdf
4100	4100MHz	MBP-C4100_500MT-A-R0	Band Pass Filter	Connectorized	50Ohm	500MHz	0.8dB	16dB	80dB min @ DC ~ 2000MHz 80dB min @ 2000 ~ 2700MHz 50dB min @ 2700 ~ 3380MHz 50dB min @ 4820 ~ 6000MHz 60dB min @ 6000 ~ 12000MHz	45.72 X 18.8 X 18.29mm	pdf
4100	4100MHz	MBP-C4100BP1400M	Band Pass Filter	Connectorized	50Ohm	1400MHz	1.0dB	15dB	50dBc min @ 2000MHz 50dBc min @ 6200MHz	60.0 X 20.0 X 18.0mm	pdf
4150	4150MHz	MBP-C4150_500MS-A	Band Pass Filter	Connectorized	50Ohm	500MHz	1.5dB	12dB	55dB min @ DC ~ 3400MHz 55edB min @ 4900 ~ 10000MHz	48.0 X 18.0 X 8.0mm	pdf
2595	2595MHz	MBP-C2595_50MS-A-R1	Band Pass Filter	Connectorized	50Ohm	50MHz	1.0dB	15dB	70dB min @ DC ~ 1300MHz 40dB min @ 1350 ~ 2460MHz 40dB min @ 2750 ~ 4000MHz 70dB min @ 4100 ~ 8000MHz	45.0 X 18.0 X 18.0mm	pdf
2595	2595MHz	MBP-C2595_50MS-B-R0	Band Pass Filter	Connectorized	50Ohm	50MHz	1.8dB	15dB	70dB min @ DC ~ 1300MHz 40dB min @ 1350 ~ 2460MHz 40dB min @ 2750 ~ 4000MHz 70dB min @ 4100 ~ 8000MHz	41.0 X 21.0 X 9.5mm	pdf
2600	2600MHz	MBP-C2600_200MS-B-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	1.2dB	15dB	55dB min @ DC ~ 2100MHz 25dB min @ 2100 ~ 2400MHz 40dB min @ 2850 ~ 4000MHz 70dB min @ 4000 ~ 8700MHz	45.0 X 20.0 X 23.0mm	pdf
2600	2600MHz	MBP-C2600_200MT-A-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	1.2dB	15dB	55dB min @ DC ~ 2100MHz 25dB min @ 2100 ~ 2400MHz 40dB min @ 2850 ~ 4000MHz 70dB min @ 4000 ~ 8700MHz	45.0 X 20.0 X 23.0mm	pdf
2600	2600MHz	MBP-C2600BP600M	Band Pass Filter	Connectorized	50Ohm	600MHz	1.0dB	18dB	35dB min @ 2160MHz 35dB min @ 3050MHz	97.5 X 55.5 X 26.0mm	pdf
2655	2655MHz	MBP-C2655_70MN-A	Band Pass Filter	Connectorized	50Ohm	70MHz	1.5dB	15dB	50dB min @ DC ~ 2570MHz 60dB min @ 3500 ~ 6000MHz	90.0 X 50.0 X 25.0mm	pdf
2655	2655MHz	MBP-C2655_70MS-A	Band Pass Filter	Connectorized	50Ohm	70MHz	3.5dB	15dB	50dB min @ DC ~ 2613MHz 50dB min @ 2697 ~ 6000MHz	190.0 X 64.5 X 25.5mm	pdf
2655	2655MHz	MBP-C2655BP70M	Band Pass Filter	Connectorized	50Ohm	70MHz	1.0dB	18dB	67dB min @ 2535MHz 67dB min @ 2775MHz	42.0 X 80.0 X 23.0mm	pdf
2693	2693.75MHz	MBP-C2693.75_8MS-A	Band Pass Filter	Connectorized	50Ohm	8MHz	1.0dB	14dB	70dBc min @ 1000 MHz / 2665MHz 45dBc min @ 2675MHz 60dBc min @ 2710MHz 70dBc min @ 2720MHz / 6000MHz	110.0 X 74.0 X 43.0mm	pdf
2720	2720MHz	MBP-C2720_60MS-A-R0	Band Pass Filter	Connectorized	50Ohm	60MHz	1.0dB	15dB	70dB min @ DC ~ 1300MHz 40dB min @ 1400 ~ 2600MHz 40dB min @ 2900 ~ 4000MHz 70dB min @ 4100 ~ 8300MHz	45.0 X 18.0 X 18.0mm	pdf
2728	2728MHz	MBP-C2728_464MS-A-R0	Band Pass Filter	Connectorized	50Ohm	464MHz	1.0dB	18dB	60dB min @ DC ~ 2360MHz 60dB min @ 3550 ~ 3700MHz	102.0 X 87.0 X 29.0mm	pdf
2795	2795MHz	MBP-C2795_210MS-A-R0	Band Pass Filter	Connectorized	50Ohm	210MHz	1.2dB	15dB	70dB min @ DC ~ 1300MHz 25dB min @ 1400 ~ 2645MHz 40dB min @ 3050 ~ 4000MHz 70dB min @ 4100 ~ 8700MHz	45.0 X 18.0 X 18.0mm	pdf
2795	2795MHz	MBP-C2795_210MS-C-R0	Band Pass Filter	Connectorized	50Ohm	210MHz	1.0dB	14dB	65dBc min @ DC ~ 2645MHz 32dBc min @ 2675MHz 32dBc min @ 2915MHz 70dBc min @ 3050 ~ 6200MHz 50dBc min @ 6300 ~ 11600MHz	140.0 X 120.0 X 35.0mm	pdf
2810	2810MHz	MBP-C2810_240MS-A-R2	Band Pass Filter	Connectorized	50Ohm	240MHz	1.2dB	18dB	40dBc min @ DC ~ 30MHz 50dBc min @ 50 ~ 2645MHz 25dBc min @ 2645 ~ 2675MHz 25dBc min @ 2945 ~ 3080MHz 50dBc min @ 3080 ~ 12000MHz 20dBc min @ 12000 ~ 20000MHz 15dBc min @ 29000 ~ 30000MHz	105.0 X 75.0 X 32.0mm	pdf
2810	2810MHz	MBP-C2810_240MS-B-R1	Band Pass Filter	Connectorized	50Ohm	240MHz	1.5dB	15.6dB	60dB min @ DC ~ 902MHz 70dB min @ 902 ~ 2665MHz 55dB min @ 2655 ~ 2675MHz 55dB min @ 2945 ~ 3045MHz 70dB min @ 3045 ~ 6000 MHz 50dB min @ 6000 ~ 12000MHz 25dB min @ 12000 ~ 30000MHz	140.0 X 120.0 X 21.0mm	pdf
2810	2810MHz	MBP-C2810_240MS-C-R2	Band Pass Filter	Connectorized	50Ohm	240MHz	0.9dB	15dB	70dB min @ DC ~ 2100MHz 40dB min @ 2100 ~ 2645MHz 25dB min @ 3000 ~ 4100MHz 70dB min @ 4100 ~ 9500MHz	45.0 X 20.0 X 28.0mm	pdf
2852	2852.5MHz	MBP-C2852.5_95MS-A-R1	Band Pass Filter	Connectorized	50Ohm	95MHz	0.8dB	18dB	40dB min @ 2620MHz 40dB min @ 4100 ~ 8300MHz	15.0 X 45.0 X 17.0mm	pdf
2852	2852.5MHz	MBP-C2852.5_95MS-B-R1	Band Pass Filter	Connectorized	50Ohm	95MHz	1.0dB	15dB	70dB min @ DC ~ 1300MHz 40dB min @ 1400 ~ 2500MHz 35dB min @ 2500 ~ 2760MHz 40dB min @ 3050 ~ 4000MHz 70dB min @ 4100 ~ 8700MHz	45.0 X 18.0 X 18.0mm	pdf
2852	2852.5MHz	MBP-C2852.5_95MS-C-R2	Band Pass Filter	Connectorized	50Ohm	95MHz	1.0dB	14dB	70dBc min @ DC ~ 2760MHz 40dBc min @ 2790MHz 40dBc min @ 2915MHz 70dBc min @ 3050 ~ 6200MHz 50dBc nin @ 6300 ~ 11600MHz	140.0 X 120.0 X 35.0mm	pdf
3000	3000MHz	MBP-C3000_1500MB-A-R0	Band Pass Filter	BEAD	50Ohm	1500MHz	3.0dB	15dB	60dB min @ DC ~ 2050MHz 60dB min @ 3950 ~ 6000MHz	113.0 X 36.0 X 29.0mm	pdf
2362	2362.5MHz	MBP-C2362.5BP225B	Band Pass Filter	Connectorized	50Ohm	225MHz	0.8dB	18dB	70dB min @ 1912.5 ~ 2812.5MHz	65.0 X 20.0 X 35.0mm	pdf
2362	2362.5MHz	MBP-C2362.5BP225BC	Band Pass Filter	Connectorized	50Ohm	225MHz	1.0dB	18dB	70dB min @ 1912.5 ~ 2812.5MHz	105.0 X 37.0 X 20.0mm	pdf
2442	2442.5MHz	MBP-C2442.5_85MN-A	Band Pass Filter	Connectorized	50Ohm	85MHz	2.0dB	15dB	60dB min @ DC ~ 2180MHz 50dB min @ 2500 ~ 6000MHz	55.0 X 35.0 X 33.0mm	pdf
2450	2450MHz	MBP-C2450_100MS-A	Band Pass Filter	Connectorized	50Ohm	100MHz	0.8dB	18dB	40dB min @ DC ~ 2370MHz 40dB min @ 2530 ~ 2700MHz 80dB min @ 2700 ~ 6000MHz	5.0 X 1.8 X 1.0inch	pdf
2450	2450MHz	MBP-C2450_200MS-A-R1	Band Pass Filter	Connectorized	50Ohm	200MHz	1.2dB	15dB	60dB min @ 10 ~ 2000MHz 60dB min @ 3000 ~ 6000MHz	24.0 X 84.0 X 20.0mm	pdf
2450	2450MHz	MBP-C2450_500MS-A-R1	Band Pass Filter	Connectorized	50Ohm	500MHz	1.0dB	20.0dB	70dB min @ DC ~ 2000MHz 30dB min @ 2150MHz 30dB min @ 2750MHz 70dB min @ 2900 ~ 8500MHz	100.0 X 80.0 X 27.0mm	pdf
2450	2450MHz	MBP-C2450-100MS-A-R0	Band Pass Filter	Connectorized	50Ohm	100MHz	0.75dB	15dB	40dB min @ DC ~ 1610MHz 60dB min @ 4800 ~ 6000MHz	30.0 X 102.0 X 33.0mm	pdf
2475	2475MHz	MBP-C2475_250MS-A	Band Pass Filter	Connectorized	50Ohm	250MHz	1.0dB	15dB	60dB min @ 2115MHz 40dB min @ 2232.5MHz 35dB min @ 2303MHz 35dB min @ 2652MHz 40dB min @ 2730MHz 60dB min @ 2860MHz 60dB min @ 4700 ~ 9500MHz	120.0 X 53.0 X 22.0mm	pdf
2480	2480MHz	MBP-C2480_60MS-A	Band Pass Filter	Connectorized	50Ohm	60MHz	1.0dB	15dB	60dB min @ 2205MHz 40dB min @ 2327.5MHz 35dB min @ 2401MHz 35dB min @ 2560.2MHz 40dB min @ 2635.5MHz 60dB min @ 2761MHz 60dB min @ 4900 ~ 12550MHz	120.0 X 53.0 X 22.0mm	pdf
2490	2490MHz	MBP-C2490_20MN-A	Band Pass Filter	Connectorized	50Ohm	20MHz	1.3dB	18dB	20dB min @ 2460MHz 20dB min @ 2520MHz	75.0 X 28.0 X 25.0mm	pdf
2492	2492.028MHz	MBP-C2492BP40M	Band Pass Filter	Connectorized	50Ohm	40MHz	1.0dB	20dB	0.5dB min @ 2,483.778 ~ 2,500.278MHz 1.0dB min @ 2472.028 ~ 2512.028MHz	140.0 X 70.0 X 27.0mm	pdf
2512	2512.5MHz	MBP-C2512.5_75MN-A-R1	Band Pass Filter	Connectorized	50Ohm	75MHz	0.8dB	18dB	100dB min @ DC ~ 2400MHz 100dB min @ 2625 ~ 3000MHz	111.0 X 60.0 X 26.0mm	pdf
2535	2535MHz	MBP-C2535_70MN-A	Band Pass Filter	Connectorized	50Ohm	70MHz	1.5dB	15dB	40dB min @ DC ~ 2485MHz 50dB min @ 2620 ~ 6000MHz	120.0 X 50.0 X 30.0mm	pdf
2535	2535MHz	MBP-C2535BP70M	Band Pass Filter	Connectorized	50Ohm	70MHz	1.0dB	18dB	40dB min @ 2415MHz 40dB min @ 2655MHz	42.0 X 70.0 X 23.0mm	pdf
2575	2575MHz	MBP-C2575BP30M	Band Pass Filter	Connectorized	50Ohm	30MHz	1.0dB	15dB	30dB min @ 2525 ~ 2625MHz	43.5 X 43.5 X 23.0mm	pdf
2587	2587.5MHz	MBP-C2587.5BP225A	Band Pass Filter	Connectorized	50Ohm	225MHz	0.5dB	18dB	70dB min @ 2137.5 ~ 3037.5MHz	111.0 X 29.0 X 30.0mm	pdf
2587	2587.5MHz	MBP-C2587.5BP225B	Band Pass Filter	Connectorized	50Ohm	225MHz	0.8dB	18dB	70dB min @ 2137.5 ~ 3037.5MHz	65.0 X 20.0 X 35.0mm	pdf
2587	2587.5MHz	MBP-C2587.5BP225BC	Band Pass Filter	Connectorized	50Ohm	225MHz	1.0dB	18dB	70dB min @ 2137.5 ~ 3037.5MHz	105.0 X 37.0 X 20.0mm	pdf
2593	2593MHz	MBP-C2593BP194N	Band Pass Filter	Connectorized	50Ohm	194MHz	1.0dB	20dB	60dB min @ 2710MHz 60dB min @ 2476MHz	191.0 X 83.0 X 30.0mm	pdf
2595	2595MHz	MBP-C2595_30MS-A-R0	Band Pass Filter	Connectorized	50Ohm	30MHz	1.8dB	18dB	50dB min @ 2570MHz 50dB min @ 2620MHz	51.0 X 114.0 X 35.0mm	pdf
2250	2250MHz	MBP-C2250BP100S	Band Pass Filter	Connectorized	50Ohm	100MHz	3.0dB	18dB	35dB min @ 2160MHz 35dB min @ 2340MHz	74.0 X 39.0 X 28.0mm	pdf
2250	2250MHz	MBP-C2250BP100SN	Band Pass Filter	Connectorized	50Ohm	100MHz	3.6dB	18dB	35dB min @ 2160MHz 35dB min @ 2340MHz	74.0 X 39.0 X 28.0mm	pdf
2270	2270MHz	MBP-C2270_40MS-B-R0	Band Pass Filter	Connectorized	50Ohm	40MHz	1.5dB	18dB	50dB min @ 1000 ~ 2220MHz 50dB min @ 2310 ~ 3000MHz	85.0 X 48.0 X 32.0mm	pdf
2270	2270MHz	MBP-C2270-40MS-A-R0	Band Pass Filter	Connectorized	50Ohm	40MHz	1.5dB	15dB	50dB min @ 1000 ~ 2220MHz 50dB min @ 2310 ~ 3000MHz	55.0 X 96.5 X 32.0mm	pdf
2300	2300MHz	MBP-C2300_80MS-A-R0	Band Pass Filter	Connectorized	50Ohm	80MHz	0.9dB	16dB	80dBc min @ DC ~ 2000MHz 45dBc min @ 2100 ~ 2210MHz 45dBc min @ 2390 ~ 2700MHz 80dBc min @ 2800 ~ 6000MHz 60dBc min @ 6000 ~ 10000MHz 80dBc min @ 10000 ~ 20000MHz	86.4 X 62.32 X 21.0mm	pdf
2300	2300MHz	MBP-C2300_200MB-A-R2	Band Pass Filter	Connectorized	50Ohm	200MHz	1.5dB	18dB	50dB min @ 1000 ~ 2220MHz 50dB min @ 2310 ~ 3000MHz	85.0 X 48.0 X 32.0mm	pdf
2300	2300MHz	MBP-C2300_200MS-A	Band Pass Filter	Connectorized	50Ohm	200MHz	0.4dB	15dB	65dBc min @ DC ~ 1800MHz 36dBc min @ 2000MHz 20dBc min @ 2500MHz 60dBc min @ 2700 ~ 7000MHz 56dBc min @ 7200MHz	47.0 X 30.0 X 15.0mm	pdf
2300	2300MHz	MBP-C2300_200MS-B-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	2.0dB	20dB	60dB min @ 2140 MHz 60dB min @ 2460 MHz	148.0 X 58.0 X 23.0mm	pdf
2300	2300MHz	MBP-C2300BP200B_R1	Band Pass Filter	BEAD	50Ohm	200MHz	0.4dB	15dB	65dBc min @ DC ~ 1800MHz 36dBc min @ 2000MHz 20dBc min @ 2500MHz 60dBc min @ 2700 ~ 7000MHz	47.0 X 30.0 X 15.0mm	pdf
2310	2310MHz	MBP-C2310BP10N	Band Pass Filter	Connectorized	50Ohm	10MHz	1.0dB	20dB	40dB min @ 2295MHz 50dB min @ 2325MHz 60dB min @ 2350 ~ 2360MHz	159.0 X 82.0 X 32.0mm	pdf
2320	2320MHz	MBP-C2320_40MS-B-R0	Band Pass Filter	Connectorized	50Ohm	40MHz	1.5dB	18dB	50dB min @ 1000 ~ 2280MHz 50dB min @ 2380 ~ 3000MHz	85.0 X 48.0 X 32.0mm	pdf
2320	2320MHz	MBP-C2320-40MS-A-R0	Band Pass Filter	Connectorized	50Ohm	40MHz	1.5dB	15dB	50dB min @ 1000 ~ 2280MHz 50dB min @ 2380 ~ 3000MHz	55.0 X 96.5 X 32.0mm	pdf
2350	2350MHz	MBP-C2350BP100N	Band Pass Filter	Connectorized	50Ohm	100MHz	1.0dB	20dB	50dB min @ 2280MHz 60dB min @ 2420MHz	209.0 X 84.0 X 30.0mm	pdf
2350	2350 MHz / 2705MHz	MBP-C2350-C2705_100M-30MS-A-R2	Diplexer	Connectorized	50Ohm	100MHz / 30MHz	1.0dB	15dB	25dB min @ 2250MHz 25dB min @ 2450 ~ 2670MHz 25dB min @ 2750MHz	40.0 X 30.0 X 8.0mm	pdf
2355	2355MHz	MBP-C2355_10MS-A-R0	Band Pass Filter	Connectorized	50Ohm	10MHz	1.0dB	18dB	60dB min @ DC ~ 1995MHz 60dB min @ 2496 ~ 2960MHz	118.0 X 34.0 X 29.0mm	pdf
2359	2359.75MHz	MBP-C2359.75_81MS-A	Band Pass Filter	Connectorized	50Ohm	81MHz	0.7dB	14dB	70dBc min @ 1000MHz 70dBc min @ 2150MHz 55dBc min @ 2200MHz 45dBc min @ 2480MHz 70dBc min @ 2550MHz 70dBc min @ 6000MHz	104.0 X 58.0 X 23.0mm	pdf
2361	2361MHz	MBP-C2361_20MS-A-R1	Band Pass Filter	Connectorized	50Ohm	20MHz	0.8dB	14dB	70dBc min @ 1000 ~ 2326MHz 55dBc min @ 2336MHz 60dBc min @ 2386MHz 70dBc min @ 2411 ~ 6000MHz 50dBc min @ 6200 ~ 9480MHz	140.0 X 120.0 X 35.0mm	pdf
2361	2361MHz	MBP-C2361_20MS-B-R1	Band Pass Filter	Connectorized	50Ohm	20MHz	1.1dB	15dB	70dB min @ DC ~ 1600MHz 40dB min @ 1700 ~ 2270MHz 40dB min @ 2480 ~ 4000MHz 70dB min @ 4100 ~ 9500MHz	45.0 X 18.0 X 18.0mm	pdf
2361	2361MHz	MBP-C2361_20MS-C-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	1.1dB	15dB	70dB min @ DC ~ 1600MHz 35dB min @ 1700 ~ 2235MHz 20dB min @ 2409 ~ 4100MHz 55dB min @ 4100 ~ 9500MHz	45.0 X 18.0 X 18.0mm	pdf
2362	2362.5MHz	MBP-C2362.5BP225A	Band Pass Filter	Connectorized	50Ohm	225MHz	0.5dB	18dB	70dB min @ 1912.5 ~ 2812.5MHz	111.0 X 29.0 X 30.0mm	pdf
1985	1985MHz	MBP-C1985_30MS-A	Band Pass Filter	Connectorized	50Ohm	30MHz	1.2dB	20dB	90dB min @ 1940MHz 40dB min @ 1960MHz 40dB min @ 2010MHz 90dB min @ 2030MHz	190.0 X 79.0 X 28.0mm	pdf
2000	2000MHz	MBP-C2000BP600S	Band Pass Filter	Connectorized	50Ohm	600MHz	1.0dB	15dB	65dB min @ 1600MHz 65dB min @ 2400MHz	134.0 X 54.0 X 27.0mm	pdf
2050	2050MHz	MBP-C2050-300MS-A-R0	Band Pass Filter	Connectorized	50Ohm	300MHz	1.0dB	16dB	30dB min @ 1575MHz 30dB min @ 2400MHz	46.0 X 126.0 X 43.0mm	pdf
2100	2100MHz	MBP-C2100_200MS-A	Band Pass Filter	Connectorized	50Ohm	200MHz	0.6dB	17dB	20dBc min @ 1800MHz 20dBc min @ 2600MHz	66.0 X 41.0 X 18.0mm	pdf
2137	2137.5MHz	MBP-C2137.5BP225A	Band Pass Filter	Connectorized	50Ohm	225MHz	0.5dB	18dB	70dBc min @ 1687.5 ~ 2587.5MHz	111.0 X 29.0 X 30.0mm	pdf
2137	2137.5MHz	MBP-C2137.5BP225B	Band Pass Filter	BEAD	50Ohm	225MHz	0.8dB	18dB	70dBc min @ 1687.5 ~ 2587.5MHz	65.0 X 20.0 X 35.0mm	pdf
2137	2137.5MHz	MBP-C2137.5BP225BC	Band Pass Filter	BEAD	50Ohm	225MHz	1.0dB	18dB	70dBc min @ 1687.5 ~ 2587.5MHz	105.0 X 37.0 X 20.0mm	pdf
2140	2140MHz	MBP-C2140_60MS-A	Band Pass Filter	Connectorized	50Ohm	60MHz	3.0dB	15dB	50dB min @ DC ~ 2103MHz 50dB min @ 2177 ~ 6000MHz	176.0 X 64.5 X 27.5mm	pdf
2140	2140MHz	MBP-C2140_80MN-A	Band Pass Filter	Connectorized	50Ohm	80MHz	1.5dB	15dB	50dB min @ DC ~ 1980MHz 60dB min @ 2400 ~ 6000MHz	90.0 X 20.0 X 31.0mm	pdf
2140	2140MHz	MBP-C2140_80MS-A-R0	Band Pass Filter	Connectorized	50Ohm	80MHz	1.5dB	15dB	50dB min @ DC ~ 1070MHz 50dB min @ 4280 ~ 10700MHz	46.0 X 53.0 X 29.0mm	pdf
2140	2140MHz	MBP-C2140BP60M	Band Pass Filter	Connectorized	50Ohm	60MHz	1.0dB	18dB	67dB min @ 1950MHz 67dB min @ 2330MHz	42.0 X 70.0 X 27.0mm	pdf
2185	2185MHz	MBP-C2185_0.5MS-A-R0	Band Pass Filter	Connectorized	50Ohm	0.5MHz	2.0dB	20dB	50dB min @ 2170MHz	140.0 X 52.0 X 39.0mm	pdf
2190	2190MHz	MBP-C2190_20MS-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	1.6dB	18dB	50dB min @ 2170MHz	122.0 X 66.0 X 26.0mm	pdf
2195	2195MHz	MBP-C2195-50MS-A-R0	Band Pass Filter	Connectorized	50Ohm	50MHz	1.5dB	15dB	50dB min @ 2260 ~ 3000MHz	49.0 X 75.0 X 32.0mm	pdf
2200	2200MHz	MBP-C2200BP40M	Band Pass Filter	Connectorized	50Ohm	40MHz	1.5dB	18dB	50dB min @ 2135MHz 50dB min @ 2265MHz 40dB min @ 4400MHz 40dB min @ 6600MHz 30dB min @ 8800MHz	106.0 X 60.0 X 28.0mm	pdf
2200	2200MHz	MBP-C2200BP400D	Band Pass Filter	Connectorized	50Ohm	400MHz	0.25dB	15dB	30dB min @ 1750 & 2700MHz 60dB min @ 1050 & 2950MHz	191.0 X 39.0 X 36.0mm	pdf
2200	2200MHz	MBP-C2200BP400N_R01	Band Pass Filter	Connectorized	50Ohm	400MHz	0.25dB	15dB	30dB min @ 1750 & 2700MHz 60dB min @ 1050 & 2950MHz	95.0 X 24.0 X 24.0mm	pdf
2245	2245MHz	MBP-C2245_90MS-A-R0	Band Pass Filter	Connectorized	50Ohm	90MHz	1.1dB	18dB	60dB min @ DC ~ 1200MHz 70dB min @ 1277.6±5MHz 70dB min @ 1575±5MHz 65dB min @ 2025 ~ 2110MHz 6.0dB min @ 2180MHz 3.0dB min @ 2310MHz 40dB min @ 2500 ~ 4400MHz 50dB min @ 4400 ~ 4580MHz 30dB min @ 4580 ~ 6600MHz 40dB min @ 6600 ~ 6870MHz 20dB min @ 6870 ~ 11000MHz	58.0 X 32.0 X 18.0mm	pdf
2250	2250MHz	MBP-C2250_30MH-A-R1	Band Pass Filter	Connectorized	50Ohm	30MHz	1.5dB	15dB	45dB min @ 4470 ~ 4530MHz	47.0 X 30.0 X 17.0mm	pdf
2250	2250MHz	MBP-C2250_30MM-A-R0	Band Pass Filter	SMD	50Ohm	30MHz	1.5dB	15dB	45dB min @ 4470 ~ 4530MHz	19.6 X 10.8 X 6.2mm	pdf
1687	1687.5MHz	MBP-C1687.5BP225B	Band Pass Filter	BEAD	50Ohm	225MHz	0.8dB	18dB	70dB min @ 1237.5 ~ 2137.5MHz	65.0 X 20.0 X 35.0mm	pdf
1687	1687.5MHz	MBP-C1687.5BP225BC	Band Pass Filter	BEAD	50Ohm	225MHz	1.0dB	18dB	70dB min @ 1237.5 ~ 2137.5MHz	105 X 37.0 X 20.0mm	pdf
1747	1747.5MHz	MBP-C1747.5_75MN-A	Band Pass Filter	Connectorized	50Ohm	75MHz	0.5dB	15dB	55dBc min @ 1650MHz 55dBc min @ 1805MHz	85.0 X 40.0 X 30.0mm	pdf
1747	1747.5MHz	MBP-C1747.5_75MS-A-R0	Band Pass Filter	Connectorized	50Ohm	75MHz	1.0d	18dB	70dB min @ DC ~ 1645MHz 50dB min @ 1805 ~ 6000MHz	140.2 X 56.38 X 29.0mm	pdf
1750	1750MHz	MBP-C1750_1.5GS-A-R0	Band Pass Filter	Connectorized	50Ohm	1500MHz	1.5dB	14dB	22dB min @ DC ~ 900MHz 3.0dB min @ 900 ~ 950MHz 30dB min @ 2650 ~ 2750MHz 55dB min @ 2750 ~ 3200MHz	97.0 X 48.0 X 14.0mm	pdf
1750	1750MHz	MBP-C1750_500MS-A-R1	Band Pass Filter	Connectorized	50Ohm	500MHz	2.0dB	10dB	30dB min @ DC ~ 1300MHz 30dB min @ 2100 ~ 3000MHz	40.0 X 20.0 X 11.5mm	pdf
1788	1788MHz	MBP-C1788_15MN-A	Band Pass Filter	Connectorized	50Ohm	15MHz	2.8dB	15dB	10dB min @ 10 ~ 1778MHz	155.0 X 70.0 X 31.0mm	pdf
1792	1792.5MHz	MBP-C1792.5_165MN-A	Band Pass Filter	Connectorized	50Ohm	165MHz	1.5dB	15dB	60dB min @ DC ~ 1600MHz 60dB min @ 1925 ~ 6000MHz	130.0 X 40.0 X 31.0mm	pdf
1800	1800MHz	MBP-C1800_1000MS-A-R0	Band Pass Filter	Connectorized	50Ohm	1000MHz	1.0dB	15dB	40dB min @ 1200MHz 40dB min @ 2400MHz	285.0 X 56.0 X 28.5mm	pdf
1842	1842.5MHz	MBP-C1842.5_75MN-A	Band Pass Filter	Connectorized	50Ohm	75MHz	0.5dB	15dB	55dBc min @ 1710MHz 55dBc min @ 1950MHz	85.0 X 40.0 X 30.0mm	pdf
1842	1842.5MHz	MBP-C1842.5_75MS-A-R0	Band Pass Filter	Connectorized	50Ohm	75MHz	1.4dB	18dB	75dB min @ 1945 ~ 4000MHz 30dB min @ 4000 ~ 6000MHz	140.2 X 56.38 X 29.0mm	pdf
1880	1880MHz	MBP-C1880BP60M	Band Pass Filter	Connectorized	50Ohm	60MHz	1.0dB	18dB	40dB min @ 1800MHz 40dB min @ 1960MHz	42.0 X 80.0 X 29.0mm	pdf
1910	1910MHz	MBP-C1910_20MN-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	1.0dB	15dB	40dB min @ 1875MHz 30dB min @ 1930MHz	62.0 X 96.0 X 41.0mm	pdf
1912	1912.5MHz	MBP-C1912.5BP225A	Band Pass Filter	Connectorized	50Ohm	225MHz	0.5dB	18dB	70dB min @ 1462.5 ~ 2362.5MHz	111.0 X 29.0 X 30.0mm	pdf
1912	1912.5MHz	MBP-C1912.5BP225B	Band Pass Filter	BEAD	50Ohm	225MHz	0.8dB	18dB	70dB min @ 1462.5 ~ 2362.5MHz	65.0 X 20.0 X 35.0mm	pdf
1912	1912.5MHz	MBP-C1912.5BP225BC	Band Pass Filter	BEAD	50Ohm	225MHz	1.0dB	18dB	70dB min @ 1462.5 ~ 2362.5MHz	105.0 X 37.0 X 20.0mm	pdf
1950	1950MHz	MBP-C1950_60MN-A	Band Pass Filter	Connectorized	50Ohm	60MHz	1.5dB	15dB	50dB min @ DC ~ 1875MHz 60dB min @ 2100 ~ 6000MHz	90.0 X 30.0 X 31.0mm	pdf
1950	1950MHz	MBP-C1950BP60M	Band Pass Filter	Connectorized	50Ohm	60MHz	1.0dB	18dB	40dB min @ 1760MHz 40dB min @ 2140MHz	42.0 X 60.0 X 27.0mm	pdf
1960	1960MHz	MBP-C1960BP60M	Band Pass Filter	Connectorized	50Ohm	60MHz	1.0dB	18dB	67dB min @ 1880MHz 67dB min @ 2040MHz	42.0 X 80.0 X 29.0mm	pdf
1962	1962.5MHz	MBP-C1962.5_65MS-A-R0	Band Pass Filter	Connectorized	50Ohm	65MHz	1.0dB	18dB	60dB min @ DC ~ 894MHz 60dB min @ 2350 ~ 2690MHz	118.0 X 34.0 X 34.0mm	pdf
1365	1365MHz	MBP-C1365_670MS-A-R3	Band Pass Filter	Connectorized	50Ohm	670MHz	3.5dB	10dB	20dB min @ DC ~ 960MHz 20dB min @ 1800 ~ 6000MHz	30.0 X 60.0 X 14.5mm	pdf
1377	1377.5MHz	MBP-C1377.5_465MS-A-R1	Band Pass Filter	Connectorized	50Ohm	465MHz	0.6dB	20.8dB	40dB min @ DC ~ 982MHz 40dB min @ 1964 ~ 2500MHz	132.0 X 66.0 X 38.0mm	pdf
1387	1387MHz	MBP-C1387-446MS-A-R0	Band Pass Filter	Connectorized	50Ohm	446MHz	1.0dB	10dB	40dB min @ DC ~ 930MHz 60dB min @ 2300 ~ 2800MHz	34.0 X 166.0 X 47.0mm	pdf
1400	1400MHz	MBP-C1400_600MS-A-R0	Band Pass Filter	Connectorized	50Ohm	600MHz	1.0dB	15dB	40dB min @ 1000 ~ 1050MHz 40dB min @ 1750 ~ 1800MHz	106.0 X 106.0 X 36.0mm	pdf
1400	1400MHz	MBP-C1400_750MN-A-R0	Band Pass Filter	Connectorized	50Ohm	750MHz	0.5dB	15dB	0.5dB min @ 1100 ~ 1700MHz 50dB min @ 600MHz 20dB min @ 800MHz 5dB min @ 1000MHz 5dB min @ 1800MHz 20dB min @ 2000MHz 50dB min @ 2200MHz	180.0 X 80.0 X 45.0mm	pdf
1420	1420MHz	MBP-C1420_40MN-A	Band Pass Filter	Connectorized	50Ohm	40MHz	1.5dB	15dB	60dB min @ DC ~ 1260MHz 60dB min @ 1550 ~ 6000MHz	100.0 X 35.0 X 31.0mm	pdf
1439	1439MHz	MBP-C1439_24MSB-C	Band Pass Filter	Connectorized	50Ohm	24MHz	1.0dB	15dB	50dB min @ 1339 ~ 1389MHz 50dB min @ 1489 ~ 1539MHz	41.0 X 41.0 X 26.0mm	pdf
1462	1462.5MHz	MBP-C1462.5BP225A	Band Pass Filter	Connectorized	50Ohm	225MHz	0.5dB	18dB	70dB min @ 1012.5 ~ 1912.5MHz	111.0 X 29.0 X 30.0mm	pdf
1462	1462.5MHz	MBP-C1462.5BP225B	Band Pass Filter	BEAD	50Ohm	225MHz	0.8dB	18dB	70dB min @ 1012.5 ~ 1912.5MHz	65.0 X 20.0 X 35.0mm	pdf
1462	1462.5MHz	MBP-C1462.5BP225BC	Band Pass Filter	BEAD	50Ohm	225MHz	1.0dB	18dB	70dB min @ 1012.5 ~ 1912.5MHz	105.0 X 37.0 X 20.0mm	pdf
1500	1500MHz	MBP-C1500_600MS-A	Band Pass Filter	Connectorized	50Ohm	600MHz	1.5dB	15dB	50dBc min @ 1100MHz 50dBc min @ 1900 ~ 5000MHz	120.0 X 80.0 X 20.0mm	pdf
1575	1575MHz	MBP-C1575_50MN-A-R1	Band Pass Filter	Connectorized	50Ohm	50MHz	1.0dB	18dB	100dB min @ DC ~ 1425MHz 100dB min @ 1675 ~ 3000MHz	119.0 X 69.0 X 32.0mm	pdf
1575	1575MHz	MBP-C1575_100MS-A	Band Pass Filter	Connectorized	50Ohm	100MHz	0.8dB	15dB	60dB min @ 1372.5MHz 50dB min @ 1448.8MHz 40dB min @ 1494.5MHz 40dB min @ 1657.5MHz 50dB min @ 1706.2MHz 60dB min @ 1787.5MHz 60dB min @ 3050 ~ 8125MHz	120.0 X 53.0 X 28.5mm	pdf
1580	1580MHz	MBP-C1580-70MS-A-R0	Band Pass Filter	Connectorized	50Ohm	70MHz	1.0dB	18dB	40dB min @ DC ~ 1320MHz 40dB min @ 1850 ~ 6000MHz	30.0 X 93.0 X 31.0mm	pdf
1585	1585MHz	MBP-C1585_52MN-A-R1	Band Pass Filter	Connectorized	50Ohm	52MHz	0.5dB	12dB	80dB min @ DC ~ 1485MHz 40dB min @ 1500MHz 3dB min @ 1550MHz 40dB min @ 1650MHz 80dB min @ 1680 ~ 6000MHz	254.0 X 318.0 X 69.0mm	pdf
1586	1586.5MHz	MBP-C1586.5_55MN-A-R0	Band Pass Filter	Connectorized	50Ohm	55MHz	0.5dB	12dB	80dB min @ DC ~ 1450MHz 40dB min @ 1500MHz 3dB min @ 1550MHz 40dB min @ 1650MHz 80dB min @ 1680 ~ 6000MHz	254.0 X 318.0 X 69.0mm	pdf
1592	1592.5MHz	MBP-C1592.5_145MS-A-R0	Band Pass Filter	Connectorized	50Ohm	145MHz	1.0dB	18dB	40dB min @ 1350MHz 40dB min @ 1800MHz	82.4 X 54.0 X 28.0mm	pdf
1595	1595MHz	MBP-C1595_70MS-A	Band Pass Filter	Connectorized	50Ohm	70MHz	1.0dB	15dB	60dB min @ 1404MHz 50dB min @ 1482MHz 40dB min @ 1494.5MHz 40dB min @ 1657.5MHz 50dB min @ 1711.5MHz 60dB min @ 1793MHz 60dB min @ 3120 ~ 8150MHz	120.0 X 53.0 X 22.0mm	pdf
1622	1622.5MHz	MBP-C1622.5BP15M	Band Pass Filter	Connectorized	50Ohm	15MHz	0.75dB	18dB	65dB min @ 915MHz 45dB min @ 1575MHz 45dB min @ 1800MHz	49.5 X 40.0 X 30.0mm	pdf
1687	1687.5MHz	MBP-C1687.5BP225A	Band Pass Filter	Connectorized	50Ohm	225MHz	0.5dB	18dB	70dB min @ 1237.5 ~ 2137.5MHz	111.0 X 29.0 X 30.0mm	pdf
1100	1100MHz	MBP-C1100_280ML-C	Band Pass Filter	Connectorized	50Ohm	280MHz	0.6dB	15dB	30dBc min @ DC ~ 750MHz 12dBc min @ DC ~ 1280MHz 30dBc min @ DC ~ 1500MHz 80dBc min @ 3000 ~ 8000MHz	130.0 X 53.0 X 17.0mm	pdf
1102	1102.5MHz	MBP-C1102.5_15MN-A-R0	Band Pass Filter	Connectorized	50Ohm	15MHz	0.8dB	15.6dB	60dB min @ DC ~ 1050MHz 17dB min @ 1090MHz 17dB min @ 1115MHz 40dB min @ 1075 & 1130MHz 60dB min @ 1200 ~ 5000MHz	230.0 X 100.0 X 44.0mm	pdf
1110	1110MHz	MBP-C1110_320MN-A-R1	Band Pass Filter	Connectorized	50Ohm	320MHz	0.5dB	16dB	80dB min @ 1.5 ~ 900MHz 80dB min @ 1300 ~ 1900MHz	220.0 X 120.0X 40.0mm	pdf
1140	1140MHz	MBP-C1140BP260S	Band Pass Filter	Connectorized	50Ohm	260MHz	1.4dB	14dB	20dB min @ 70MHz 20dB min @ 3200MHz 40dB min @ 6090MHz	71.0 X 86.0 X 34.0mm	pdf
1175	1175MHz	MBP-C1175_50MN-A-R1	Band Pass Filter	Connectorized	50Ohm	50MHz	1.0dB	18dB	100dB min @ DC ~ 1050MHz 100dB min @ 1325 ~ 3000MHz	91.0 X 60.0 X 32.0mm	pdf
1176	1176MHz	MBP-C1176BP40M	Band Pass Filter	Connectorized	50Ohm	40MHz	1.0dB	20dB	50dB min @ C.F. ±40.92MHz	99.0 X 49.0 X 37.0mm	pdf
1214	1214MHz	MBP-C1214_8MN-A-R0	Band Pass Filter	Connectorized	50Ohm	8MHz	4.5dB	15dB	30dB min @ 100 ~ 1206MHz 30dB min @ 1224 ~ 1800MHz	130.0 X 66.0 X 34.0mm	pdf
1232	1232.5MHz	MBP-C1232.5_133MN-A-R1	Band Pass Filter	Connectorized	50Ohm	133MHz	0.5dB	12dB	80dB min @ DC ~ 1144MHz 40dB min @ 1155MHz 3dB min @ 1160MHz 3dB min @ 1305MHz 40dB min @ 1355MHz 73dB min @ 1365 ~ 6000MHz	254.0 X 416.0 X 70.0mm	pdf
1232	1232.5MHz	MBP-C1232.5-155MS-A-R0	Band Pass Filter	Connectorized	50Ohm	155MHz	1.0dB	18dB	40dB min @ DC ~ 990MHz 40dB min @ 1500 ~ 6000MHz	34.0 X 138.0 X 32.0mm	pdf
1232	1232MHz / 1584MHz	MBP-C1232-C1584_136_51MS-A	Diplexer	Connectorized	50Ohm	136MHz / 51MHz	1.0dB	14dB	70dB min @ 600 ~ 800 MHz 65dB min @ 800 ~ 1000MHz 65dB min @ 1900 ~ 2000MHz 70dB min @ 2000 ~ 3100MHz	60.0 X 60.0 X 30.0mm	pdf
1241	1241MHz	MBP-C1241_15MT-A-R1	Band Pass Filter	Connectorized	50Ohm	15MHz	2.5dB	15dB	10dB min @ 10 ~ 1100MHz 15dB min @ 1100 ~ 1218MHz 10dB min @ 1218 ~ 1231MHz 10dB min @ 1251 ~ 1794MHz	285.0 X 40.0 X 41.0mm	pdf
1262	1262.5MHz	MBP-C1262.5-375MS-A-R0	Band Pass Filter	Connectorized	50Ohm	375MHz	3.0dB	14dB	40dB min @ (f<1050MHz) 40dB min @ (1475MHz	155.0 X 45.0 X 35.0mm	pdf
1275	1275MHz	MBP-C1275_150MS-A-R0	Band Pass Filter	Connectorized	50Ohm	150MHz	1.2dB	15dB	60dB min @ 10 ~ 1100MHz 60dB min @ 1550 ~ 6000MHz	31.0 X 192.0 X 35.0mm	pdf
1275	1275MHz	MBP-C1275BP50M	Band Pass Filter	Connectorized	50Ohm	50MHz	1.0dB	18dB	70dBc min @ DC ~ 1100MHz 70dBc min @ 1500 ~ 5000MHz 50dBc min @ 5000 ~ 10000MHz	107.0 X 44.0 X 38.0mm	pdf
1300	1300MHz	MBP-C1300-200MS-A-R1	Band Pass Filter	Connectorized	50Ohm	200MHz	1.4dB	15dB	75dB min @ 1090MHz 48dB min @ 1130MHz 80dB min @ 1570MHz 80dB min @ 1610MHz	78.0 X 90.0 X 47.0mm	pdf
1330	1330MHz	MBP-C1330_60MS-A-R0	Band Pass Filter	Connectorized	50Ohm	60MHz	1.0dB	14dB	60dB min @ 100 ~ 1250MHz 60dB min @ 1450 ~ 5000MHz	115.0 X 62.0 X 30.0mm	pdf
1350	1350MHz	MBP-C1350_700MS-A-R0	Band Pass Filter	Connectorized	50Ohm	700MHz	1.0dB	15dB	60dB min @ DC ~ 890MHz 80dB min @ 1850MHz 70dB min @ 1830 ~ 3000MHz	108.0 X 190.0 X 49.0mm	pdf
1350	1350MHz	MBP-C1350-100MS-A-R0	Band Pass Filter	Connectorized	50Ohm	100MHz	1.0dB	15dB	50dB min @ 1000MHz 50dB min @ 1800 ~ 3000MHz	30.0 X 90.0 X 42.0mm	pdf
1365	1365MHz	MBP-C1365_670MH-A-R2	Band Pass Filter	Connectorized	50Ohm	670MHz	3.5dB	10dB	20dB min @ DC ~ 960MHz 20dB min @ 1800 ~ 6000MHz	30.0 X 60.0 X 15.0mm	pdf
1365	1365MHz	MBP-C1365_670MH-B	Band Pass Filter	Connectorized	50Ohm	670MHz	3.5dB	12dB	20dB min @ DC ~ 960MHz 20dB min @ 1800 ~ 6000MHz	30.0 X 60.0 X 15.0mm	pdf
922	922.5MHz	MBP-C922.5_75MS-A-R0	Band Pass Filter	Connectorized	50Ohm	75MHz	1.0dB	15dB	70dB min @ 10 ~ 5000MHz 20dB min @ 500 ~ 850MHz 70dB min @ 1400 ~ 2600MHz	42.0 X 162.0 X 52.0mm	pdf
926	926.5MHz	MBP-C926.5_67MN-A	Band Pass Filter	Connectorized	50Ohm	67MHz	1.5dB	15dB	40dB min @ DC ~ 880MHz 60dB min @ 1200 ~ 6000MHz	225.0 X 65.0 X 31.0mm	pdf
942	942.5MHz	MBP-C942.5_35MS-A-R0	Band Pass Filter	Connectorized	50Ohm	35MHz	0.8dB	18dB	20dB min @ DC ~ 870MHz 22dB min @ 880 ~ 915MHz	1.45 X 2.8 X 2.27inch	pdf
942	942.5MHz	MBP-C942.5_35MS-B-R0	Band Pass Filter	Connectorized	50Ohm	35MHz	0.7dB	18dB	50dB min @ 800 ~ 915MHz	2.24 X 4.46 X 1.7inch	pdf
942	942.5MHz	MBP-C942.5-5MS-A-R0	Band Pass Filter	Connectorized	50Ohm	5MHz	2.0dB	15dB	40dB min @ 100 ~ 902MHz	41.0 X 110.0 X 48.0mm	pdf
942	942.5MHz	MBP-C942.5BP35M	Band Pass Filter	Connectorized	50Ohm	35MHz	1.0dB	18dB	67dB min @ 897.5MHz 67dB min @ 987.5MHz	54.0 X 112.0 X 43.0mm	pdf
950	950MHz	MBP-C950-20MS-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	2.0dB	15dB	40dB min @ 100 ~ 902MHz	41.0 X 146.0 X 48.0mm	pdf
1030	1030MHz	MBP-C1030BP20N	Band Pass Filter	Connectorized	50Ohm	20MHz	0.4dB	20.8dB	80dB min @ 1089 ~ 1091MHz	160.0 X 90.0 x 30.0mm	pdf
1060	1060MHz	MBP-C1060_200MN-A	Band Pass Filter	Connectorized	50Ohm	200MHz	0.6dB	15dB	60dBc min @ DC ~ 760MHz 38dBc min @ 760 ~ 860MHz 40dBc min @ 1260 ~ 1360MHz 60dBc min @ 1360 ~ 4000MHz 45dBc min @ ~6500MHz	116.8 X 29.2 X 29.7mm	pdf
1060	1060MHz	MBP-C1060_200MN-B-R3	Band Pass Filter	Connectorized	50Ohm	200MHz	0.5dB	16dB	70dB min @ 3600MHz 60dB min @ 3600 ~ 10000MHz	70.0 X 240.0 X 46.0mm	pdf
1060	1060MHz	MBP-C1060_200MS-A-R0	Band Pass Filter	Connectorized	50Ohm	200MHz	0.6dB	15dB	60dBc min @ DC ~ 760MHz 38dBc min @ 760 ~ 860MHz 40dBc min @ 1260 ~ 1360MHz 60dBc min @ 1360 ~ 4000MHz 45dBc min @ ~6500MHz	116.84 X 29.2 X 29.7mm	pdf
1060	1060MHz	MBP-C1060BP75B	Band Pass Filter	Connectorized	50Ohm	75MHz	0.4dB	15dB	50dB min @ 1575MHz 70dB min @ 2120MHz 50dB min @ 3180MHz 40dB min @ 4240MHz	56.0 X 45.0 X 36.0mm	pdf
1065	1065MHz	MBP-C1065_70MH-A-R0	Band Pass Filter	Connectorized	50Ohm	70MHz	1.1dB	14dBr	55dBc min @ 820 & 1240MHz 70dBc min @ 650 & 1410MHz 70dBc min @ DC ~ 650MHz 70dBc min @ 1500 ~ 5000MHz	24.5 X 103.0 X 31.5mm	pdf
1090	1090MHz	MBP-C1090_30MN-A-R0	Band Pass Filter	Connectorized	50Ohm	30MHz	0.5dB	15dB	60dB min @ 1030±3MHz 80dB min @ 970±10MHz 80dB min @ 1330±100MHz	168.0 X 114.0 X 51.0mm	pdf
1090	1090MHz	MBP-C1090BP6S	Band Pass Filter	Connectorized	50Ohm	6MHz	0.8dB	17.7dB	50dBc min @ 1050MHz 50dBc min @ 1130MHz	170.0 X 120.0 X 30.0mm	pdf
1090	1090MHz	MBP-C1090BP250N	Band Pass Filter	Connectorized	50Ohm	250MHz	1.4dB	14dB	40dB min @ 70MHz 20dB min @ 910MHz 20dB min @ 2100MHz 40dB min @ 3200MHz 40dB min @ 6000MHz	173.0 X 82.0 X 48.0mm	pdf
1090	1090MHz	MBP-C1090BP250NA	Band Pass Filter	Connectorized	50Ohm	250MHz	1.4dB	14dB	40dB min @ 70MHz 20dB min @ 910MHz 20dB min @ 2100MHz 40dB min @ 3200MHz 40dB min @ 6000MHz	74.0 X 89.0 X 36.0mm	pdf
1090	1090MHz	MBP-C1090BP260N	Band Pass Filter	Connectorized	50Ohm	260MHz	0.5dB	18dB	30dB min @ 70MHz 20dB min @ 910MHz 20dB min @ 2100MHz 40dB min @ 3200MHz 40dB min @ 6000MHz	174.0 X 82.0 X 43.0mm	pdf
1100	1100MHz	MBP-C1100_280MB-A-R2	Band Pass Filter	Connectorized	50Ohm	280MHz	0.8dB	15dB	30dB min @ 860MHz 30dB min @ 1350MHz	60.0 X 30.0 X 14.5mm	pdf
1100	1100MHz	MBP-C1100_280ML-B	Band Pass Filter	Connectorized	50Ohm	280MHz	0.6dB	15dB	30dBc min @ DC ~ 750MHz 12dBc min @ DC ~ 1280MHz 30dBc min @ DC ~ 1500MHz 80dBc min @ 3000 ~ 3700MHz	75.0 X 50.0 X 15.0mm	pdf
780	780MHz	MBP-C780_16MN-A	Band Pass Filter	Connectorized	50Ohm	16MHz	1.5dB	15dB	60dB min @ DC ~ 733MHz 50dB min @ 794 ~ 6000MHz	100.0 X 60.0 X 63.0mm	pdf
789	789.5MHz	MBP-C789.5_63MS-A	Band Pass Filter	Connectorized	50Ohm	63MHz	2.0dB	15dB	50dB min @ DC ~ 751MHz 50dB min @ 828 ~ 6000MHz	229.0 X 93.5 X 46.5mm	pdf
814	814MHz	MBP-C814BP14N	Band Pass Filter	Connectorized	50Ohm	14MHz	1.0dB	20dB	50dB min @ 834MHz 40dB min @ 797MHz 60dB min @ 852 ~ 869MHz	160.0 X 71.0 X 55.0mm	pdf
819	819.5MHz	MBP-C819.5_51MN-A	Band Pass Filter	Connectorized	50Ohm	51MHz	1.5dB	15dB	50dB min @ DC ~ 788MHz 60dB min @ 880 ~ 6000MHz	225.0 X 80.0 X 36.0mm	pdf
843	843.5MHz	MBP-C843.5_53MN-A-R0	Band Pass Filter	Connectorized	50Ohm	53MHz	1.5dB	16dB	55dB min @ 773MHz 55dB min @ 896MHz	143.0 X 66.0 X 45.0mm	pdf
845	845MHz	MBP-C845_60MN-A-R0	Band Pass Filter	Connectorized	50Ohm	60MHz	1.5dB	16dB	60dB min @ 773MHz 60dB min @ 896MHz	143.0 X 39.0 X 45.0mm	pdf
850	850MHz	MBP-C850_10MN-A-R0	Band Pass Filter	Connectorized	50Ohm	10MHz	1.5dB	16dB	60dB min @ 773MHz 60dB min @ 896MHz	143.0 X 39.0 X 45.0mm	pdf
860	860MHz	MBP-C860BP30M	Band Pass Filter	Connectorized	50Ohm	30MHz	3.0dB	18dB	30dB min @ 800 ~ 840MHz 30dB min @ 880 ~ 900MHz	130.0 X 57.0 X 50.0mm	pdf
862	862.5MHz	MBP-C862.5_35MN-A	Band Pass Filter	Connectorized	50Ohm	35MHz	1.5dB	15dB	60dB min @ DC ~ 788MHz 50dB min @ 893 ~ 6000MHz	225.0 X 75.0 X 31.0mm	pdf
876	876.5MHz	MBP-C876.5_35MS-A-R0	Band Pass Filter	Connectorized	50Ohm	35MHz	1.0dB	18dB	60dB min @ DC ~ 768MHz 60dB min @ 1930 ~ 1995MHz	176.0 X 41.0 X 51.0mm	pdf
895	895.5MHz	MBP-C895.5-65MS-A-R0	Band Pass Filter	Connectorized	50Ohm	65MHz	1.0dB	15dB	40dB min @ DC ~ 470MHz 60dB min @ 1700 ~ 2700MHz	35.0 X 122.0 X 52.0mm	pdf
897	897.5MHz	MBP-C897.5_35MS-A-R1	Band Pass Filter	Connectorized	50Ohm	35MHz	1.5dB	17dB	40dB min @ 10 ~ 840MHz 50dB min @ 925 ~ 960MHz	113.28 X 56.89 X 59.06mm	pdf
897	897.5MHz	MBP-C897.5BP35M	Band Pass Filter	Connectorized	50Ohm	35MHz	1.0dB	18dB	40dB min @ 852.5MHz 40dB min @ 942.5MHz	48.0 X 86.0 X 43.0mm	pdf
898	898.5MHz	MBP-C898.5_7MS-A-R0	Band Pass Filter	Connectorized	50Ohm	7MHz	4.0dB	15.6dB	40dB min @ 10 ~ 883MHz 85dB min @ 930 ~ 2600MHz	90.0 X 90.0 X 17.0mm	pdf
899	899MHz	MBP-C899_6MS-A-R1	Band Pass Filter	Connectorized	50Ohm	6MHz	2.0dB	15dB	50dB min @ 850MHz 50dB min @ 922MHz	66.0 X 62.0 X 28.0mm	pdf
904	904MHz	MBP-C904.5BP21M	Band Pass Filter	Connectorized	50Ohm	21MHz	1.5dB	15dB	70dB min @ DC ~ 855MHz 40dB min @ 855 ~ 867MHz 55dB min @ 880 ~ 890MHz 30dB min @ 925MHz 70dB min @ 955MHz	176.53 X 66.04 X 62.5mm	pdf
910	910MHz	MBP-C910BP30M	Band Pass Filter	Connectorized	50Ohm	30MHz	3.0dB	18dB	30dB min @ 850 ~ 890MHz 30dB min @ 930 ~ 1000MHz	130.0 X 57.0 X 50.0mm	pdf
915	915.5MHz	MBP-C915.5_39MS-A-R2	Band Pass Filter	Connectorized	50Ohm	39MHz	2.0dB	18dB	50dB Typ @ 870MHz 40dB Typ @ 100MHz	64.0 X 84.0 X 49.0mm	pdf
915	915MHz	MBP-C915_26MS-A	Band Pass Filter	Connectorized	50Ohm	26MHz	0.8dB	14dB	60dB min @ 30 ~ 880MHz 60dB min @ 970 ~ 2700MHz	120.0 X 67.0 X 41.0mm	pdf
915	915MHz	MBP-C915-26MN-A-R0	Band Pass Filter	Connectorized	50Ohm	26MHz	1.0dB	15dB	95dB min @ 806 ~ 860MHz	66.0 X 102.0 X 52.0mm	pdf
634	634.5MHz	MBP-C634.5_35MS-A-R0	Band Pass Filter	Connectorized	50Ohm	35MHz	1.0dB	18dB	60dB min @ 729 ~ 768MHz 60dB min @ 859 ~ 894MHz	206.0 X 46.0 X 56.0mm	pdf
634	634.5MHz	MBP-C634.5BP35M	Band Pass Filter	Connectorized	50Ohm	35MHz	0.9dB	18dB	50dB min @ 663 ~ 698MHz	60.0 X 100.0 X 48.0mm	pdf
655	655.5MHz	MBP-C655.5_3MN-A	Band Pass Filter	Connectorized	50Ohm	3MHz	2.0dB	15dB	50dB min @ 10 ~ 638MHz 50dB min @ 664 ~ 2500MHz	143.0 X 84.0 X 41.0mm	pdf
655	655.5MHz	MBP-C655.5_3MS-A-R0	Band Pass Filter	Connectorized	50Ohm	3MHz	1.0dB	15dB	50dB min @ 10 ~ 600MHz 50dB min @ 700 ~ 2500MHz	48.0 X 126.0 X 44.0mm	pdf
655	655MHz	MBP-C655_3MS-A-R0	Band Pass Filter	Connectorized	50Ohm	3MHz	1.0dB	15dB	50dB min @ 10 ~ 600MHz 50dB min @ 664 ~ 3000MHz	128.0 X 82.0 X 37.0mm	pdf
665	665MHz	MBP-C665_30MN-A	Band Pass Filter	Connectorized	50Ohm	30MHz	1.5dB	15dB	60dB min @ DC ~ 440MHz 50dB min @ 600 ~ 6000MHz	70.0 X 60.0 X 63.0mm	pdf
666	666MHz	MBP-C666_10MC-A-R0	Band Pass Filter	Connectorized	50Ohm	10MHz	1.3dB	15dB	50dB min @ DC ~ 657MHz 30dB min @ 900 ~ 2000MHz	113.2 X 56.9 X 68.56mm	pdf
671	671MHz	MBP-C671_14MS-A-R0	Band Pass Filter	Connectorized	50Ohm	14MHz	1.0dB	15dB	60dB min @ 50 ~ 600MHz 25dB min @ 630 ~ 657MHz 60dB min @ 750 ~ 3000MHz	64.0 X 97.0 X 39.0mm	pdf
707	707.5MHz	MBP-C707.5BP17M	Band Pass Filter	Connectorized	50Ohm	17MHz	1.0dB	18dB	40dB min @ 677.5MHz 40dB min @ 737.5MHz	54.0 X 86.0 X 43.0mm	pdf
717	717MHz	MBP-C717_38MS-A-R0	Band Pass Filter	Connectorized	50Ohm	38MHz	1.5dB	16dB	50dB min @ 10 ~ 657MHz 50dB min @ 753 ~ 2500MHz	130.0 X 70.0 X 37.0mm	pdf
725	725.5MHz	MBP-C725.5_45MN-A	Band Pass Filter	Connectorized	50Ohm	45MHz	0.6dB	15dB	50dBc min @ 657MHz 50dBc min @ 758MHz	103.0 X 53.0 X 43.0mm	pdf
725	725.5MHz	MBP-C725.5BP45N	Band Pass Filter	Connectorized	50Ohm	45MHz	1.0dB	20dB	40dB min @ 693MHz 60dB min @ 758 ~ 803MHz	198.0 X 69.0 X 60.0mm	pdf
737	737.5MHz	MBP-C737.5BP17M	Band Pass Filter	Connectorized	50Ohm	17MHz	1.0dB	18dB	67dB min @ 707.5MHz 67dB min @ 767.5MHz	54.0 X 99.0 X 43.0mm	pdf
740	740MHz	MBP-C740_80MN-A	Band Pass Filter	Connectorized	50Ohm	80MHz	1.5dB	15dB	60dB min @ DC ~ 680MHz 50dB min @ 794 ~ 6000MHz	125.0 X 65.0 X 63.0mm	pdf
748	748.5MHz	MBP-C748.5_39MS-A-R0	Band Pass Filter	Connectorized	50Ohm	39MHz	1.0dB	18dB	60dB min @ DC ~ 652MHz 60dB min @ 859 ~ 894MHz	176.0 X 41.0 X 51.0mm	pdf
750	750MHz	MBP-C750-100MS-A-R0	Band Pass Filter	Connectorized	50Ohm	100MHz	1.0dB	15dB	30dB min @ 100 ~ 500MHz 50dB min @ 1500 ~ 3000MHz	42.0 X 144.0 X 50.0mm	pdf
753	753MHz	MBP-C753BP100N	Band Pass Filter	Connectorized	50Ohm	100Mhz	1.0dB	20dB	50dB min @ 693MHz 50dB min @ 813MHz	167.0 X 74.0 X 60.0mm	pdf
760	760MHz	MBP-C760BP30M	Band Pass Filter	Connectorized	50Ohm	30MHz	3.0dB	18dB	30dB min @ 700 ~ 740MHz 30dB min @ 780 ~ 800MHz	130.0 X 57.0 X 50.0mm	pdf
772	772MHz	MBP-C772_38MS-A-R0	Band Pass Filter	Connectorized	50Ohm	38MHz	1.5dB	16dB	50dB min @ 10 ~ 736MHz 50dB min @ 896 ~ 2500MHz	130.0 X 70.0 X 37.0mm	pdf
780	780.5MHz	MBP-C780.5_45MN-A	Band Pass Filter	Connectorized	50Ohm	45MHz	0.6dB	15dB	50dBc min @ 748MHz 50dBc min @ 835MHz	103.0 X 53.0 X 43.0mm	pdf
16050	16050MHz	MBP-C16.05_0.7GH-A-R1	Band Pass Filter	BEAD	50Ohm	700MHz	1.7dB	15dB	30dBc min @ DC ~ 10000MHz 40dBc min @ 10000 ~ 15000MHz 40dBc min @ 16800 ~ 20000MHz 30dBc min @ 20000 ~ 30000MHz	37.0 X 12.0 X 10.0mm	pdf
17000	17000MHz	MBP-C17.1_0.6GH-A-R1	Band Pass Filter	BEAD	50Ohm	600MHz	1.5dB	15dB	30dBc min @ DC ~ 10000MHz 38dBc min @ 10000 ~ 16300MHz 38dBc min @ 17900 ~ 20000MHz 30dBc min @ 20000 ~ 30000MHz	31.0 X 12.0 X 10.0mm	pdf
19500	19500MHz	MBP-C19.5G_4GS-A-R0	Band Pass Filter	Connectorized	50Ohm	4000MHz	1.1dB	15dB	60dB min @ DC ~ 16600MHz 40dB min @ 16600 ~ 16900MHz 40dB min @ 22150 ~ 22350MHz 60dB min @ 22350 ~ 28000MHz	16.0 X 80.0 X 9.5mm	pdf
19250	19250MHz	MBP-C19.25G_4GS-A	Band Pass Filter	Connectorized	50Ohm	4000MHz	-	15dB	-	21.0 X 72.0 X 14.0mm	pdf
20500	20500MHz	MBP-C20.5G_5GS-A	Band Pass Filter	Connectorized	50Ohm	5000MHz	1.5dB	17dB	20dBc min @ 17000MHz 20dBc min @ 21400MHz	36.0 X 24.0 X 8.0mm	pdf
21250	21250MHz	MBP-C21.25G_4GS-A	Band Pass Filter	Connectorized	50Ohm	4000MHz	1.5dB	15dB	-	17.0 x 46.0 x 10.0mm	pdf
175	175MHz	MBP-C175_5MN-A	Band Pass Filter	Connectorized	50Ohm	5MHz	2.5dB	15dB	35dB min @ 160 ~ 170MHz 10dB min @ 207.5 ~ 215MHz	87.0 X 60.0 X 45.0mm	pdf
187	187.5MHz	MBP-C187 5_30M10N-A	Band Pass Filter	Connectorized	50Ohm	30MHz	1.5dB	15dB	10dB min @ 160 ~ 170MHz 10dB min @ 207.5 ~ 215MHz	87.0 X 60.0 X 45.0mm	pdf
402	402.5MHz	MBP-C402.5_2MN-A-R0	Band Pass Filter	Connectorized	50Ohm	2MHz	1.3dB	17dB	55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 396MHz 80dB min @ 418 ~ 420MHz 85dB min @ 420 ~ 450MHz 85dB min @ 450 ~ 1000MHz	200.0 X 106.5 X 56.0mm	pdf
402	402.5MHz	MBP-C402.5_2MN-C-R0	Band Pass Filter	Connectorized	50Ohm	2MHz	1.15dB	17dB	55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 396MHz 80dB min @ 418 ~ 420MHz 85dB min @ 420 ~ 450MHz 85dB min @ 450 ~ 1000MHz	240.0 X 114.5 X 56.0mm	pdf
406	406MHz	MBP-C406_6MS-A	Band Pass Filter	Connectorized	50Ohm	3MHz	1.0dB	15dB	60dB min @ 362.7MHz 50dB min @ 382.85MHz 40dB min @ 394.94MHz 40dB min @ 417.18MHz 50dB min @ 429.45MHz 60dB min @ 449.4MHz 60dB min @ 1209 ~ 1227MHz	150.0 X 60.0 X 100.0mm	pdf
419	419.25MHz	MBP-C419.25_1.5MS-A	Band Pass Filter	Connectorized	50Ohm	1.5MHz	1.0dB	15dB	60dB min @ 376.65MHz 50dB min @ 397.575MHz 40dB min @ 410.14MHz 40dB min @ 430.4MHz 50dB min @ 441MHz 60dB min @ 462MHz 60dB min @ 1255.5 ~ 1260MHz	150.0 X 60.0 X 100.0mm	pdf
419	419MHz	MBP-C419_2MN-A-R1	Band Pass Filter	Connectorized	50Ohm	2MHz	1.35dB	17dB	55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 400MHz 80dB min @ 402 ~ 412.5MHz 75dB min @ 426 ~ 450MHz 85dB min @ 450 ~ 1000MHz	270.0 X 115.0 X 65.0mm	pdf
419	419MHz	MBP-C419_2MN-C-R0	Band Pass Filter	Connectorized	50Ohm	2MHz	1.15dB	17dB	55dB min @ 20 ~ 88MHz 55dB min @ 150 ~ 204MHz 70dB min @ 220 ~ 400MHz 80dB min @ 402 ~ 404MHz 75dB min @ 426 ~ 450MHz 85dB min @ 450 ~ 1000MHz	240.0 X 114.5 X 56.0mm	pdf
433	433.92MHz	MBP-C433.9_1.74MS-A	Band Pass Filter	Connectorized	50Ohm	1.74MHz	1.2dB	14dB	65dB min @ 30 ~ 400MHz 65dB min @ 470 ~ 800MHz	108.0 X 40.0 X 76.0mm	pdf
435	435MHz	MBP-C435-70MS-A-R0	Band Pass Filter	Connectorized	50Ohm	70MHz	1.5dB	15dB	40dB min @ DC ~ 200MHz 60dB min @ 800 ~ 1500MHz	70.0 X 250.0 X 66.0mm	pdf
440	440MHz	MBP-C440_20MN-A-R0	Band Pass Filter	Connectorized	50Ohm	20MHz	1.0dB	18dB	70dB min @ 0.1 ~ 420MHz 70dB min @ 460 ~ 1500MHz	285.0 X 110.0 X 56.0mm	pdf
445	445MHz	MBP-C445-50MS-A-R0	Band Pass Filter	Connectorized	50Ohm	50MHz	1.0dB	15dB	50dBc min @ 400MHz 50dBc min @ 490MHz	197.0 X 130.0 X 33.5mm	pdf
477	477.5MHz	MBP-C477.5_25MS-A	Band Pass Filter	Connectorized	50Ohm	25MHz	2.0dB	18dB	60dB min @ DC ~ 400MHz 60dB min @ 500 ~ 520MHz	135.0 X 75.0 X 70.0mm	pdf
533	533.5MHz	MBP-C533.5_2MS-A	Band Pass Filter	Connectorized	50Ohm	2MHz	1.0dB	15dB	65dB min @ 10 ~ 300MHz 65dB min @ 664 ~ 1000MHz	148.0 X 52.0 X 41.0mm	pdf
5175	5175MHz	MBP-4.85-5.50G_650M-80W	Band Pass Filter	Connectorized	50Ohm	650MHz	0.5dB	15dB	40dBc min @ DC ~ 4650MHz 40dBc min @ 4650MHz 30dBc min @ 5700MHz 30dBc min @ 5700 ~ 12000MHz	86.0 X 16.0 X 17.0mm	pdf
435	435MHz	MBP-415-455M_40M	Band Pass Filter	Connectorized	50Ohm	40MHz	0.3dB	15dB	40dB min @ DC ~ 350MHz 20dB min @ 400MHz 20dB min @ 470MHz 40dB min @ 500 ~ 15000MHz	155.0 X 239.0 x 73.0mm	pdf
665	665MHz	MBP-630-700M_70MN-A	Band Pass Filter	Connectorized	50Ohm	70MHz	0.5dB	10dB	60dB min @ DC ~ 500MHz 50dB min @ 500 ~ 570MHz 25dB min @ 570 ~ 600MHz 25dB min @ 730 ~ 760MHz 50dB min @ 760 ~ 830MHz 60dB min @ 830 ~ 1300MHz	80.0 X 120.0 X 50.0mm	pdf
665	665MHz	MBP-630-700M_70MN-B	Band Pass Filter	Connectorized	50Ohm	70MHz	0.5dB	10dB	60dB min @ DC ~ 500MHz 50dB min @ 500 ~ 570MHz 25dB min @ 570 ~ 600MHz 25dB min @ 730 ~ 760MHz 50dB min @ 760 ~ 830MHz 60dB min @ 830 ~ 1300MHz	80.0 X 120.0 X 50.0mm	pdf
665	665MHz	MBP-630-700M_70MN-C	Band Pass Filter	Connectorized	50Ohm	70MHz	0.5dB	10dB	60dB min @ DC ~ 500MHz 50dB min @ 500 ~ 570MHz 25dB min @ 570 ~ 600MHz 25dB min @ 730 ~ 760MHz 50dB min @ 760 ~ 830MHz 60dB min @ 830 ~ 1300MHz	80.0 X 130.0 X 50.0mm	pdf
665	665MHz	MBP-630-700M_70MN-F	Band Pass Filter	Connectorized	50Ohm	70MHz	0.5dB	10dB	60dB min @ DC ~ 500MHz 50dB min @ 500 ~ 570MHz 25dB min @ 570 ~ 600MHz 25dB min @ 730 ~ 760MHz 50dB min @ 760 ~ 830MHz 60dB min @ 830 ~ 1300MHz	95.0 X 130.0 X 45.0mm	pdf
665	665MHz	MBP-630-700M_70MN-G	Band Pass Filter	Connectorized	50Ohm	60MHz	0.5dB	10dB	60dB min @ DC ~ 500MHz 50dB min @ 500 ~ 570MHz 25dB min @ 570 ~ 600MHz 25dB min @ 730 ~ 760MHz 50dB min @ 760 ~ 830MHz 60dB min @ 830 ~ 1300MHz	95.0 X 125.0 X 44.0mm	pdf
1300	1300MHz	MBP-1275-1325M_50MS	Band Pass Filter	Connectorized	50Ohm	100MHz	0.5dB	14dB	59dBc min @ 920MHz 32dBc min @ 1400MHz	74.0 X 49.0 X 21.0mm	pdf
2050	2050MHz	MBP-2000-2100M_100MS-A	Band Pass Filter	Connectorized	50Ohm	100MHz	1.6dB	18dB	60dB mn @ 2112 ~ 2117MHz	140.21 X 56.39 X 29.21mm	pdf
5625	5625MHz	MBP-5575-5675M_100MS	Band Pass Filter	Connectorized	50Ohm	200MHz	0.8dB	14dB	59dBc min @ 5200MHz 55dBc min @ 6200MHz	51.0 X 19.0 X 26.0mm	pdf
9378	9378MHz	MBP-9328-9428M_100MS	Band Pass Filter	Connectorized	50Ohm	200MHz	1.1dB	14dB	78dBc min @ 8000MHz 78dBc min @ 11000MHz	40.0 X 20.0 X 20.0mm	pdf
2072	2072.5MHz	MBP-B2072.5-BP95M_R1	Band Pass Filter	Connectorized	50Ohm	95MHz	0.4dB	21dB	50dB min @ 1400 ~ 1850MHz 50dB min @ 2200 ~ 2400MHz	40.0 X 160.0 X 28.0mm	pdf
6750	6750MHz	MBP-C6.75G_4.5GS-A	Band Pass Filter	Connectorized	50Ohm	4500MHz	1.5dB	15dB	-	21.0 X 58.0 X 14.0mm	pdf
8000	8000MHz	MBP-C8G_1.8GS-A-R0	Band Pass Filter	Connectorized	50Ohm	1800MHz	1.3dB	15dB	80dB min @ DC ~ 6600MHz 30dB min @ 6600 ~ 6900MHz 30dB min @ 9100 ~ 9350MHz 80dB min @ 9350 ~ 17000MHz	110.0 X 16.0 X13.0mm	pdf
8000	8000MHz	MBP-C8G_3.6GS-A-R0	Band Pass Filter	Connectorized	50Ohm	3600MHz	1.0dB	15dB	80dB min @ DC ~ 5300MHz 50dB min @ 5300 ~ 5700MHz 80dB min @ 10500 ~ 14000MHz	19.0 X 110.0 X 11.0mm	pdf
10050	10050MHz	MBP-C10.05G_100MS-A-R1	Band Pass Filter	Connectorized	50Ohm	100MHz	1.4dB	15dB	70dB min @ 7600 ~ 9000MHz 80dB min @ 10300 ~ 11000MHz 70dB min @ 15000MHz	60.0 X 30.0 X 17.0mm	pdf
10700	10700MHz	MBP-C10.7G_700MS-A-R1	Band Pass Filter	Connectorized	50Ohm	700MHz	1.0dB	15dB	70dB min @ 7600 ~ 9200MHz 50dB min @ 10000 ~ 10100MHz 70dB min @ 15000MHz	81.0 X 36.0 X 16.0mm	pdf
12500	12500MHz	MBP-C12.5G_5GS-A	Band Pass Filter	Connectorized	50Ohm	5000MHz	0.6dB	17dB	20dBc min @ 9500MHz 20dBc min @ 15500MHz	50.0 X 24.6 X 9.0mm	pdf
12650	12650MHz	MBP-C12.65G_1.9GS-A-R5	Band Pass Filter	Connectorized	50Ohm	1900MHz	1.0dB	15dB	80dB min @ 50 ~ 6000MHz 50dB min @ 8000 ~ 11000MHz 35dB min @ 13700MHz 40dB min @ 13750MHz 40dB min @ 15000 ~ 19000MHz 60dB min @ 19000 ~ 20000MHz 30dB min @ 23000 ~ 25000MHz	74.0 X 40.0 X 15.0mm	pdf
13250	13250MHz	MBP-C13.25G_4GS-A	Band Pass Filter	Connectorized	50Ohm	4000MHz	1.5dB	15dB	-	17.0 X 46.0 X 11.0mm	pdf
